Front Side Turn Signal Lamp Replacement

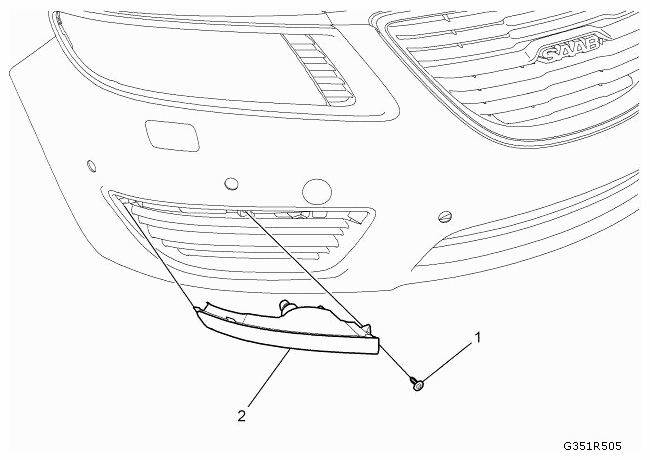

Fig 1: Identifying Front Side Turn Signal Lamp And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia upper moulding. See FRONT BUMPER FASCIA UPPER MOLDING REPLACEMENT .
1	Front Turn Signal Lamp Fastener (Qty: 1) Refer to FASTENER CAUTION .
2	Front Side Turn Signal Lamp Procedure  Detach the electrical connector.
