Hood Replacement

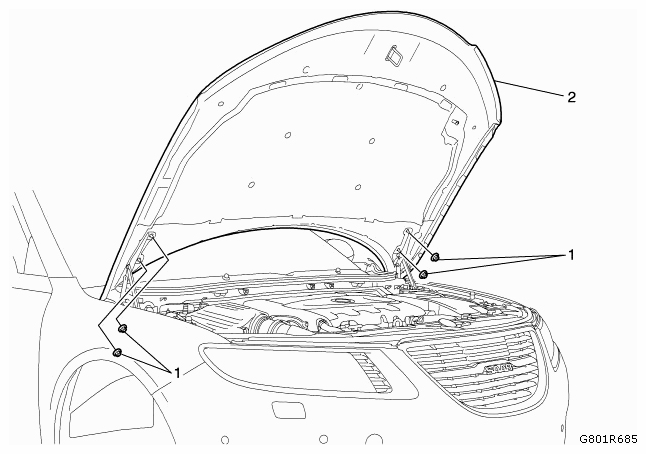

Fig 1: Disconnecting Hood Strut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure Disconnect the hood strut. Refer to HOOD STRUT REPLACEMENT
1	Hood Hinge Fastener (Qty: 4) Refer to FASTENER CAUTION . Tighten 20 Nm (15 lb ft)
2	Hood Procedure Transfer any parts as needed.
