Hood Strut Replacement

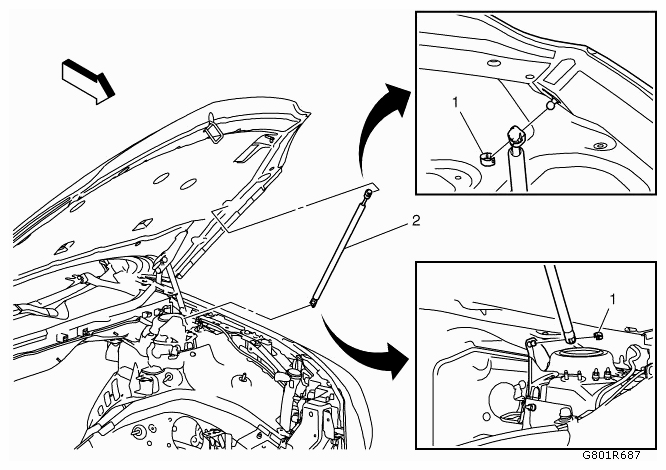

Fig 1: Removing Hood Strut Rod And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Hood Strut Retainer (Qty: 2) WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. WARNING: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Procedure Release the locking retainer on the strut. Ensure the clip is fully seated when the rod is reinstalled. If the retainer cannot be fully seated a new rod should be installed.
2	Hood Strut Rod

Callout

Component Name

Hood Strut Retainer (Qty: 2)

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

WARNING: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

Procedure

Release the locking retainer on the strut.
Ensure the clip is fully seated when the rod is reinstalled. If the retainer cannot be fully seated a new rod should be installed.

Hood Strut Rod
