To fit

  1. Fit the fuel level sensor to the fuel pump.

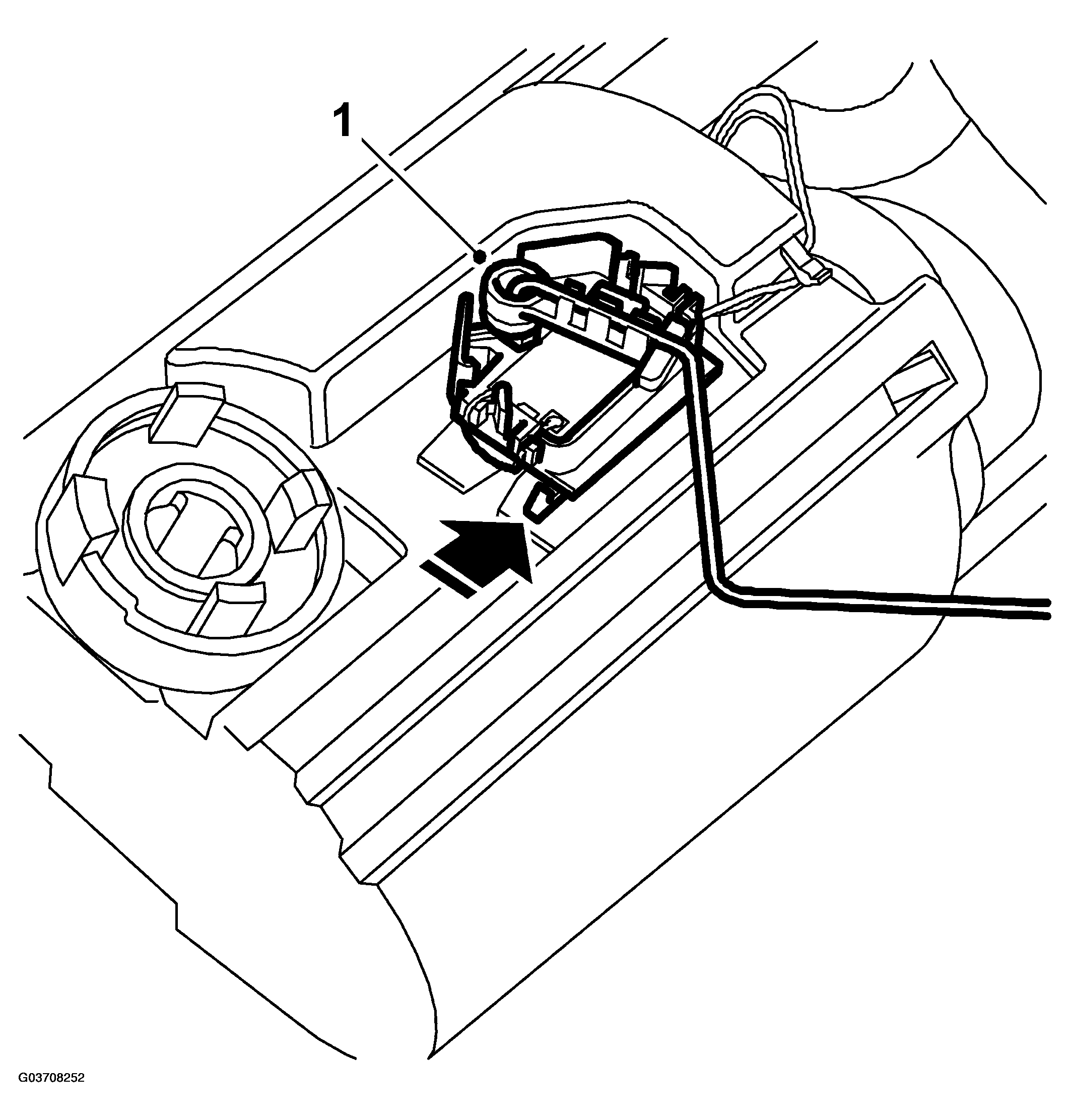

    Fig 1: Illustration For Step 1
    G03708252Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Connect the fuel level sensor cables to the connector. Pin no. 2 (grey cable) and pin no. 3 (white cable).

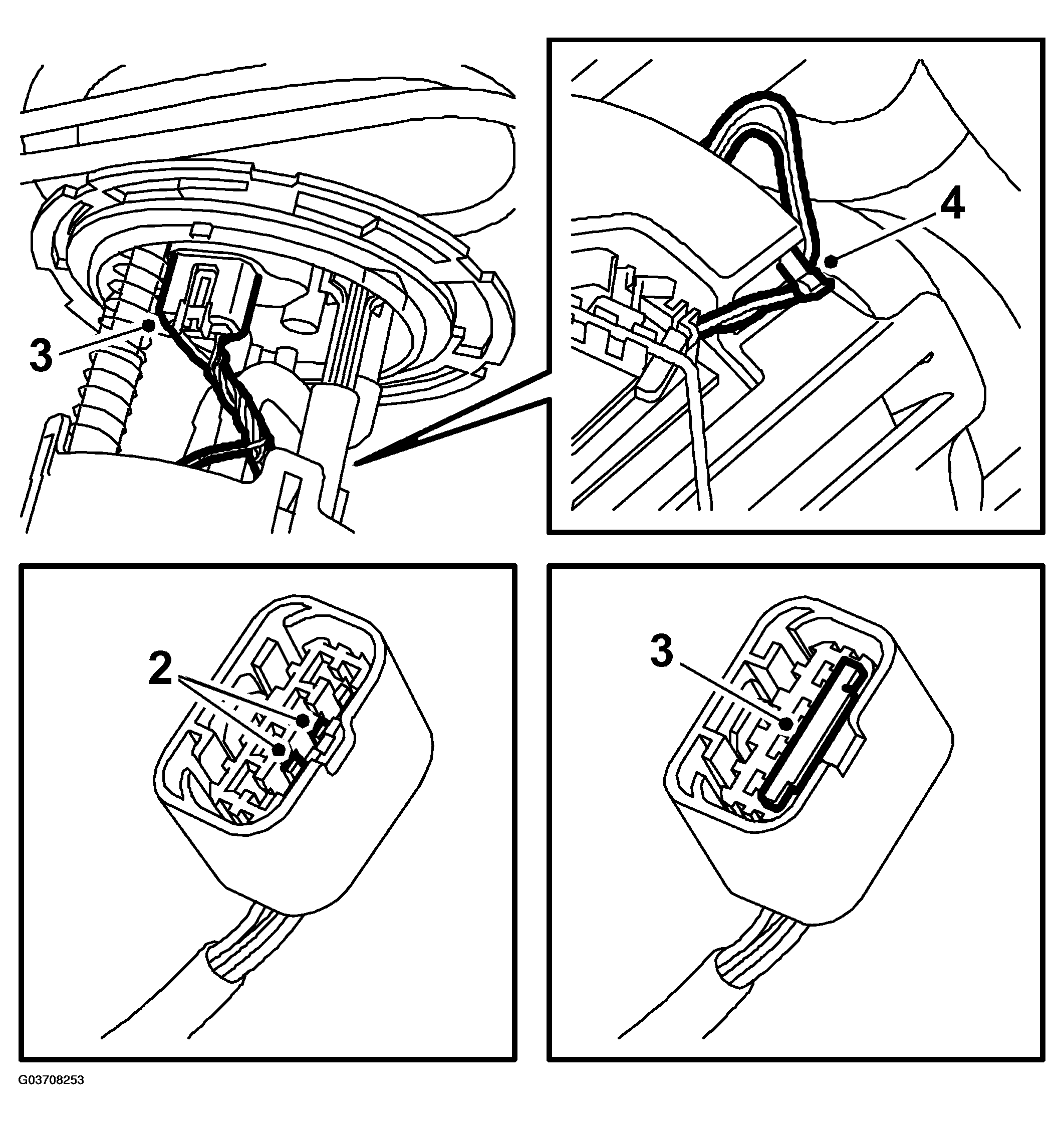

    Fig 2: Illustration For Step 2-4
    G03708253Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the cable terminal lock and plug the connector to the pump cover.
  4. Make sure the fuel level sensor cables are secure.
  5. Fit the fuel pump. See FUEL PUMP, TO FIT  .
