To fit

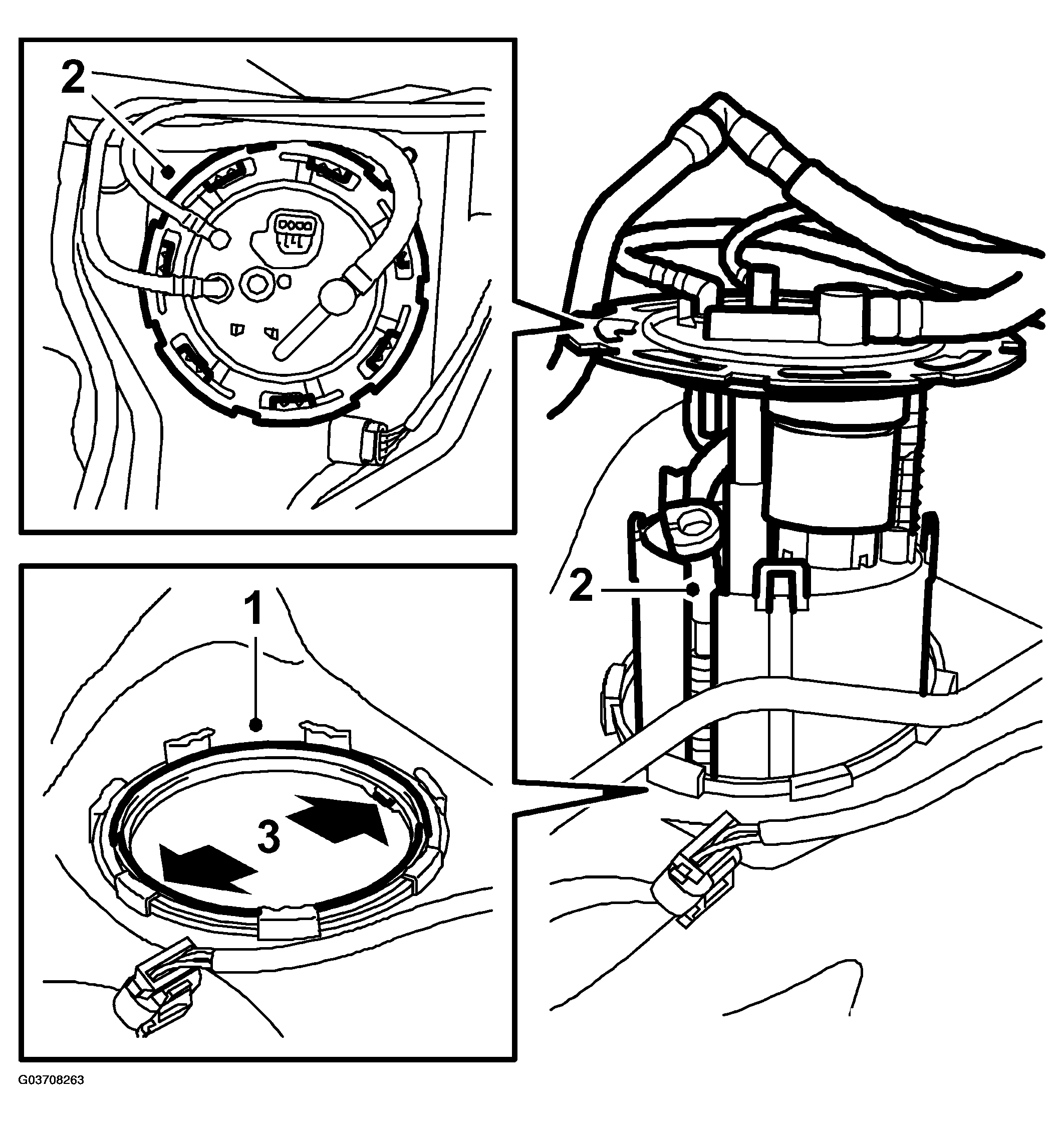

- Fit a new seal.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Lift up the ventilation hose and lower the fuel pump slightly. Secure the ventilation hose to the pump housing and connect it to the pump cover. Lower the fuel pump carefully into the tank.
- Make sure the recesses in the tank connection are in line with the corresponding heels on the pump cover.
- Make sure the seal is located correctly. Tighten the fuel pump using 83 96 194 FITTING TOOL, FUEL ARMATURE
.

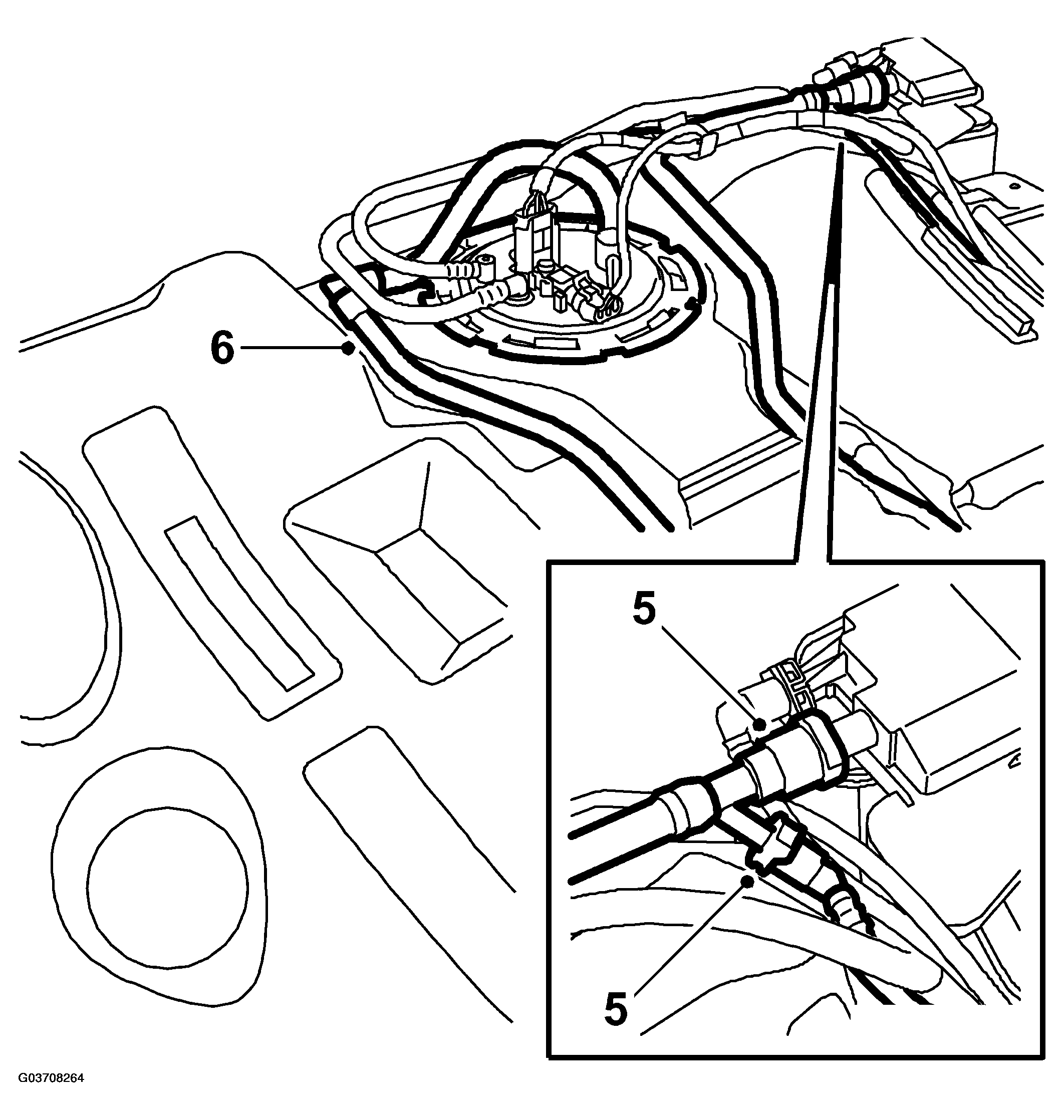

- Connect the quick-release couplings to the EVAP emission canister.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Attach the fuel lines to the fasteners on the fuel tank.
- Secure the ventilation line to the outlet in the tank.

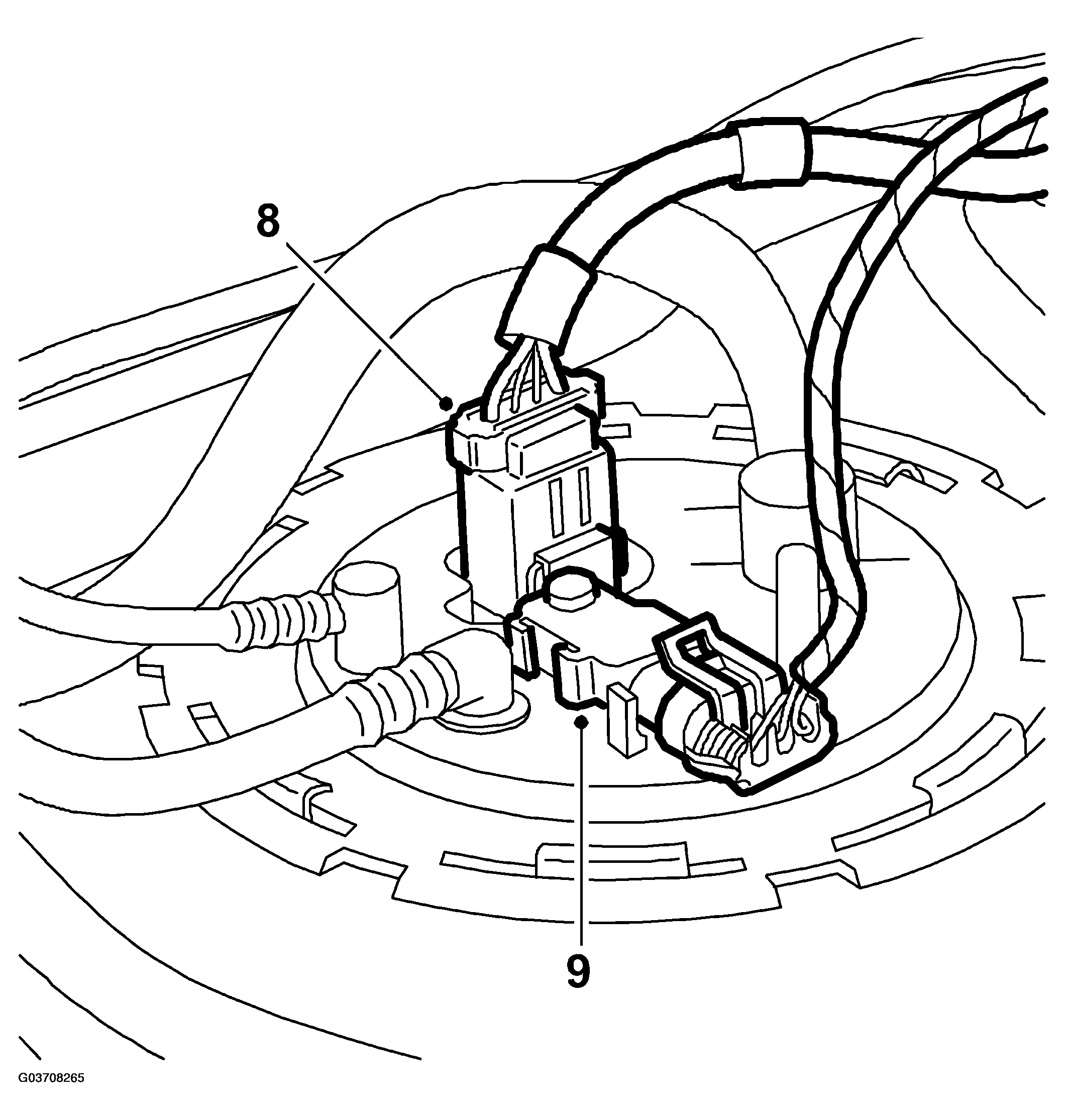

- Plug in the fuel pump connector.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- On cars with ORVR, plug in the connector to the pressure sensor.
- Fit the fuel tank. See FUEL TANK, TO FIT
.
