Control module inputs

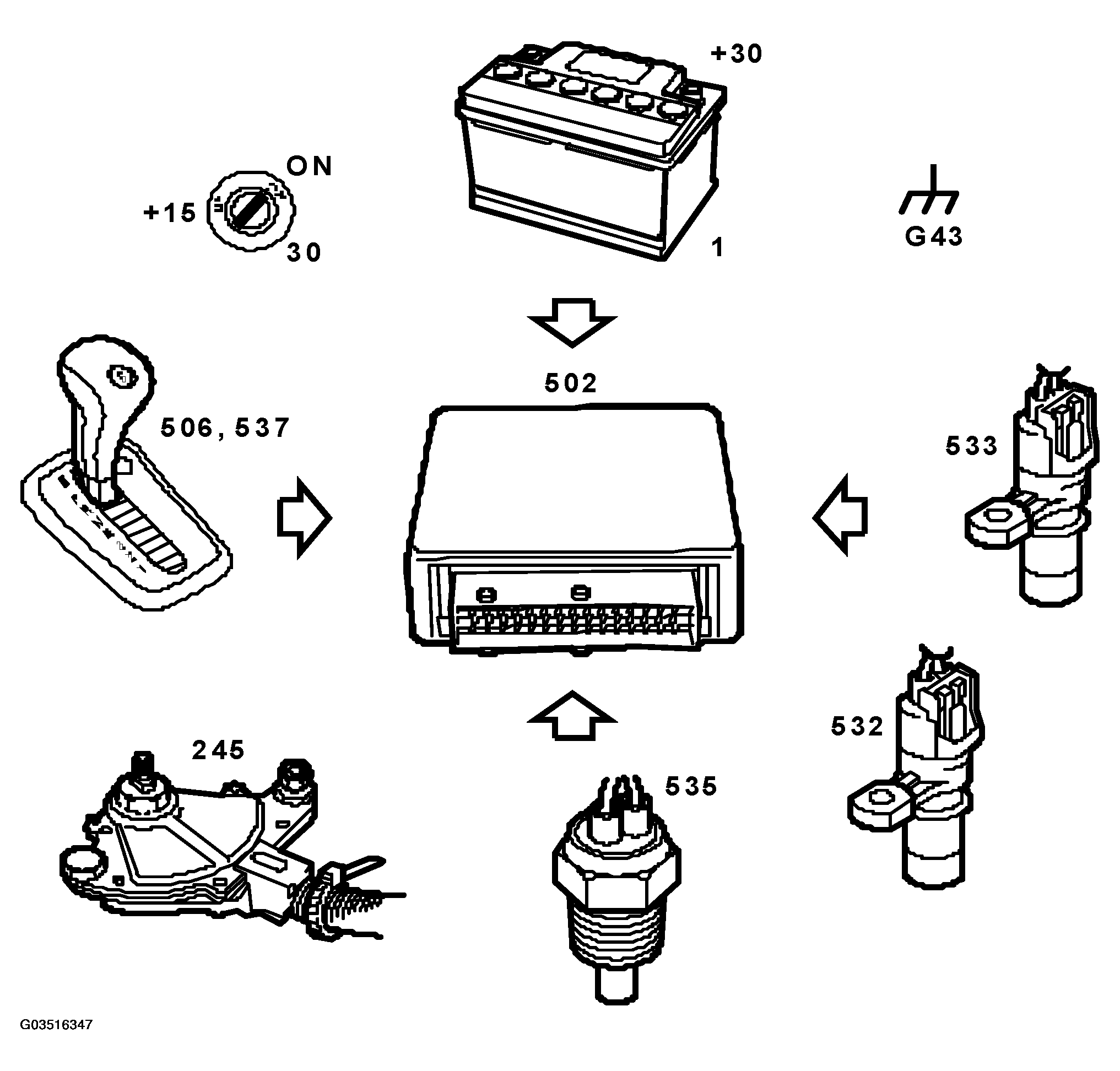

Fig 1: Identifying Control Module Inputs Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Battery voltage (+30 circuit) (1), see CONTROL MODULE POWER SUPPLY .
Battery voltage (+15 circuit) (30), see CONTROL MODULE POWER SUPPLY .
Ground (G43), see CONTROL MODULE GROUND .
Input shaft speed sensor (532), see INPUT SHAFT SPEED SENSOR .
Output shaft speed sensor (533), see OUTPUT SHAFT SPEED SENSOR .
Transmission fluid temperature sensor (535), see TRANSMISSION FLUID TEMPERATURE SENSOR .
Gear selector position sensor (245), see GEAR SELECTOR POSITION SENSOR - GEAR ENGAGED .
SPORT switch (537), see SPORT SHIFTING PROGRAM .
WINTER switch (506), see WINTER SHIFTING PROGRAM .
