TC / Abs 5.3
>>
Technical Description
>>
System overview
System overview

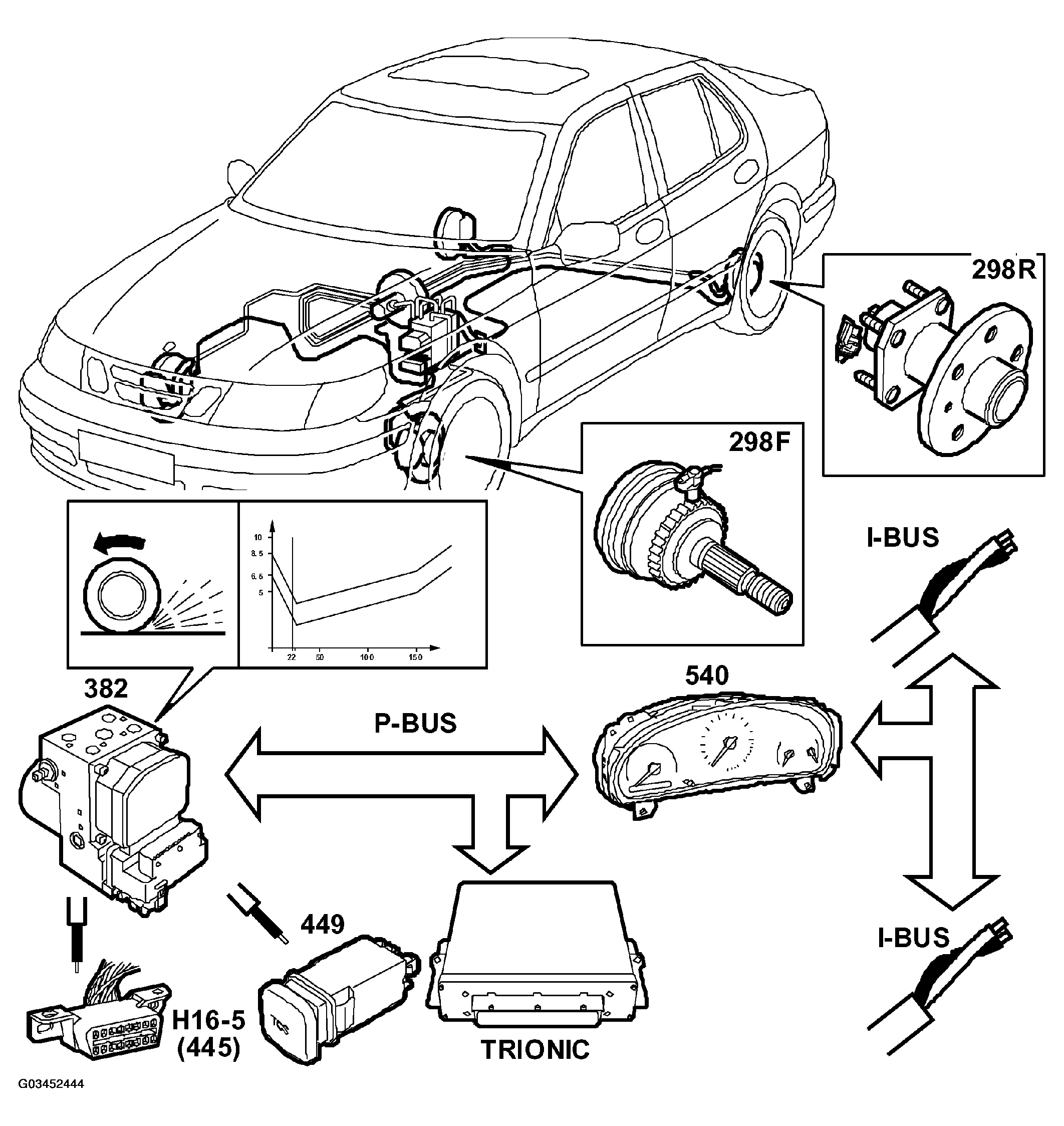

Fig 1: Identifying Brake System Overview
REAR-WHEEL SENSORS
FRONT-WHEEL SENSORS
HYDRAULIC UNIT
including
CONTROL MODULE
, valve housing and return pump (382).
Engine control module
Switch, TCS (449)
Main instrument unit, MIU (540)
DIAGNOSTICS COMMUNICATION
