Control module
CONTROL MODULE TECHNICAL DATA
| Number of terminal pins |
31 pcs. |
| Power supply +30 |
Pins 17 and 18 |
| Power supply +15 |
Pin 15 |
| Main ground (G2) |
Pin 19 |
| Ground, pump motor |
Pin 16 |
| Working voltage |
9-16 volts |
| Power consumption, rest position |
< 3 mA |

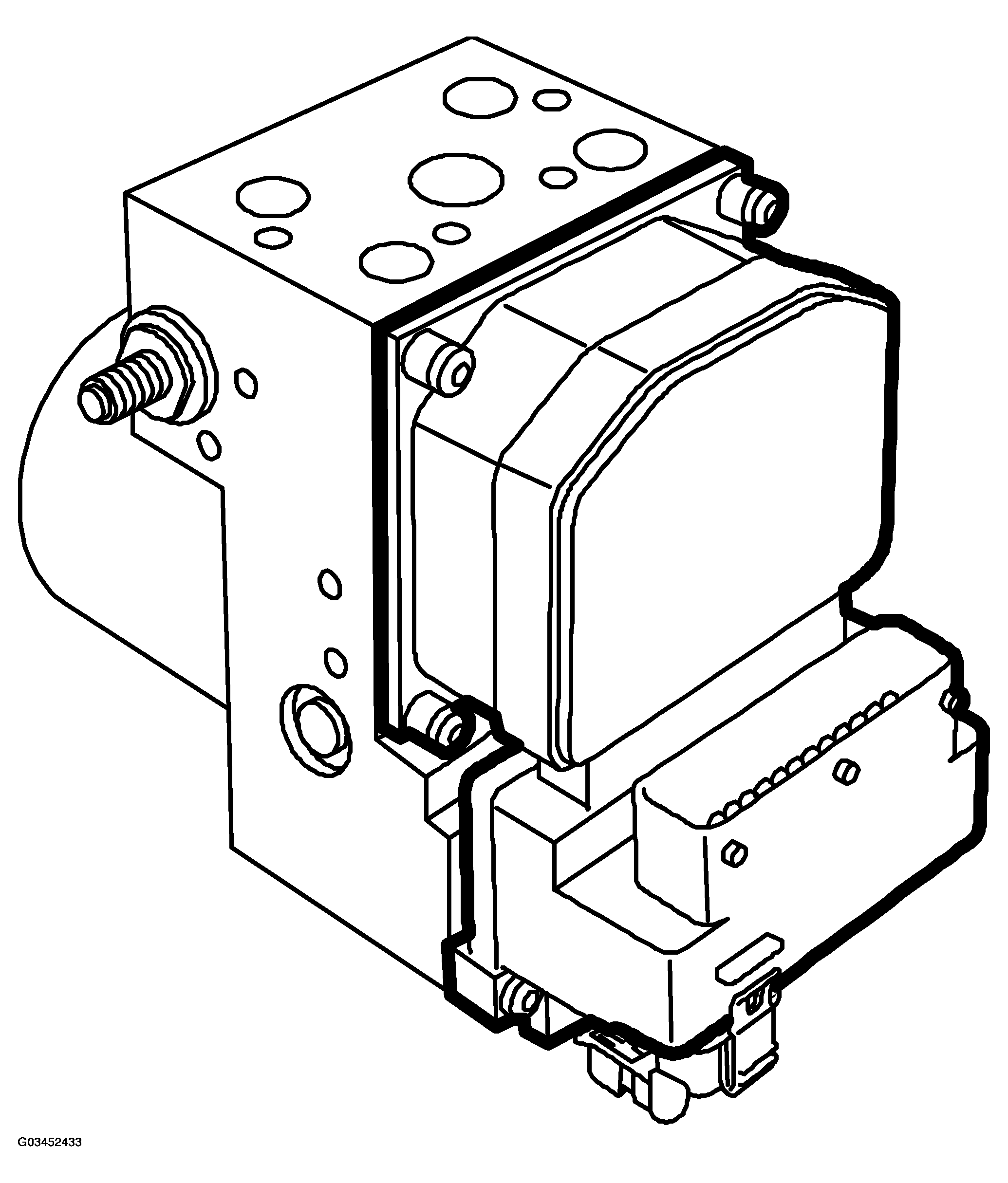

| The control module is integrated with the hydraulic unit. |
