Special Tool - Test Cable For Trans Control Module (101-9037)

Publication date: 1999-05-01
Reference number: 101-9037

SPECIAL TOOL - TEST CABLE FOR TRANS CONTROL MODULE

SPECIAL TOOL - TEST CABLE FOR TRANS CONTROL MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 101-9037, Date of Issue:  May, 1999

NEW ESSENTIAL SPECIAL TOOL: TEST CABLE FOR TRANSMISSION CONTROL MODULE

Model(s): 1999-on Saab 9-3, 9-5

Section: 1 - Tools/Maintenance

Bulletin No.: 101-9037

Date: May, 1999

CARS AFFECTED

Saab 9-5

BACKGROUND

During M1999, new transmission control module (automatic transmission) was introduced. Consequently, a new BOB test cable is available for transmission control modules on cars from model year 1999 and later. See Fig 1 .

TOOL

86 12 475 TCM BOB Cable: $150.95

This new Essential Special tool will be shipped to all dealers during May, 1999 by Kent-Moore and will be charged against your June parts statement.

Additional quantities of this tool can be ordered directly from Kent-Moore at 1-800-345-2233.

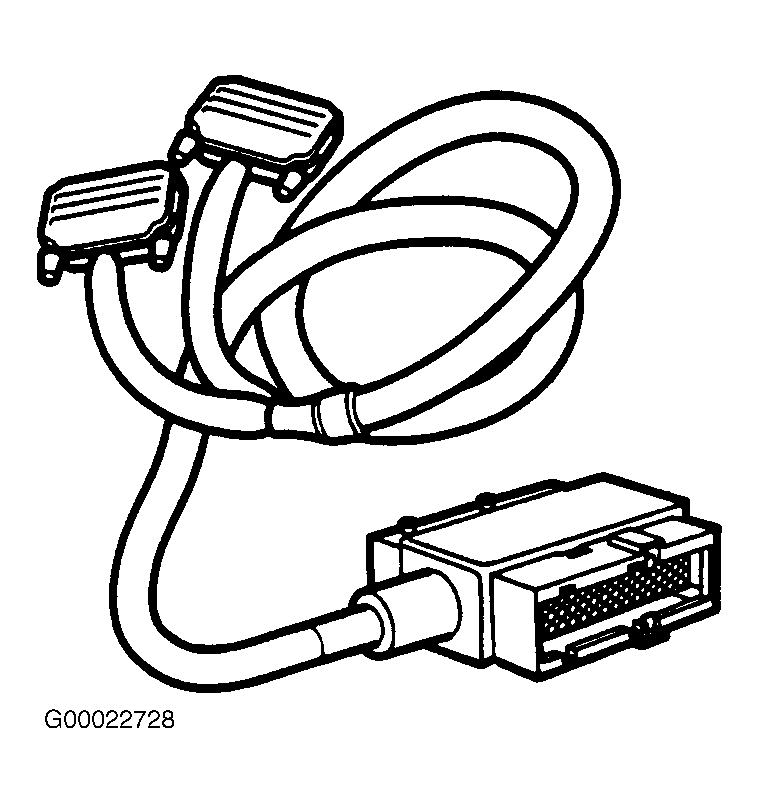

Fig 1: Test Cable For Transmission Control Module
G00022728
