Soft Top Cannot Be Operated (811-2236)

SOFT TOP CANNOT BE OPERATED

TECHNICAL SERVICE BULLETIN

SOFT TOP CANNOT BE OPERATED

Model(s): 1999-2000 Saab 9-3

Section: 8 - Body

Bulletin No.: 811-2236

Date: July, 2000

CARS AFFECTED

Saab 9-3 CV M99 - M00 up to and including VIN Y7000913.

BACKGROUND

The microswitches for the soft top cover latches can cause functional disorders and therefore have been replaced in production with microswitches of higher quality.

After customer complaint, proceed as follows.

SYMPTOM DESCRIPTION

The soft top (Fig. Fig 1 ) cannot be operated or it stops in midoperation. SID displays the message CHECK SOFT TOP and the following diagnostic trouble codes may be generated: B2025, B2026, B2030, B2031.

PARTS REQUIRED

51 84 403 Microswitch (CA: 30585716)

PROCEDURE

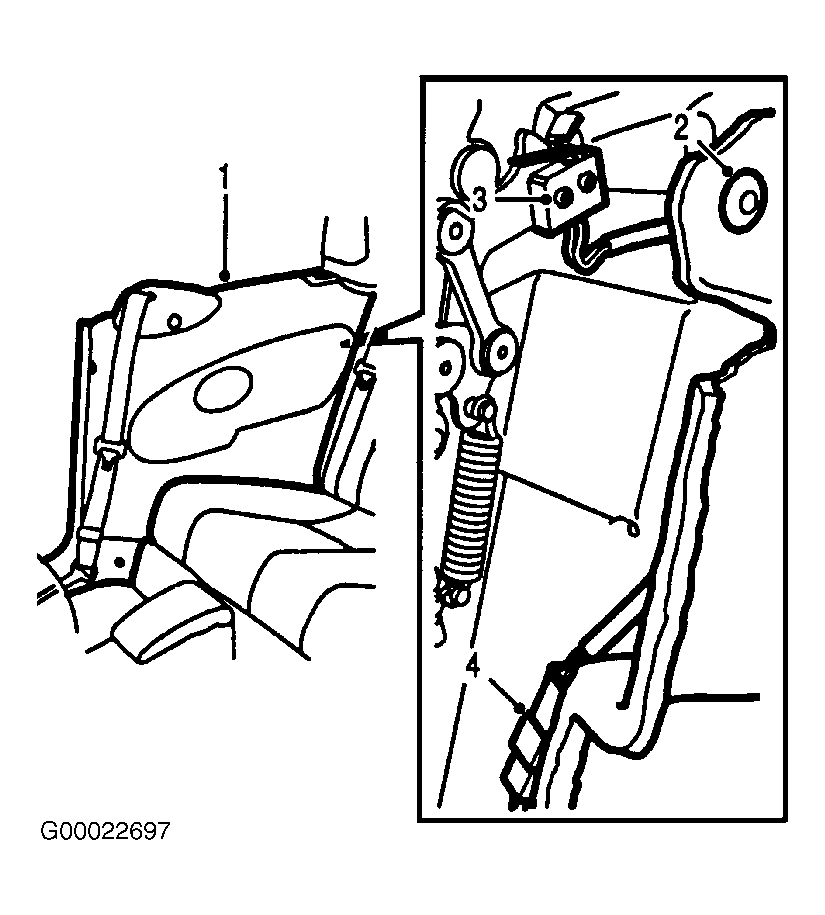

Refer to Fig. Fig 2 for steps 1 through 4.

1. Remove the rear side trim. See "Body - Convertible Adjustment/Replacement - Rear side trim".
2. Remove the clip for the rear trim and lift up the trim.
3. Remove the screws holding the microswitch.
4. Unplug the connector, remove the microswitch and remove the tape holding the wires.

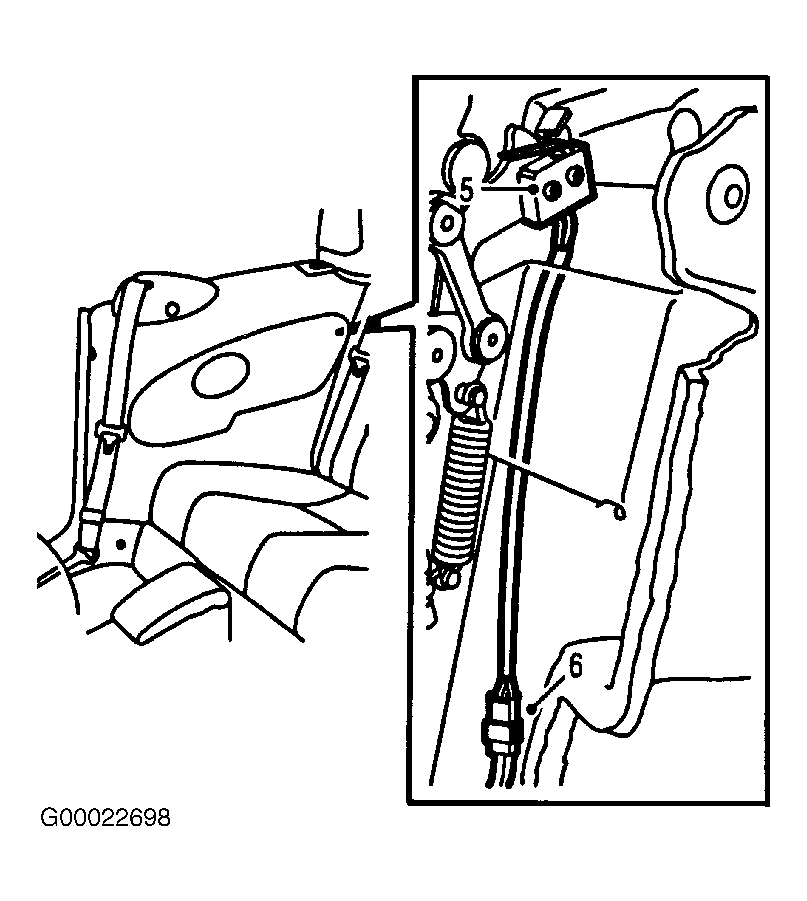

   Refer to Fig. Fig 3 for steps 5 and 6.

5. Run the cable through the bracket for the backrest catch mechanism and fit the microswitch.
   • Torque specification: 1.6 in-lbs.
     NOTE: It is important to not overtighten the screws. Overtightening can cause internal damage to the switch.
6. Plug in the connector.

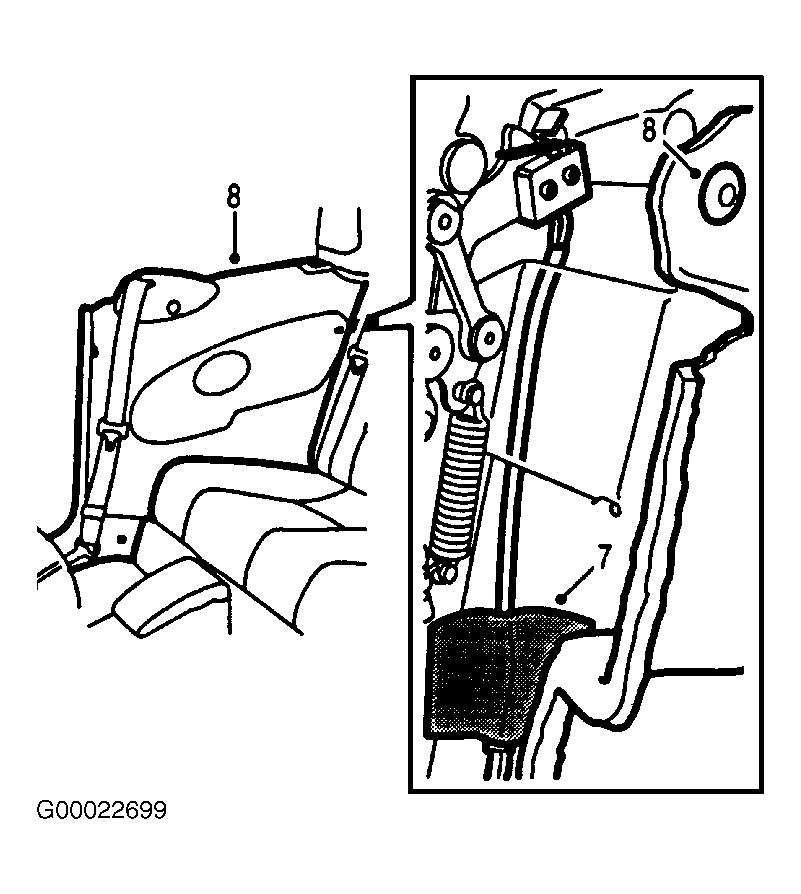

   Refer to Fig. Fig 4 for steps 7 and 8.

7. Install cloth tape to secure the wires to the body.
8. Fit the rear trim and the rear side trim. See "Body Convertible - Adjustment/Replacement - Rear side trim".
9. Connect the diagnostic tool and erase any diagnostic trouble codes.
10. Cycle the top several times. Check for correction operation.

TIME/WARRANTY INFORMATION

To resolve a customer complaint for a vehicle in warranty, submit a claim using the following information:

Failed object: 36464

Fault/Reason code: 72

Location code: 09 (US = 9)

Warranty type (US): 01

Repair/Action code: 01

Labor operation (US): 36464 (CA:N3291)

Time: 0.5 hrs.
