Installing AWS control unit

1. Switch off ignition and remove ignition key.

Position support for AWS control unit if necessary.

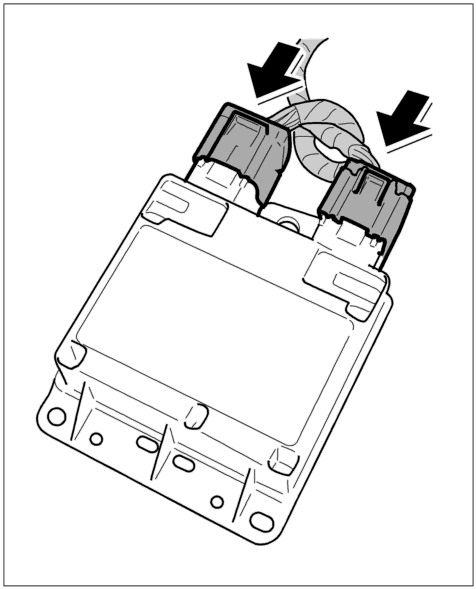

Fig 1: Plugging in electric connectors

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Connect the two electric connectors to the control unit until they are felt to engage.

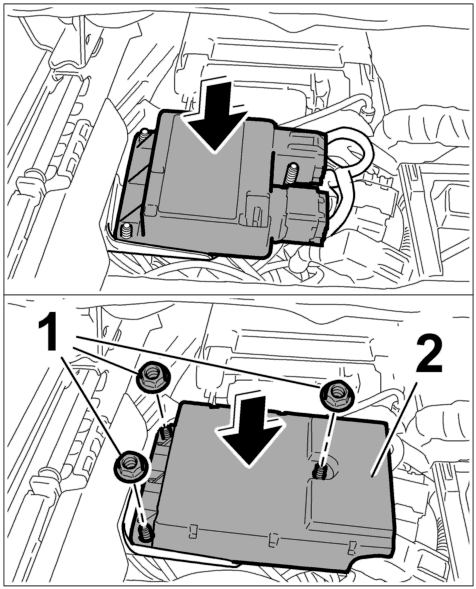

Fig 2: Screwing down cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Place AWS control unit on the support, position cover -2-  and screw down with the three fastening nuts -1-  . See Fig 2.
