Installing multi-function control unit

NOTE: The control unit is removed and, if necessary, replaced without reading, writing or coding the data with the PIWIS Tester. This procedure is not required at present.

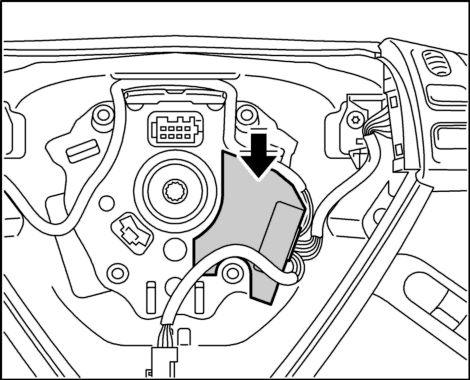

Fig 1: Clipping multi-function control unit into steering wheel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Attach electric plug connection to multi-function control unit until the plug clicks into place.

2. Clip multi-function control unit into steering wheel. Check that it is secure.

NOTE: When removing the locking plate, take note of how many washers are used on each fastening screw.

During installation make sure that the washers are fitted in the same way as they were before removal.

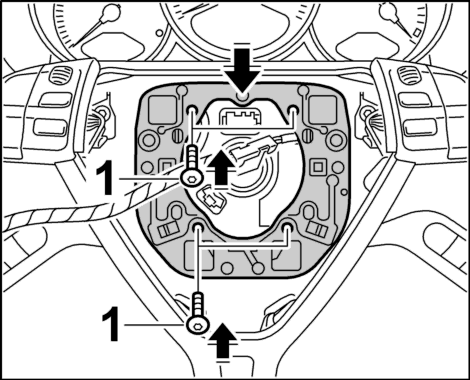

Fig 2: Screwing down locking plate

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Position locking plate on steering wheel and screw down using the four fastening screws -1- and the washers. → Tightening torque: 4.5 ftlb. See Fig 2.
