Removing AWS control unit

Installation Location:

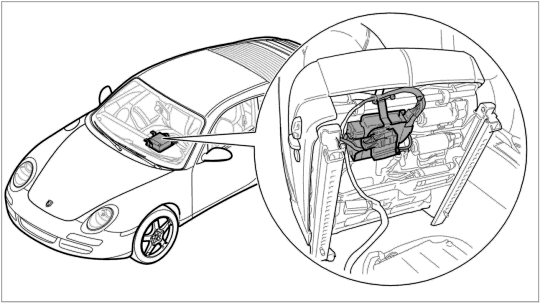

Fig 1: Installation position shown on the 911

Courtesy of PORSCHE OF NORTH AMERICA, INC.

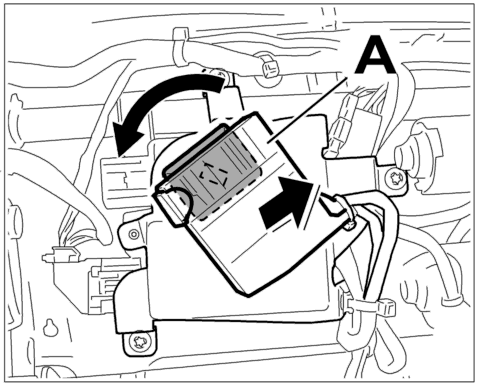

Fig 2: Loosening seat central connector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Turn seat central connector -A-  at AWS holder to the left and remove from the holder. See Fig 2.

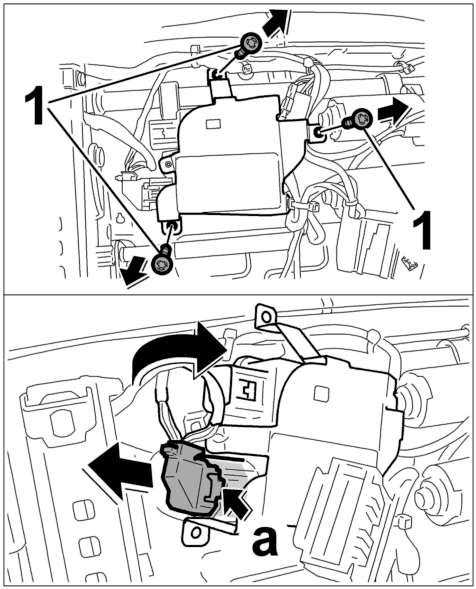

Fig 3: Fastening screws for AWS holder

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Unscrew the three fastening screws -1-  for the AWS holder on the seat bracket. See Fig 3.

3. Release electric connector on AWS control unit -a-  , unplug and tilt the AWS holder to the right side. See Fig 3.

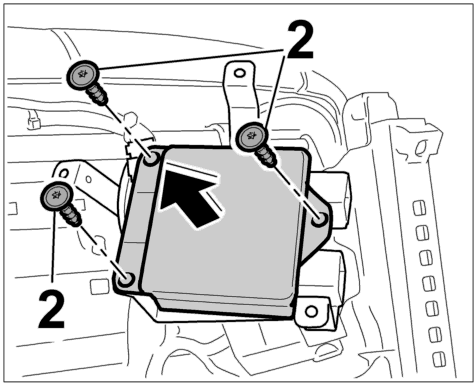

Fig 4: Unscrewing fastening screws for AWS control unit.

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Unscrew the three fastening screws -2-  of the AWS control unit and remove the control unit. See Fig 4.
