Installation Procedure

Clean the lower column shaft splines.
Ensure the upper jacket shaft splines are clean and free of debris.
Use the supplied grease to apply 2 grams (0.07 ounces) of grease to the column shaft splines.
Ensure that the steering wheel alignment notch is in the 12 o'clock position.

CAUTION: Refer to Fastener Caution .

Install the jacket to the column housing and tighten the bolts to 11 N.m (97 lb in).

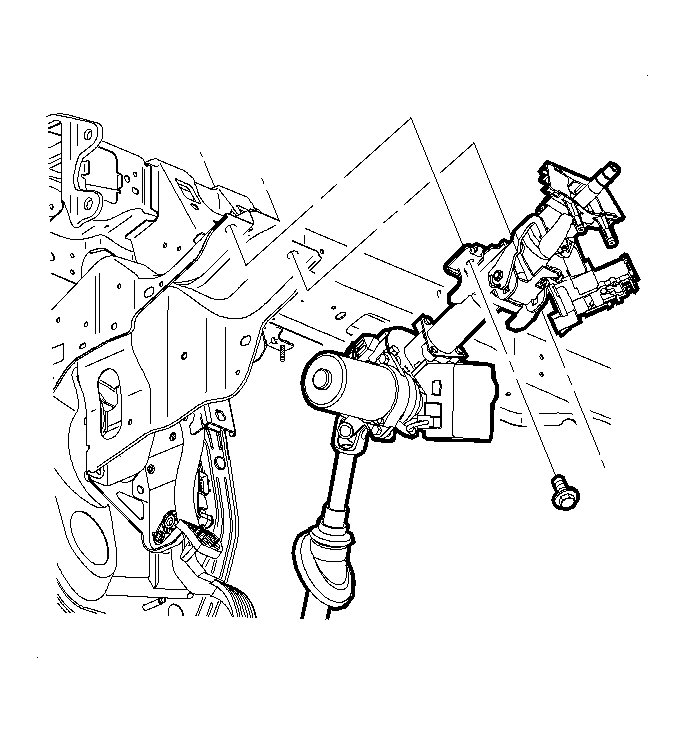

Fig 1: View Of Steering Column & Attachment Bolts

Courtesy of GENERAL MOTORS CORP.

Install the upper column attachment bolts and tighten to 25 N.m (18 lb ft).
Install the left closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
Install the knee bolster. Refer to Knee Bolster Replacement .
Install the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement .
Install the multifunction turn signal switch housing. Refer to Multifunction Turn Signal Switch Housing Replacement
Install the SIR coil. Refer to Steering Wheel Inflatable Restraint Module Coil Replacement .
Install the column trim covers. Refer to Steering Column Trim Cover Replacement .
Install the steering wheel. Refer to Steering Wheel Replacement .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Road test the vehicle to verify steering operation.
