Multifunction Turn Signal Switch Housing Replacement

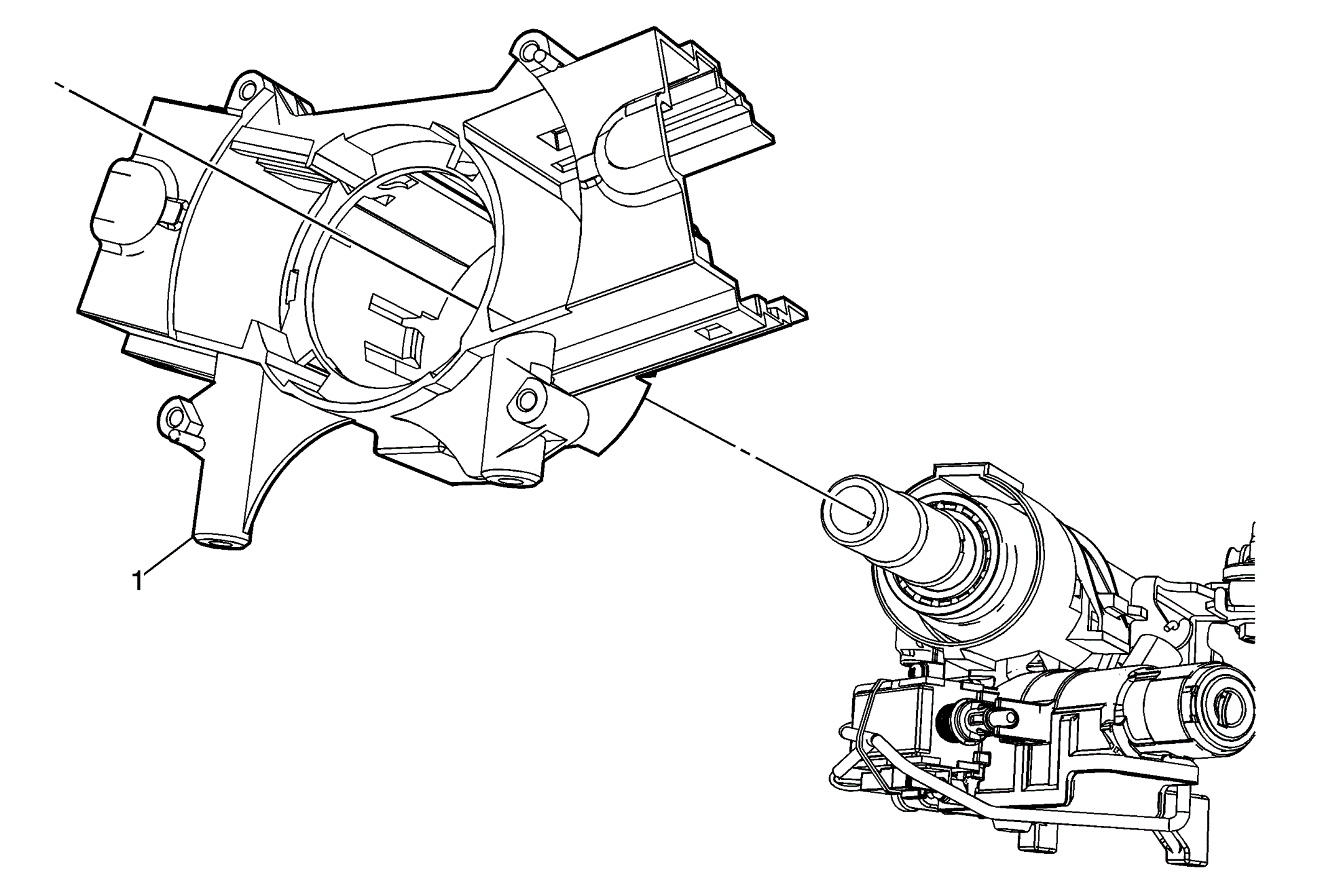

Fig 1: View Of Multifunction Turn Signal Switch Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Inflatable Restraint Module Coil Replacement . Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement . Remove the wipers/washer switch. Refer to Windshield Wiper and Washer Switch Replacement .
1	Multifunction Turn Signal Switch Housing Procedure: Release the 2 retaining tabs to remove the turn multifunction turn signal switch housing from the steering column.

Callout

Component Name

Preliminary Procedures

Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Inflatable Restraint Module Coil Replacement .
Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement .
Remove the wipers/washer switch. Refer to Windshield Wiper and Washer Switch Replacement .

Multifunction Turn Signal Switch Housing
Procedure:
Release the 2 retaining tabs to remove the turn multifunction turn signal switch housing from the steering column.
