Installation Procedure

  1. Position the power steering cooler pipe to the vehicle.
  2. Reconnect all power steering cooler pipe routing brackets to the vehicle.

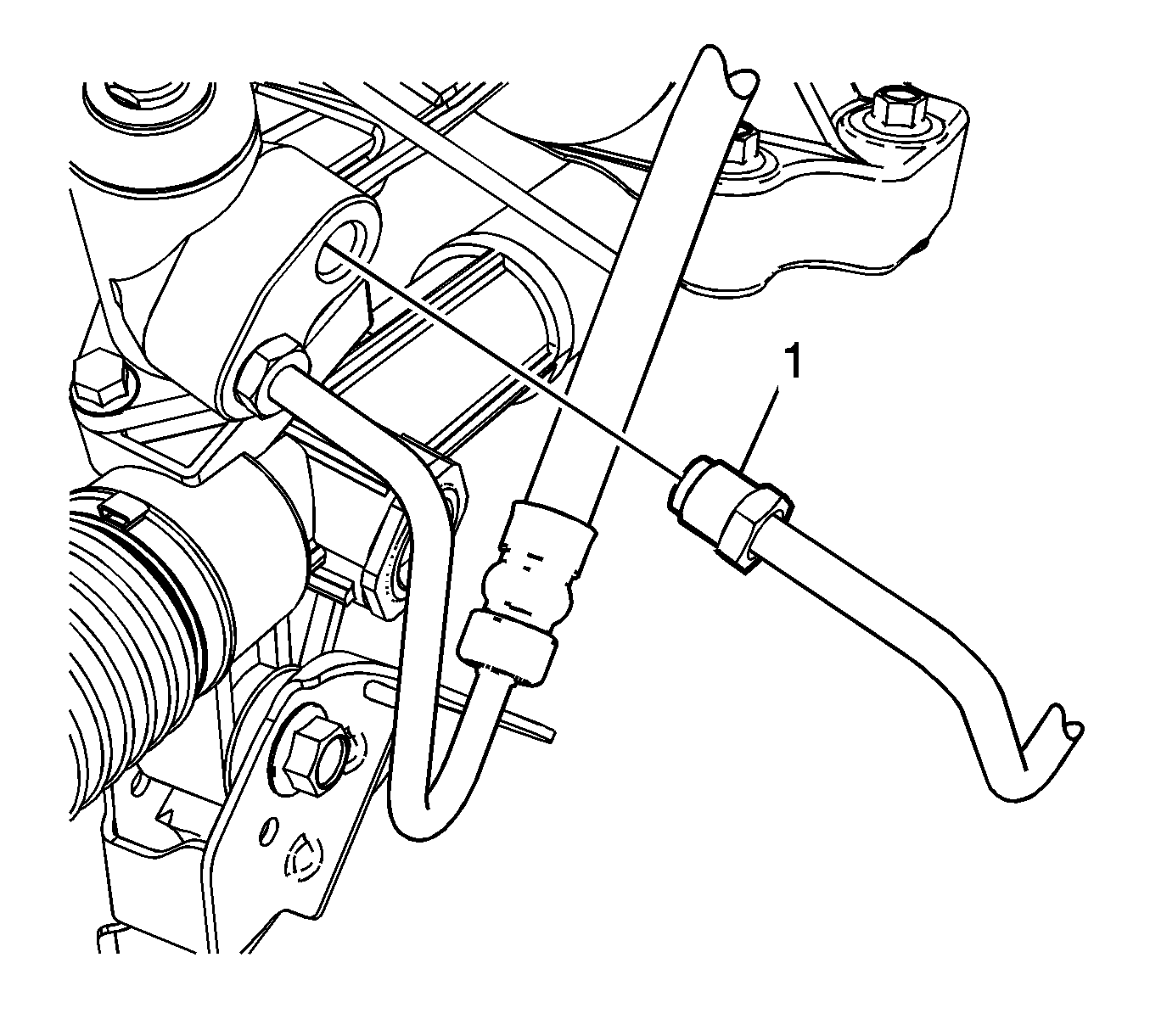

    3. Fig 1: Identifying Power Steering Cooler Pipe Fitting
    GM1820215Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Connect the power steering cooler pipe fitting (1) to the power steering gear and tighten to 25 N.m (18 lb ft).
    4. Fig 2: Identifying Power Steering Cooler Pipe & Clamp
    GM1820213Courtesy of GENERAL MOTORS CORP.
  4. Compress the power steering cooler pipe clamp (1) and connect the power steering cooler pipe (2) to the remote power steering fluid reservoir.
  5. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  6. Install the left side engine splash shield. Refer to Engine Splash Shield Replacement .
  7. Install the front tire/wheel assemblies. Refer to Tire and Wheel Removal and Installation .
  8. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  9. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  10. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
