Engine Splash Shield Replacement

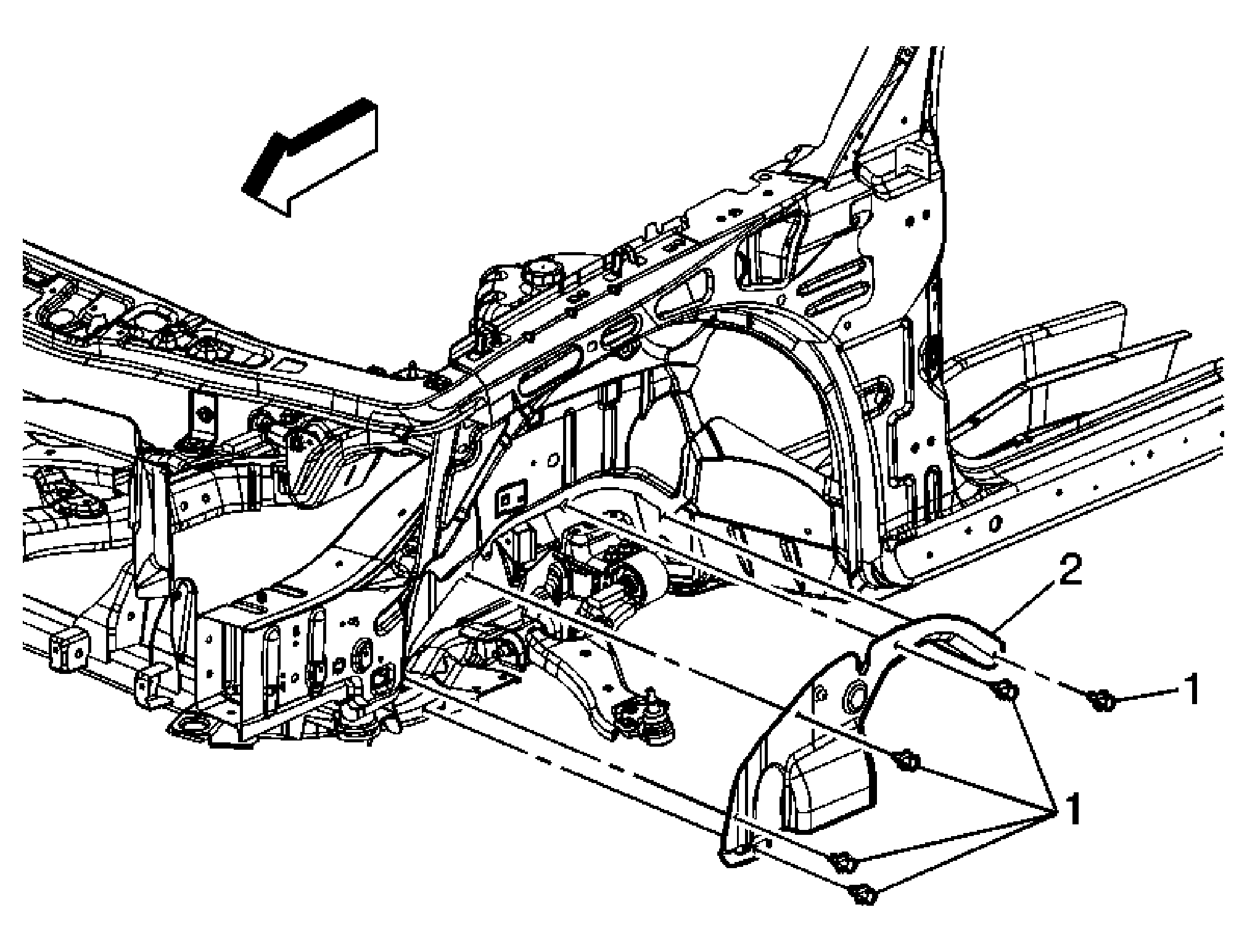

Fig 1: View Of Engine Splash Shield
GM1715260Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1 Engine Splash Shield Retainer (Qty: 5)
2 Engine Splash Shield
