Liftgate Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
  3. While supporting at point A, pull the recess in the direction of the arrow and remove it.
  4. Remove the fasteners.
  5. Pull the liftgate lower trim outward, then detach clips B and locator pins C from the liftgate.
  6. Remove the liftgate lower trim.
  7. Install in the reverse order of removal.

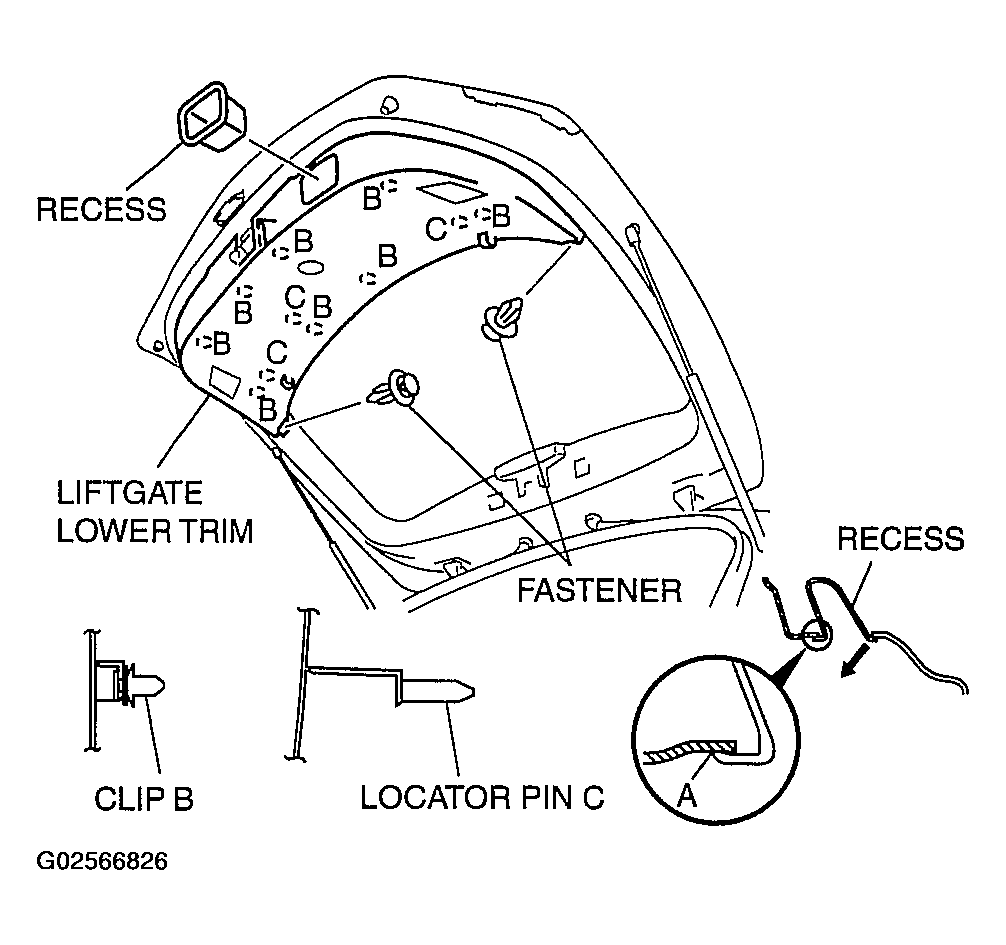

    Fig 1: Removing/Installing Liftgate Lower Trim
    G02566826Courtesy of MAZDA MOTORS CORP.
