Liftgate Side Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Pull the point A of the strap hanger as shown in the figure.
  3. Remove the strap hanger.
    Fig 1: Locating Strap Hanger
    G02566824Courtesy of MAZDA MOTORS CORP.
  4. Pull the liftgate side trim outward and detach clip A, locator pin B.
  5. Detach the tab C and remove the liftgate side trim.
  6. Install in the reverse order of removal.

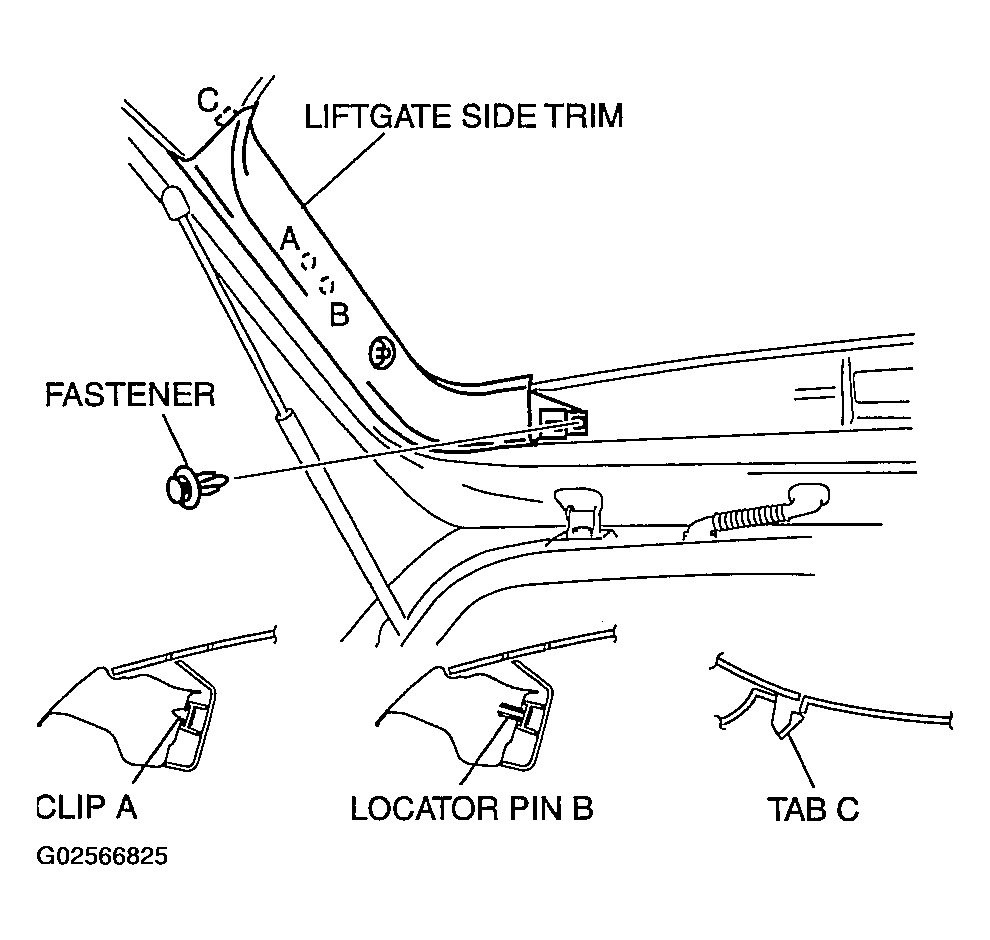

    Fig 2: Removing Liftgate Side Trim
    G02566825Courtesy of MAZDA MOTORS CORP.
