Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Automatic Transmission Control (BTSI) | Center of console. |
| Blower Motor Control Module | In right side of heater-A/C module. See Figure . |
| Body Control Module (BCM) | Behind left side of dash, left of steering column. |
| Cruise Control Module | Front of left strut tower. |

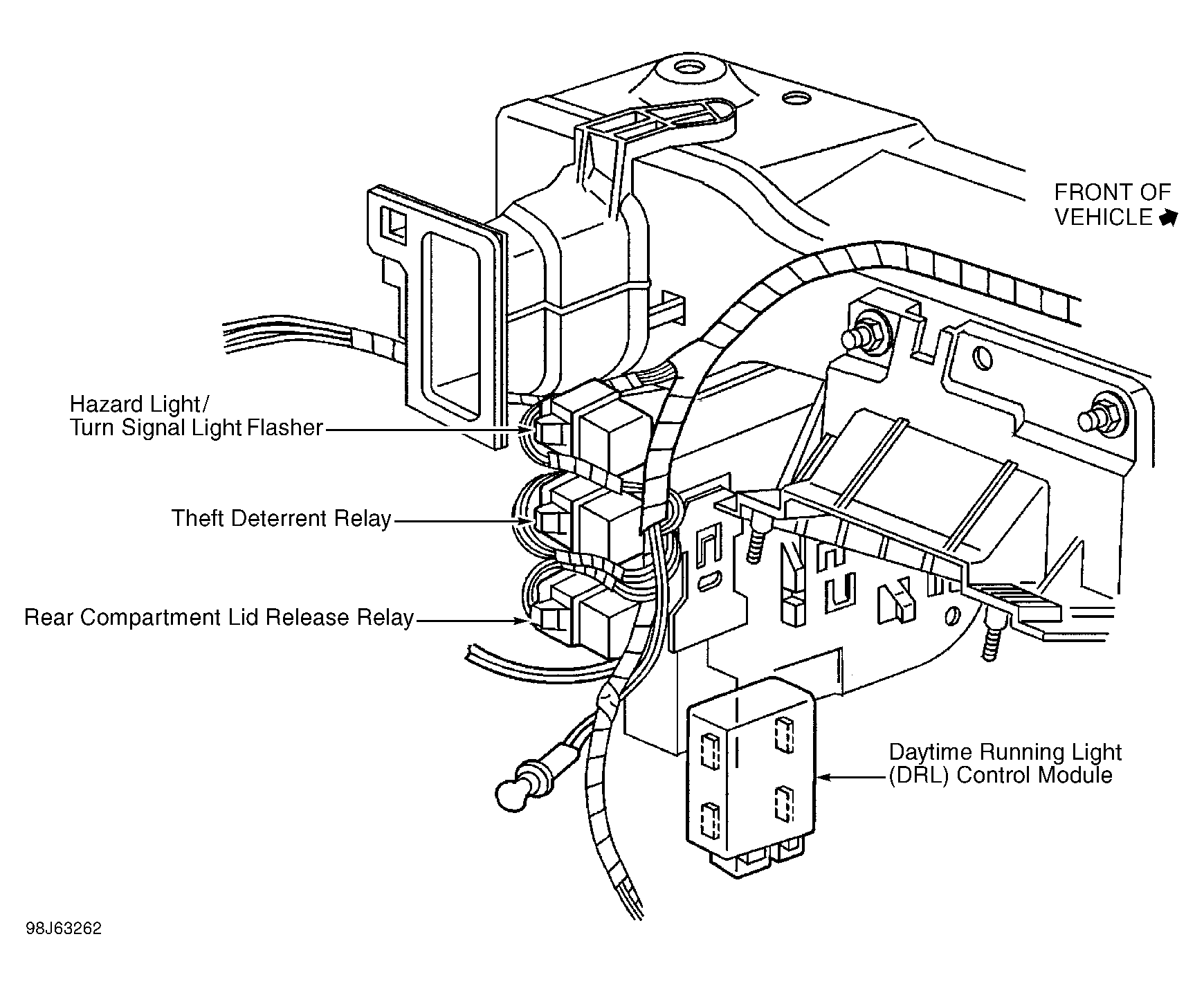

| Daytime Running Lamp (DRL) Control Module | Behind left side of dash. See Figure . |
| Driver's Seat Heater Control Module | Below right side of driver's seat, mounted on seat track. |
| Electronic Brake Traction Control Module (EBTCM) | Left side of engine, compartment, part of brake pressure modulator valve. |
| Engine Coolant Level Indicator Module | Mounted on right side of radiator. |
| Ignition Control Module (ICM) (3.1L VIN M) | Top right side of engine. See Figure . |

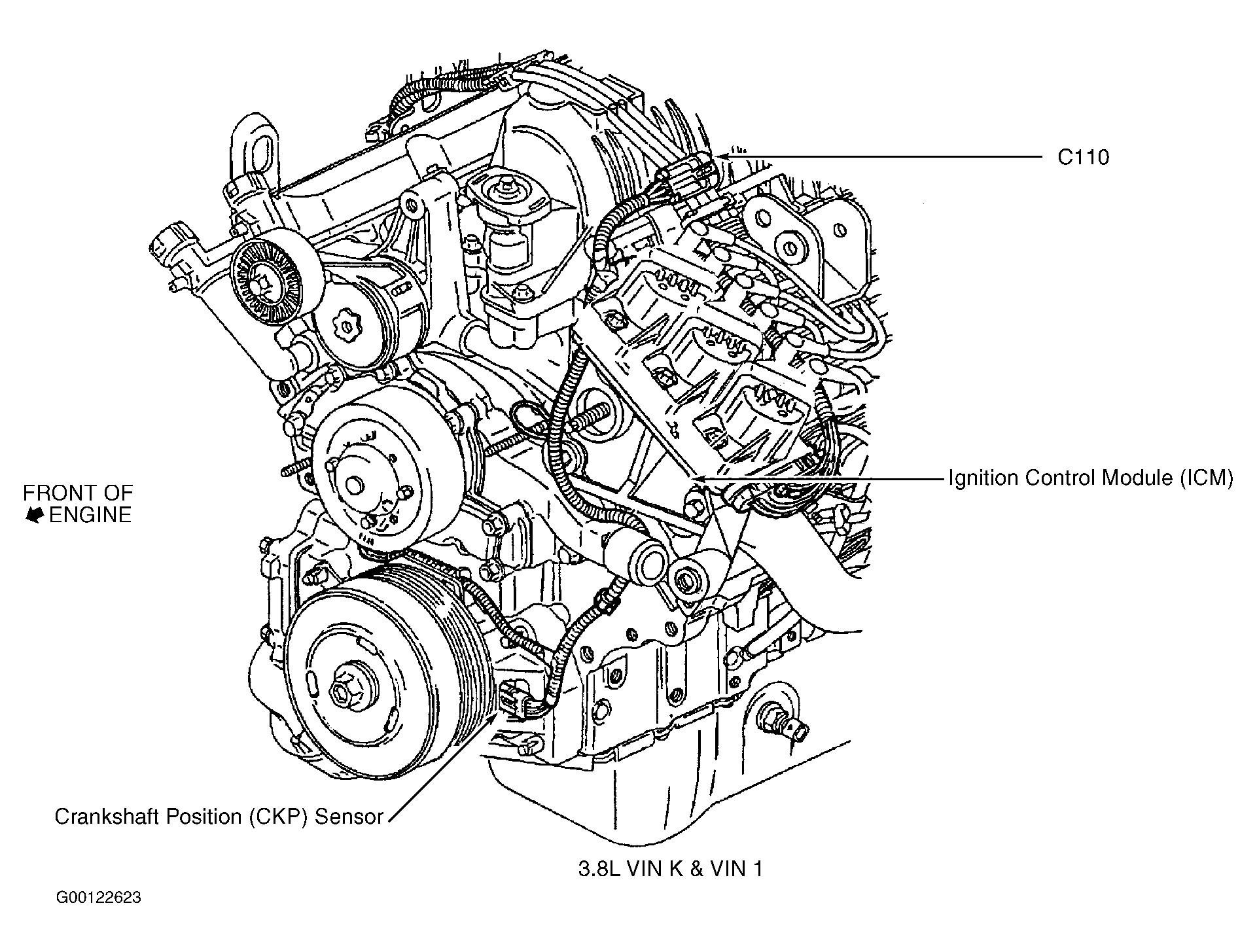

| Ignition Control Module (ICM) (3.8L VIN K) | Top left front of engine. See Figure . |
| Ignition Control Module (ICM) (3.8L VIN 1) | Top left front of engine. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below carpet, under right front seat. |
| Powertrain Control Module (PCM) | Left front side of engine compartment, in air cleaner assembly. |
| Radio Antenna Module | Above headliner, rear windshield area. |
| Remote Control Door Lock Receiver (RCDLR) | Left side of dash, behind driver's information center. |
| Seat Heater Control Module | Below right side of driver's seat. |
| Sun Roof Control Module | Front center of sun roof module. |
| Theft Deterrent Module | Part of ignition key cylinder. |
