Connector Identification
NOTE:
Circuit location may vary on some connectors.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | Figure |
|---|---|
| A/C Compressor Relay | Fig 1 |

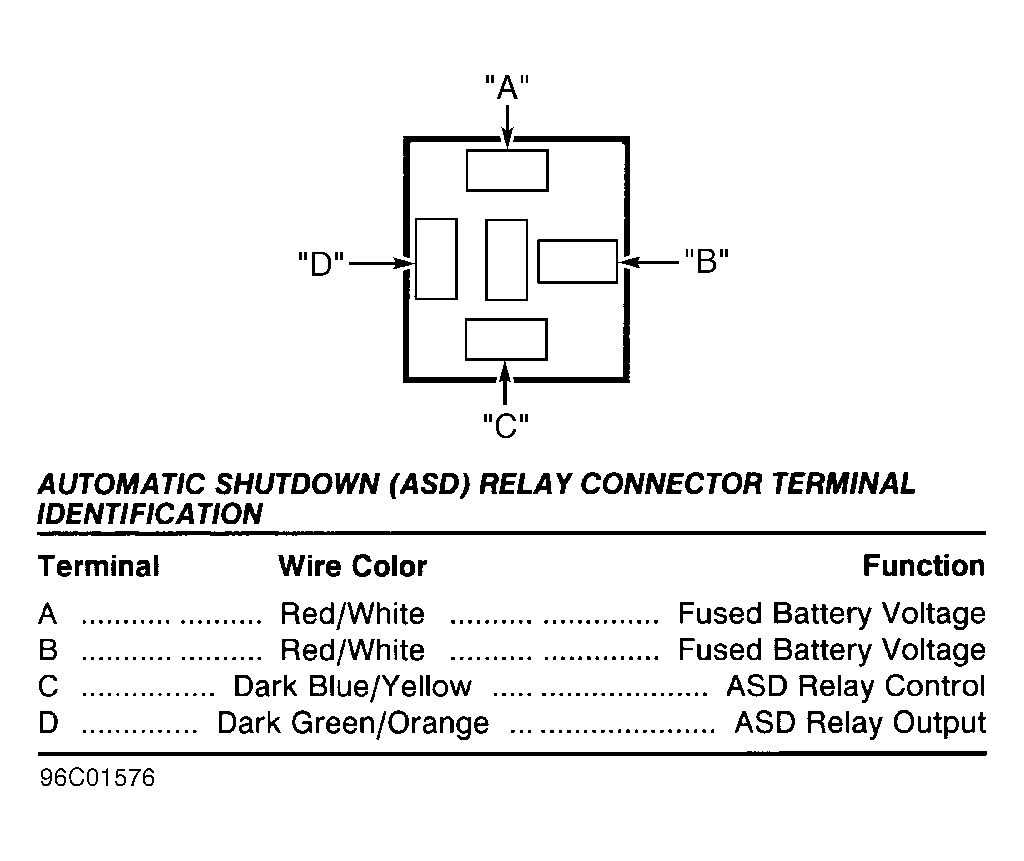

| Auto Shutdown (ASD) Relay | Fig 2 |

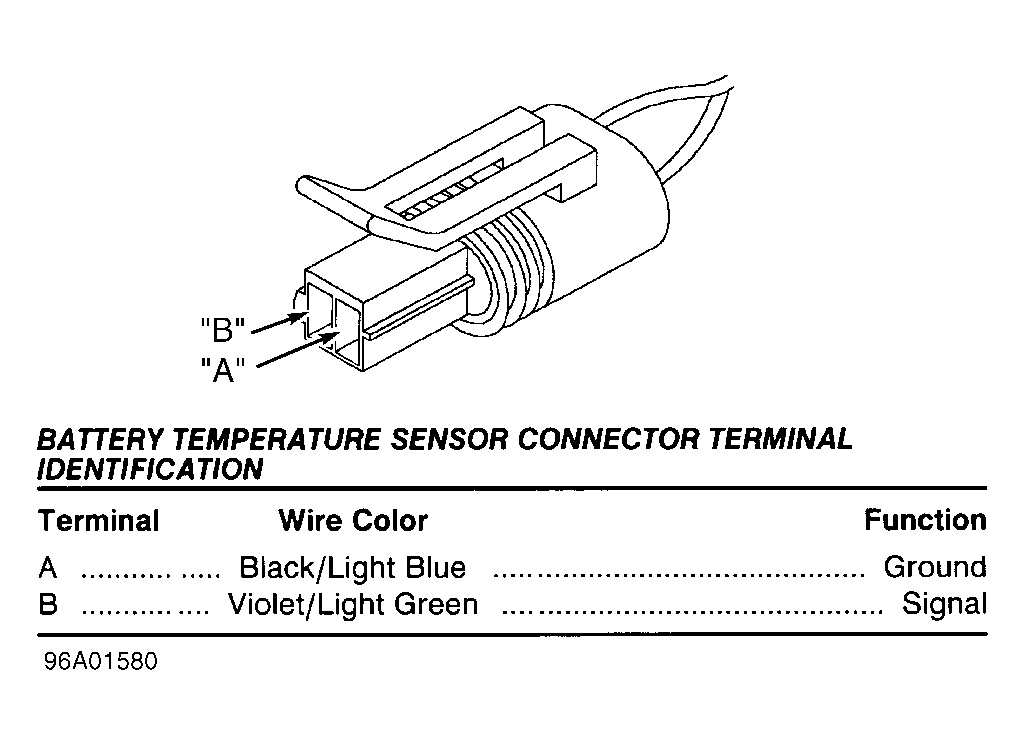

| Battery Temperature Sensor | Fig 3 |
| Brakelight Switch | Fig 4 |
| Camshaft Position (CMP) Sensor | Fig 5 |
| Clockspring 2-Pin Speed Control Connector | Fig 6 |
| Clockspring 4-Pin Speed Control Connector | Fig 7 |

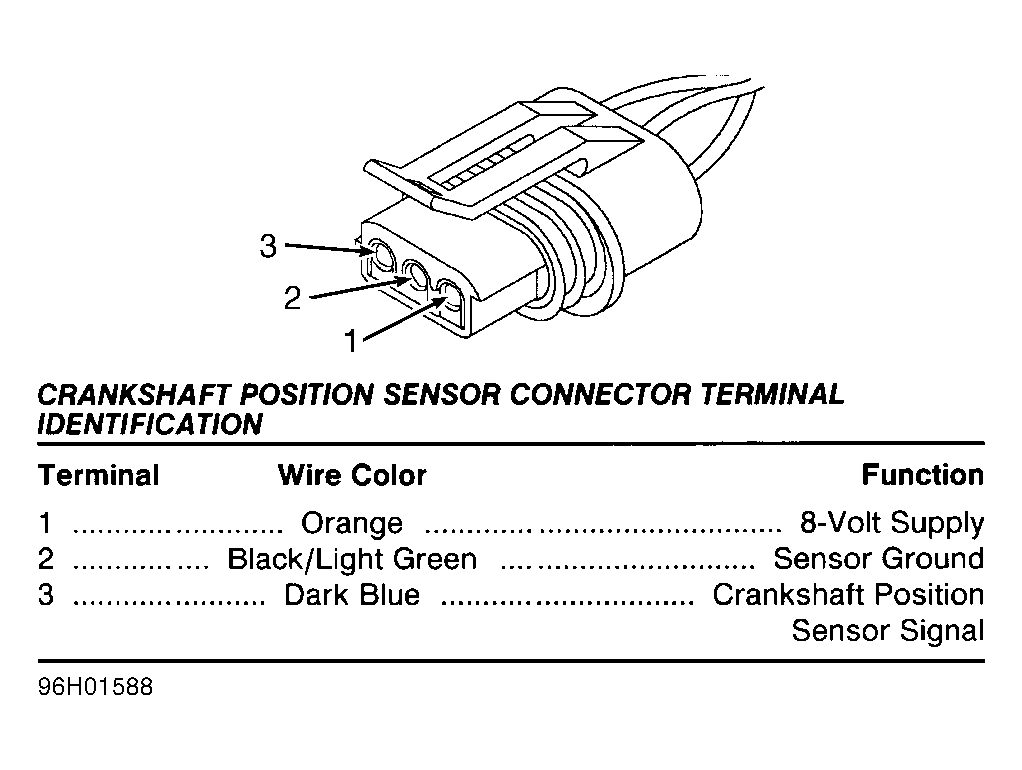

| Crankshaft Position (CKP) Sensor | Fig 8 |
| Downstream Oxygen Sensor (O2S - Harness Side) | Fig 9 |
| Engine Coolant Temperature (ECT) Sensor | Fig 10 |
| Evaporative Solenoid | Fig 11 |
| Exhaust Gas Recirculation (EGR) Solenoid | Fig 12 |

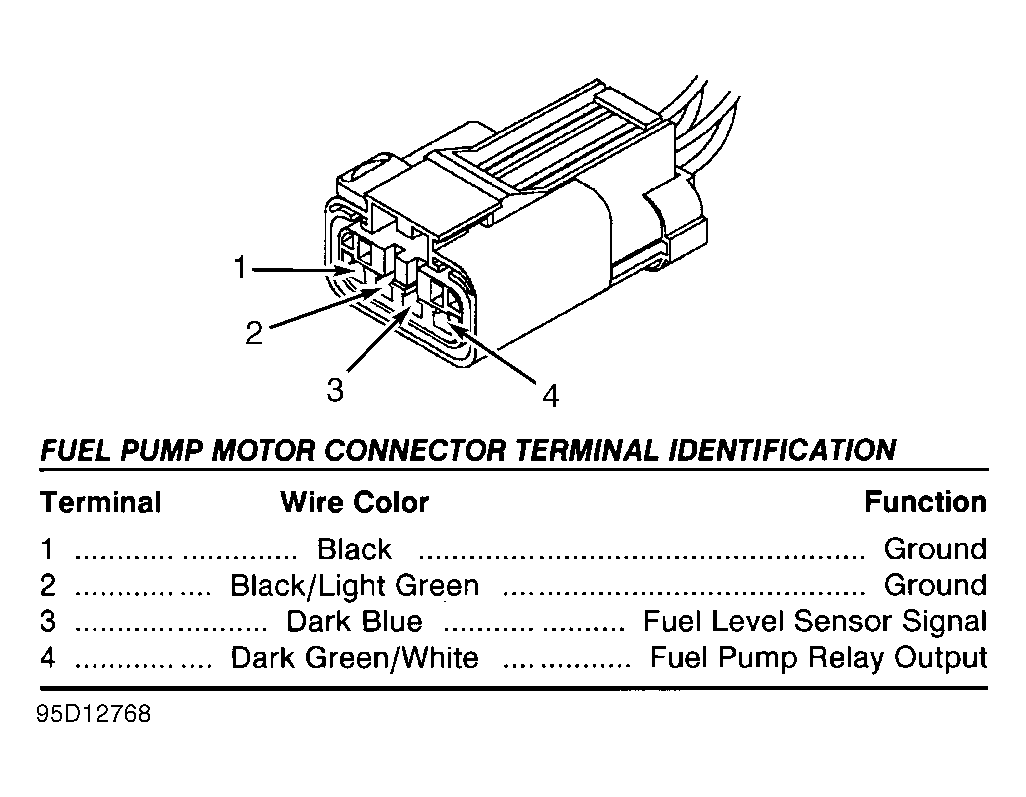

| Fuel Pump Motor | Fig 13 |
| Fuel Pump Relay | Fig 14 |
| Generator Field | Fig 15 |

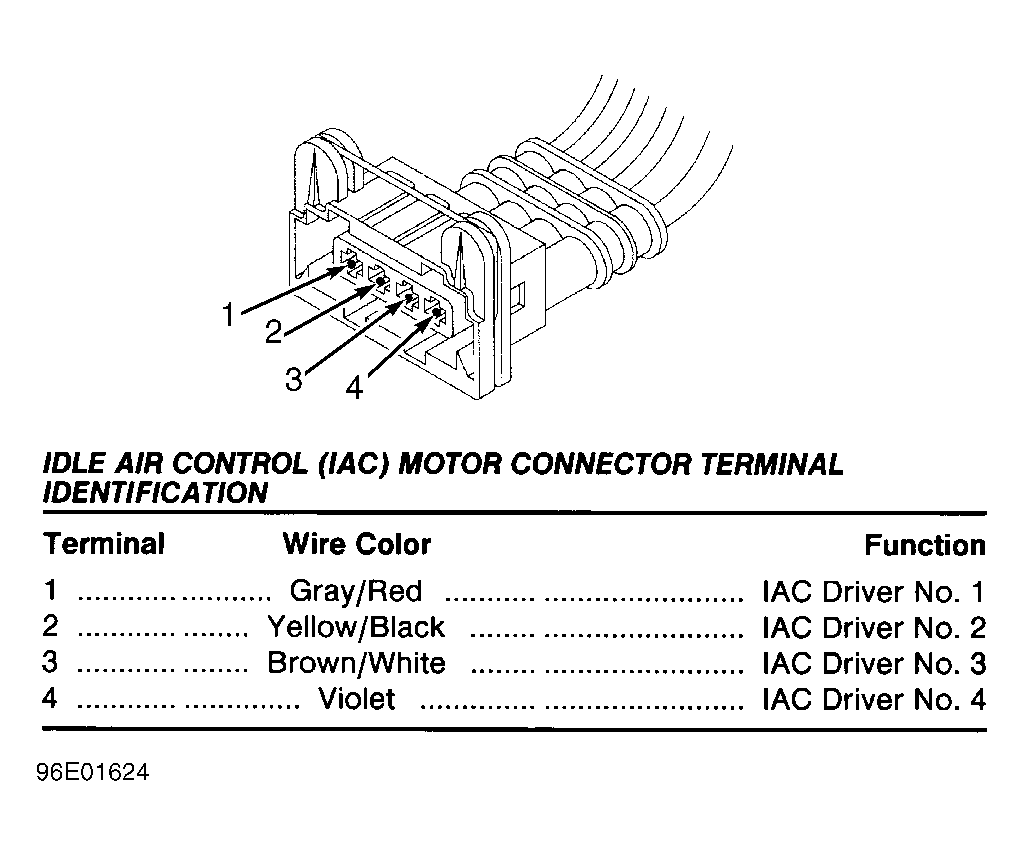

| Idle Air Control (IAC) Motor | Fig 16 |
| Ignition Coil | Fig 17 |

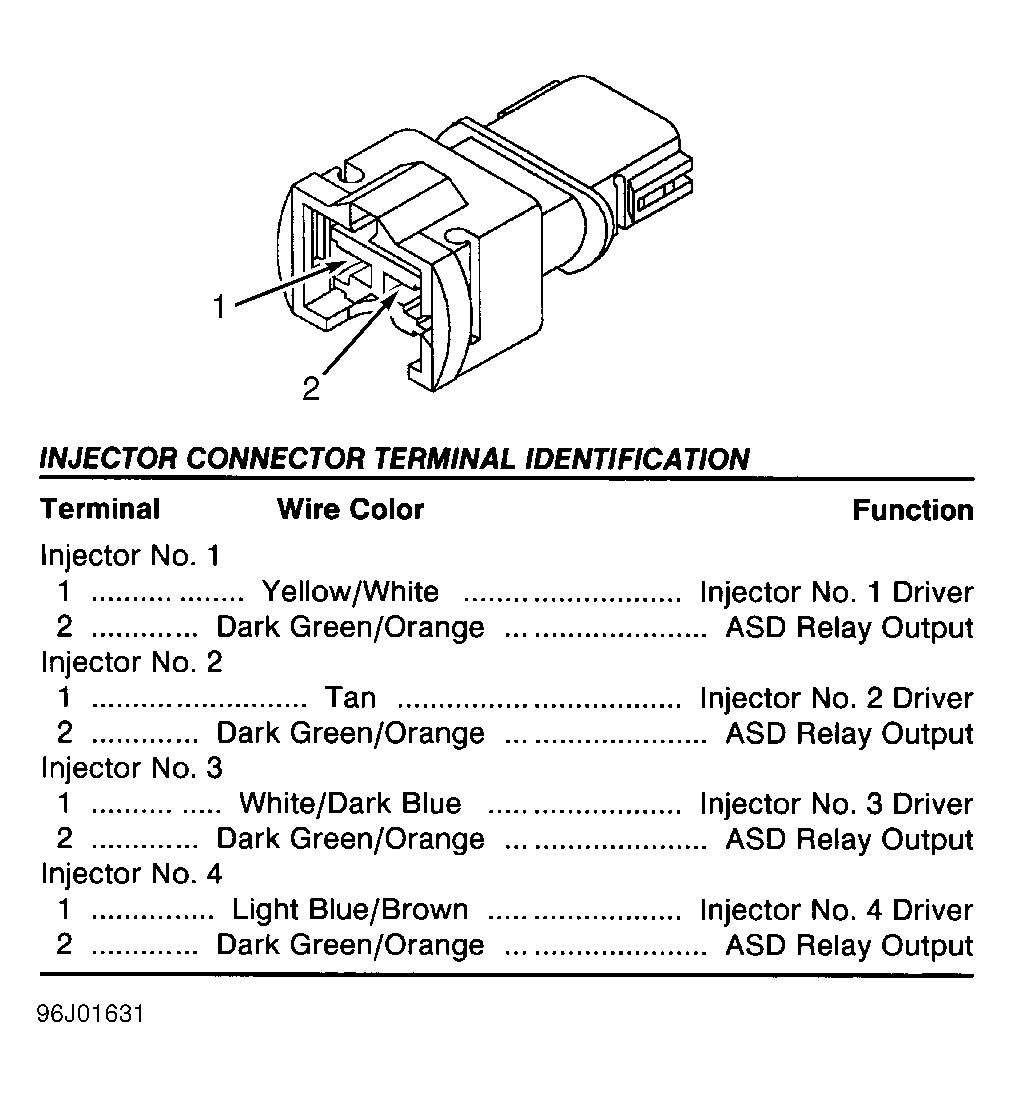

| Injector | Fig 18 |
| Intake Air Temperature/Manifold Absolute Pressure (IAT/MAP) | Fig 19 |

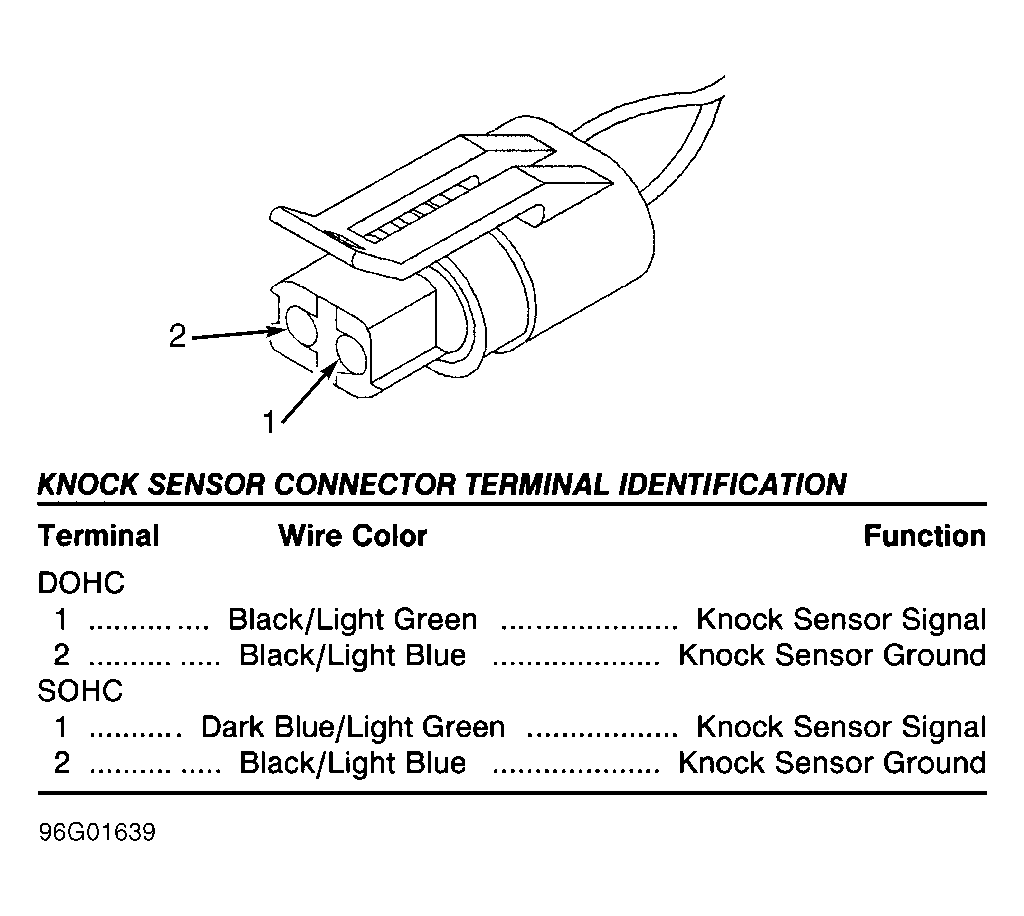

| Knock Sensor | Fig 20 |
| Park/Neutral Position Switch | Fig 21 |
| Powertrain Control Module (PCM) | Fig 22 |

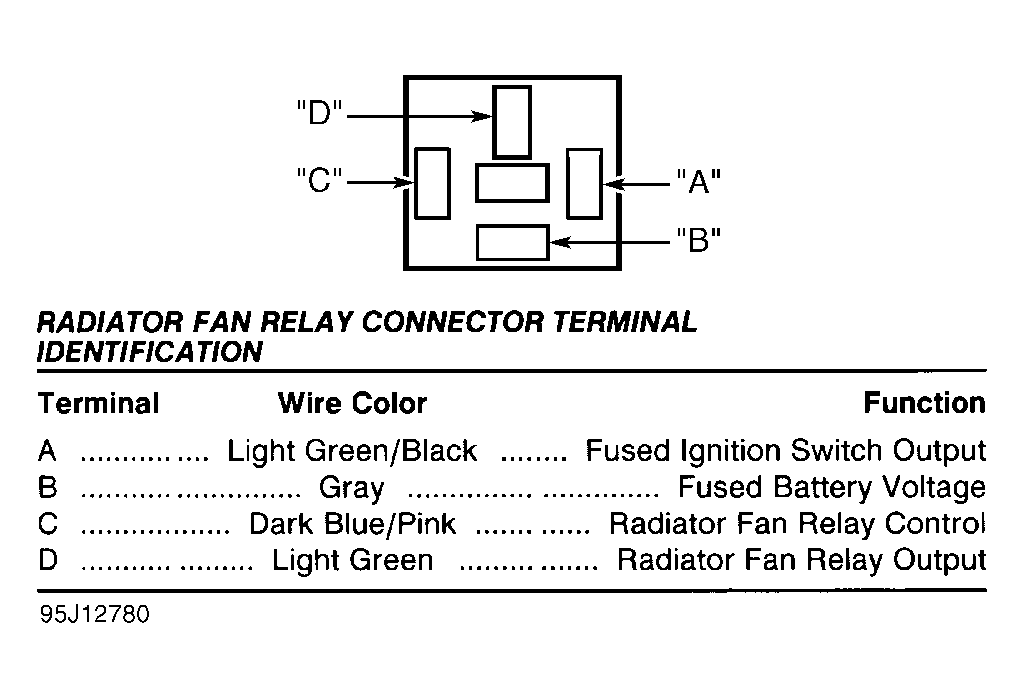

| Radiator Fan Relay | Fig 23 |
| Speed Control Servo | Fig 24 |
| Throttle Position (TP) Sensor | Fig 25 |
| Torque Converter Clutch (TCC) Solenoid | Fig 26 |
| Transmission Range Sensor | Fig 27 |
| Upstream Oxygen Sensor (O2S - Harness Side) | Fig 28 |
| Vehicle Speed Sensor (VSS) | Fig 29 |
| 16-Pin Data Link Connector (DLC) | Fig 30 |
