Component Locations

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component locations, refer to COMPONENT LOCATIONS  table or illustrations. See Fig 1-Fig 6 .
COMPONENT LOCATIONS

Component Location
A/C Compressor Clutch Relay In Underhood Fuse/Relay Block
A/C Refrigerant Pressure Sensor On A/C Evaporator Tube
Body Control Module Lower Rear Of Instrument Panel, On Heater
Camshaft Position Sensor Right Side Of Engine, Forward Of Coil Packs
Crankshaft Position Sensor Right Side Of Engine, Below Coil Packs
Cruise Control Module Left Rear Of Engine Compartment, On Cowl
Data Link Connector Lower Left Side Of Instrument Panel
Engine Coolant Temperature Sensor Front Of Engine, In Coolant Piping
Engine Oil Pressure Sensor Right Side Of Engine, Front Of Coil Pack
EVAP Canister Purge Solenoid Right Side Of Engine, Above Coil Packs
EVAP Canister Vent Solenoid Crossmember Area Of Fuel Tank, Rear Center Of Crossmember Behind Fuel Tank
Fuel Filter/
Fuel Pressure Regulator		 Fuel feed pipe, between fuel pump and fuel injectors
Fuel Injectors On Lower Manifold Assembly
Fuel Pump Relay In Underhood Fuse/Relay Block
Fuel Tank Pressure Sensor Top Of Fuel Tank
Heated Oxygen Sensor - Bank 1, Sensor 2 Rear Of Catalytic Converter
Idle Air Control Valve On Throttle Body
Ignition Control Module Right Rear Of Engine, Near Grounding Strap
Intake Air Temperature Sensor On Air Intake Duct
Knock Sensor Lower Right Side Of Engine, Below Coil Packs
Manifold Absolute Pressure Sensor Top Right Side Of Engine, On Intake Manifold
Oxygen Sensor - Bank 1, Sensor 1 Left Side Of Engine, In Exhaust Manifold Crossover Pipe
Powertrain Control Module Right Side Of Engine Compartment
Secondary Air Injection Pump Lower Right Front Of Engine Compartment
Secondary Air Injection Reactor Fuse Block Mounted to Right Front Fender, Next To Battery
Throttle Position Sensor On Throttle Body
Underhood Fuse/Relay Block On Top Of Left Inner Wheelwell
Vehicle Speed Sensor
A/T Right Rear Of Transmission
M/T Left Rear Of Transmission

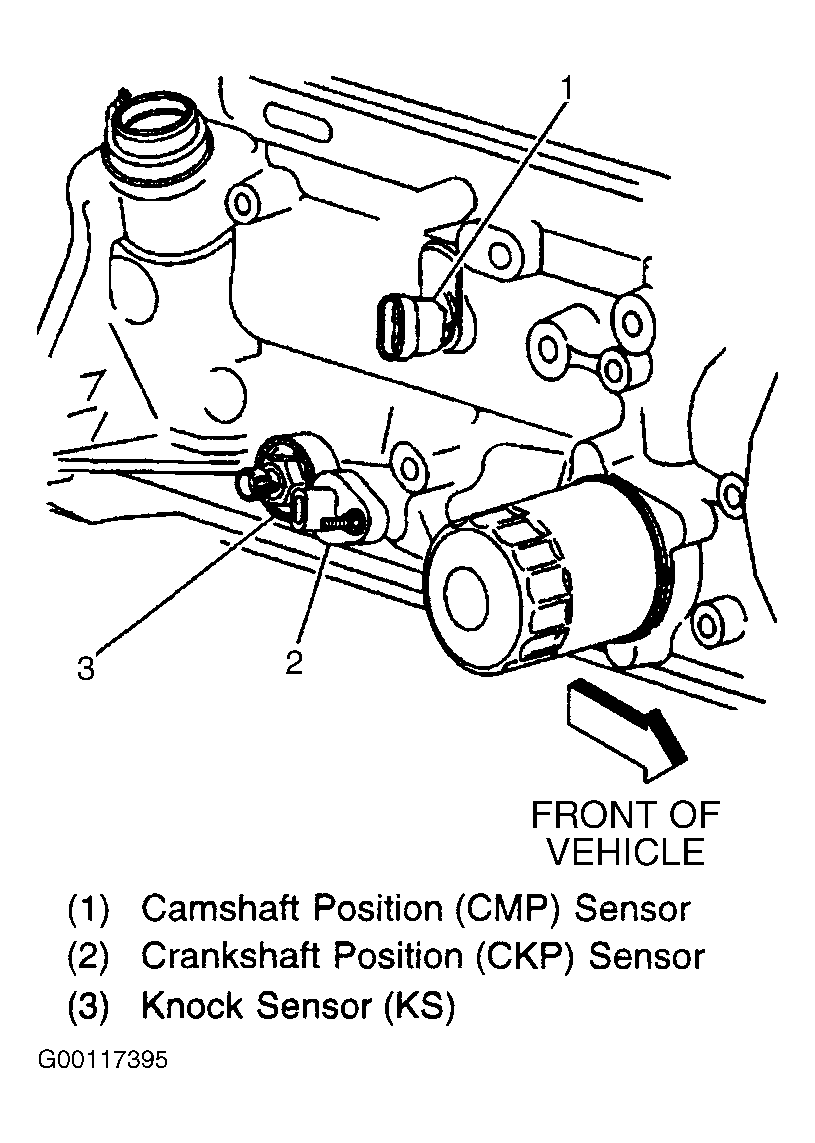

Fig 1: Locating Camshaft Position Sensor, Crankshaft Position Sensor & Knock Sensor
G00117395Courtesy of GENERAL MOTORS CORP.

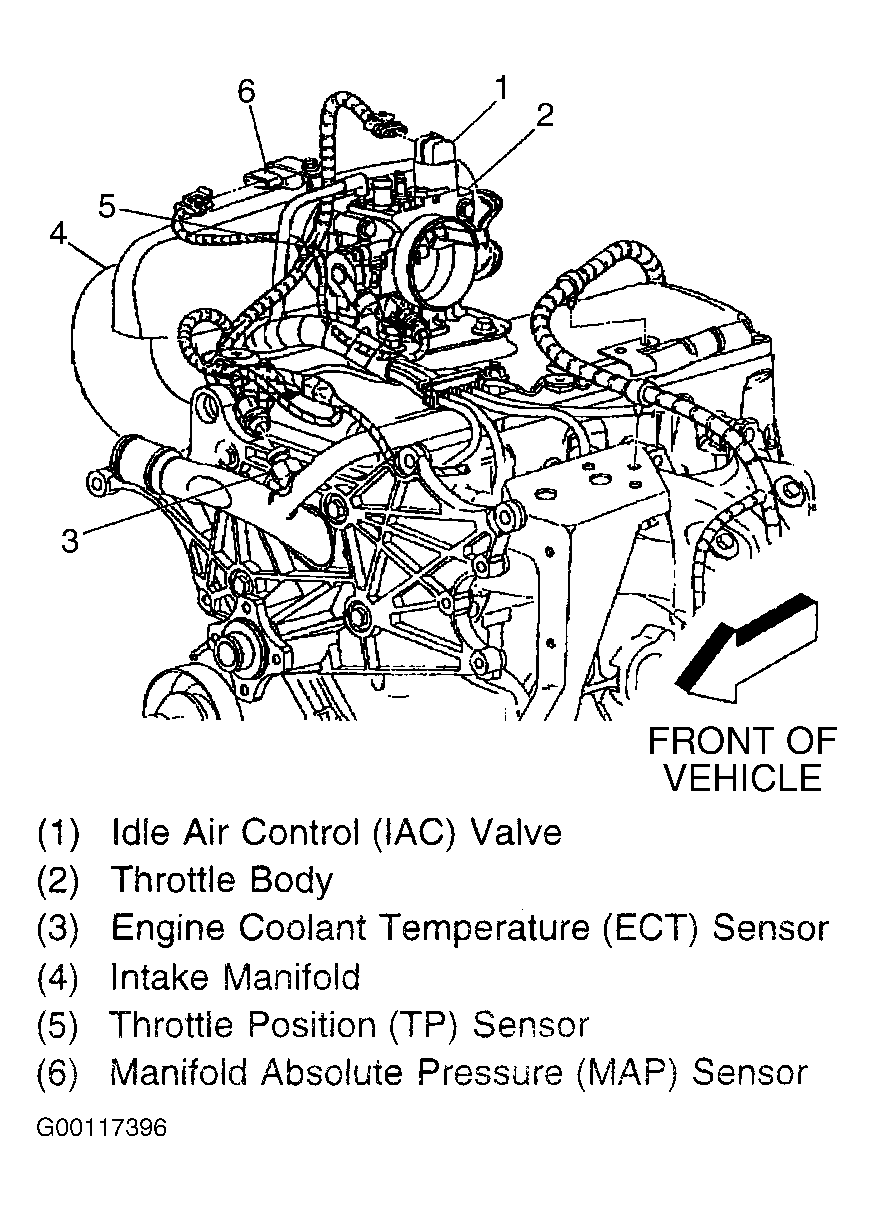

Fig 2: Locating Engine Control Input Components (Left Upper Engine)
G00117396Courtesy of GENERAL MOTORS CORP.

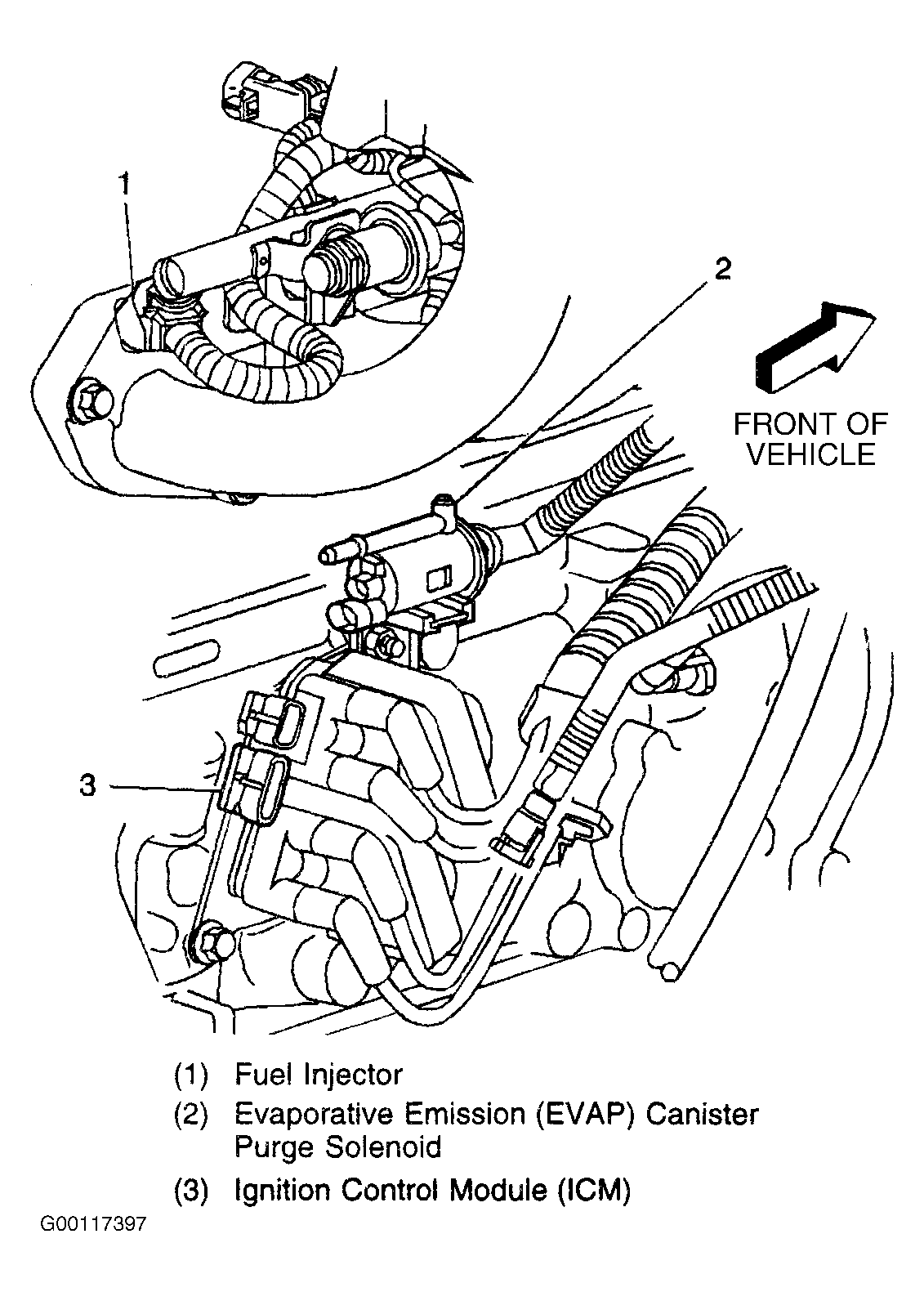

Fig 3: Locating EVAP Canister Purge Solenoid
G00117397Courtesy of GENERAL MOTORS CORP.

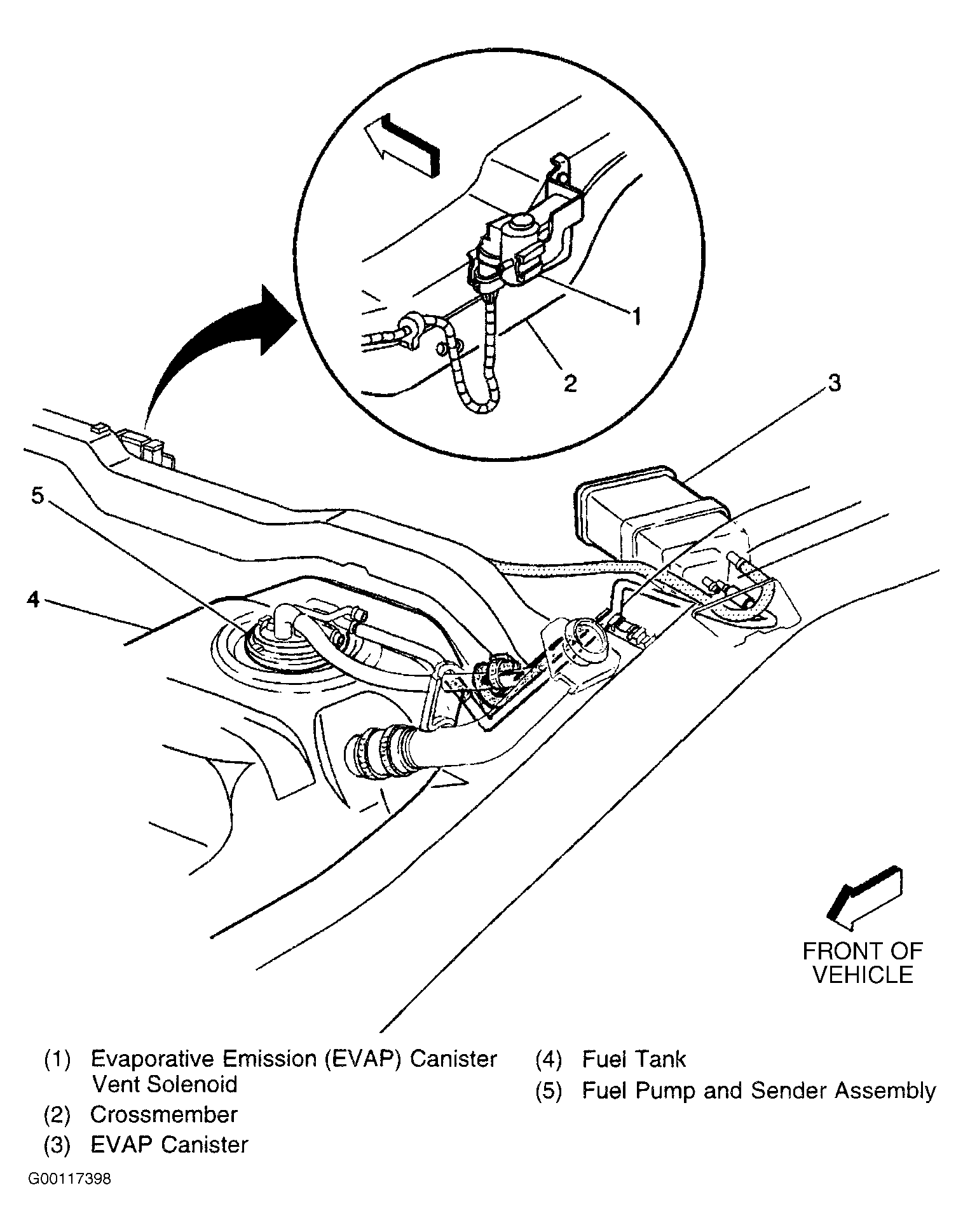

Fig 4: Locating EVAP Canister & EVAP Canister Vent Solenoid (Pickup & 4-Door Utility Trucks)
G00117398Courtesy of GENERAL MOTORS CORP.

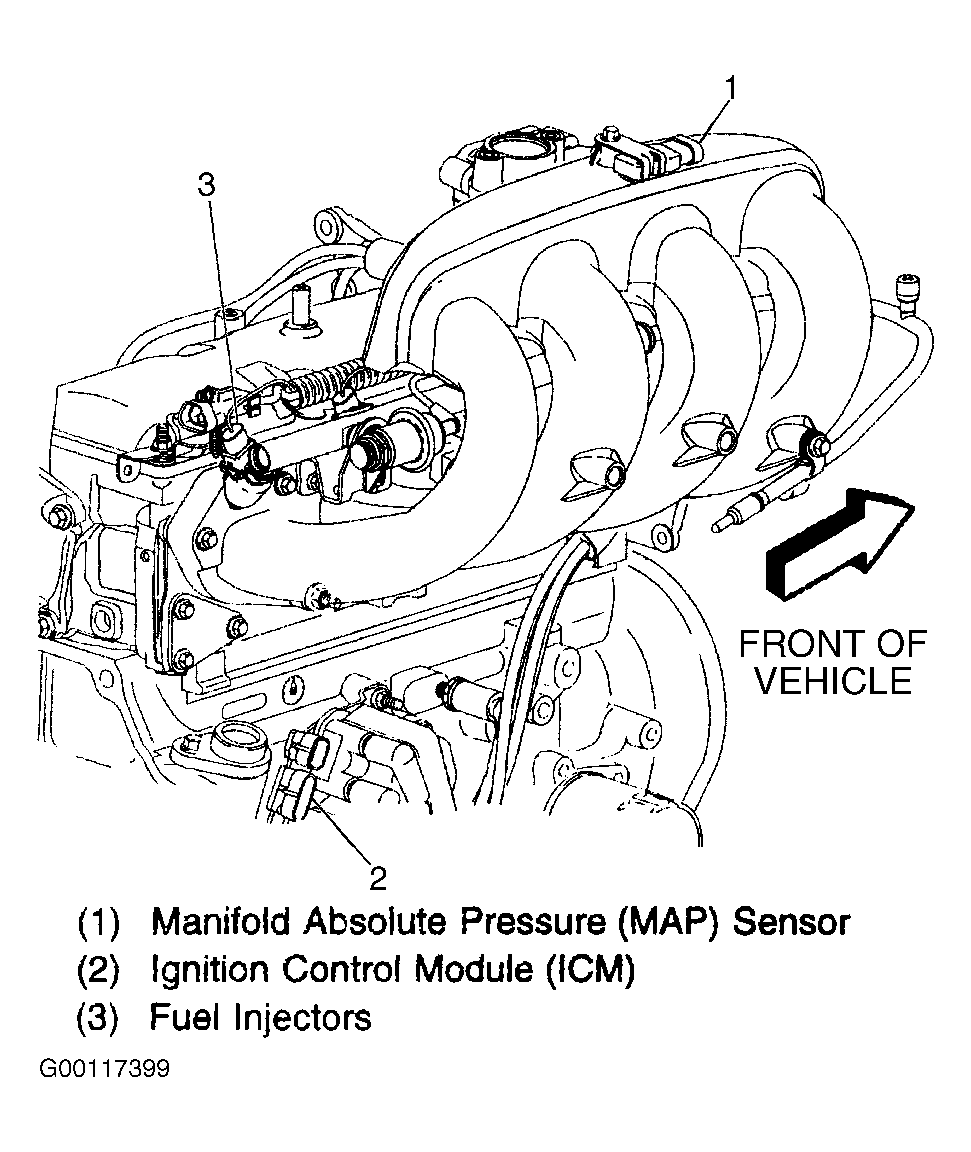

Fig 5: Locating Fuel Injectors, Ignition Control Module & MAP Sensor
G00117399Courtesy of GENERAL MOTORS CORP.

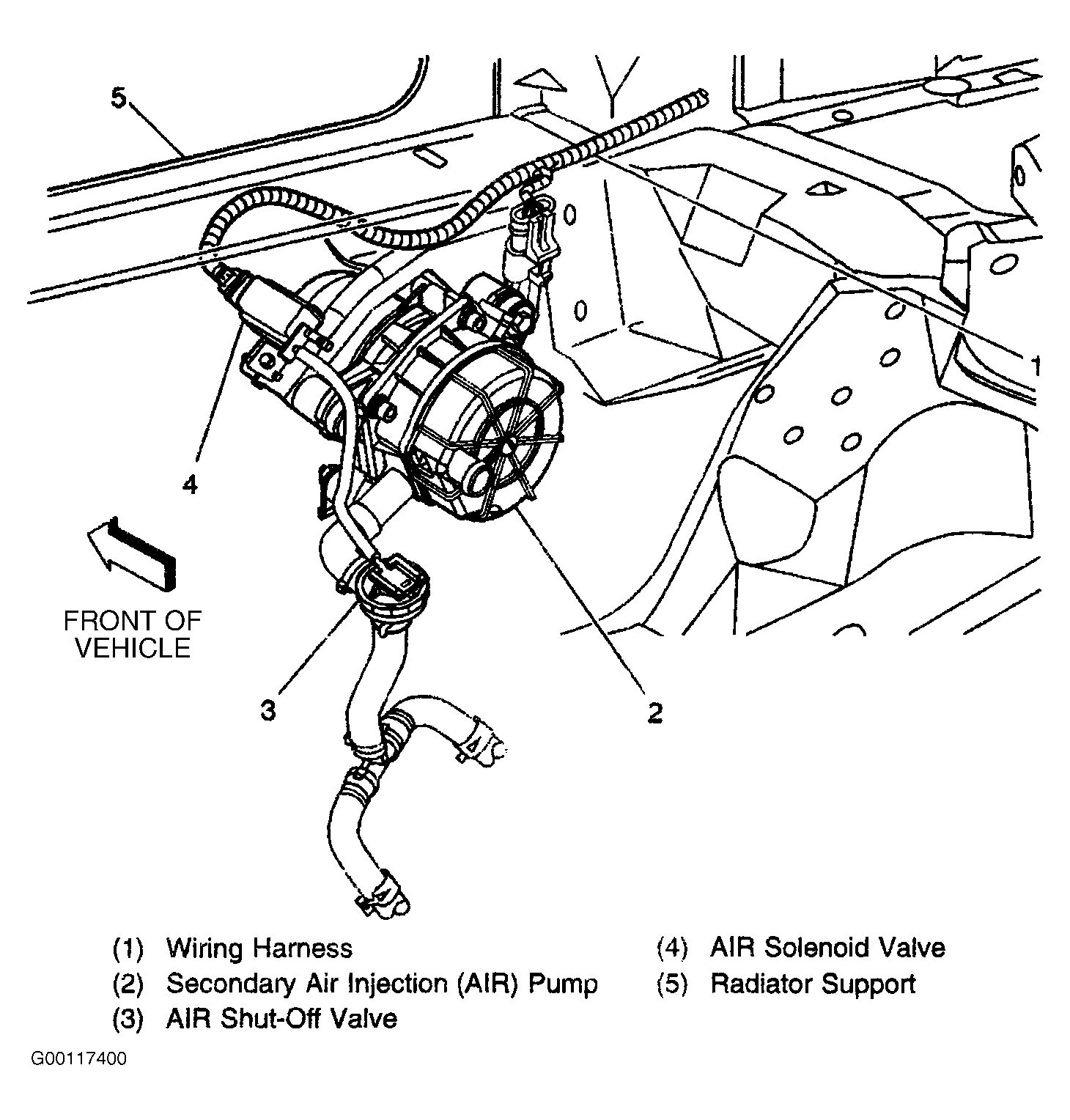

Fig 6: Locating Secondary Air Injection Pump Components
G00117400Courtesy of GENERAL MOTORS CORP.
