New Body Control Module Setup
CAUTION:
After performing new BCM setup procedure, go to THEFT DETERRENT RELEARN
. If theft deterrent relearn procedure is not performed after a BCM replacement, following condition(s) will occur: vehicle will not be protected against theft by Passlock(R) system and/or engine will not start.
NOTE:
Following procedure is written specifically for Tech 2 scan tool. A generic scan tool may not be capable of performing all necessary reprogramming functions.
NOTE:
After performing new BCM setup procedure, inform customer that all personal settings must be reset.

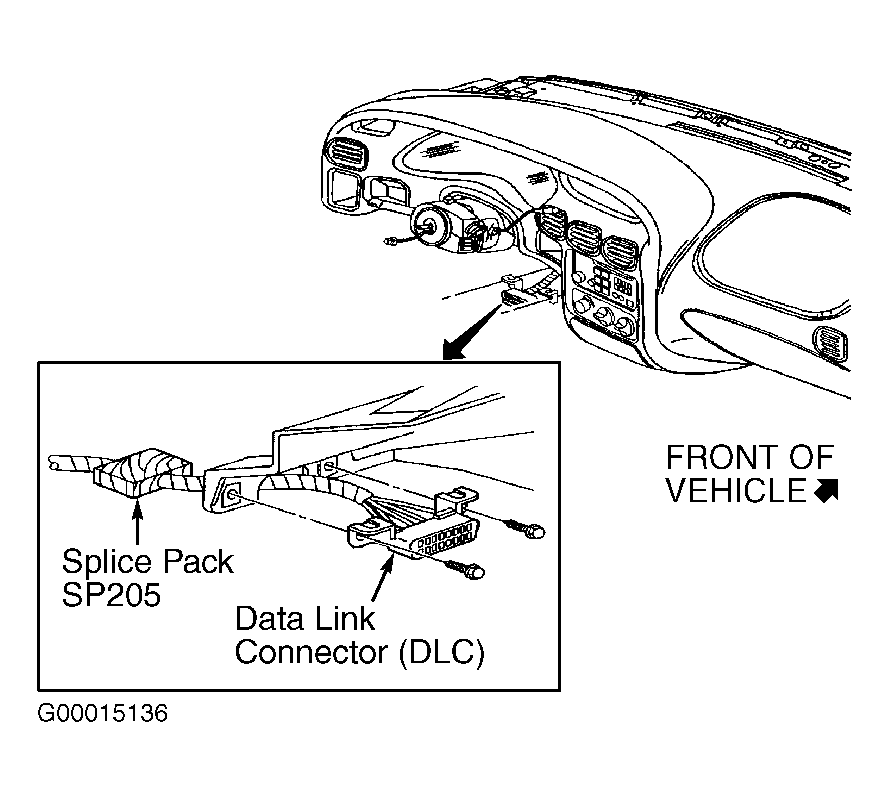

- Turn ignition switch to OFF position. Connect scan tool to Data Link Connector (DLC). DLC is located below left side of instrument panel, to right of steering column. See Figure . Turn ignition switch to RUN position. Using scan tool, select DIAGNOSTICS and input all required vehicle data when prompted by scan tool. Select BODY, then BODY CONTROL MODULE. Select SPECIAL FUNCTIONS. Select NEW VIN and input all required data when prompted by scan tool. Exit back to SPECIAL FUNCTIONS and select BCM REPROGRAMMING.
- When scan tool displays, DO YOU WANT TO SETUP A BODY CONTROL MODULE?, select SETUP BCM key on scan tool. Scan tool will display NOW SETTING UP THE NEW BODY CONTROL MODULE. When BCM has been setup successfully, scan tool will display BODY CONTROL MODULE SETUP IS COMPLETE. After completing new BCM setup procedure, perform THEFT DETERRENT RELEARN procedure.
