System Tests: Notes

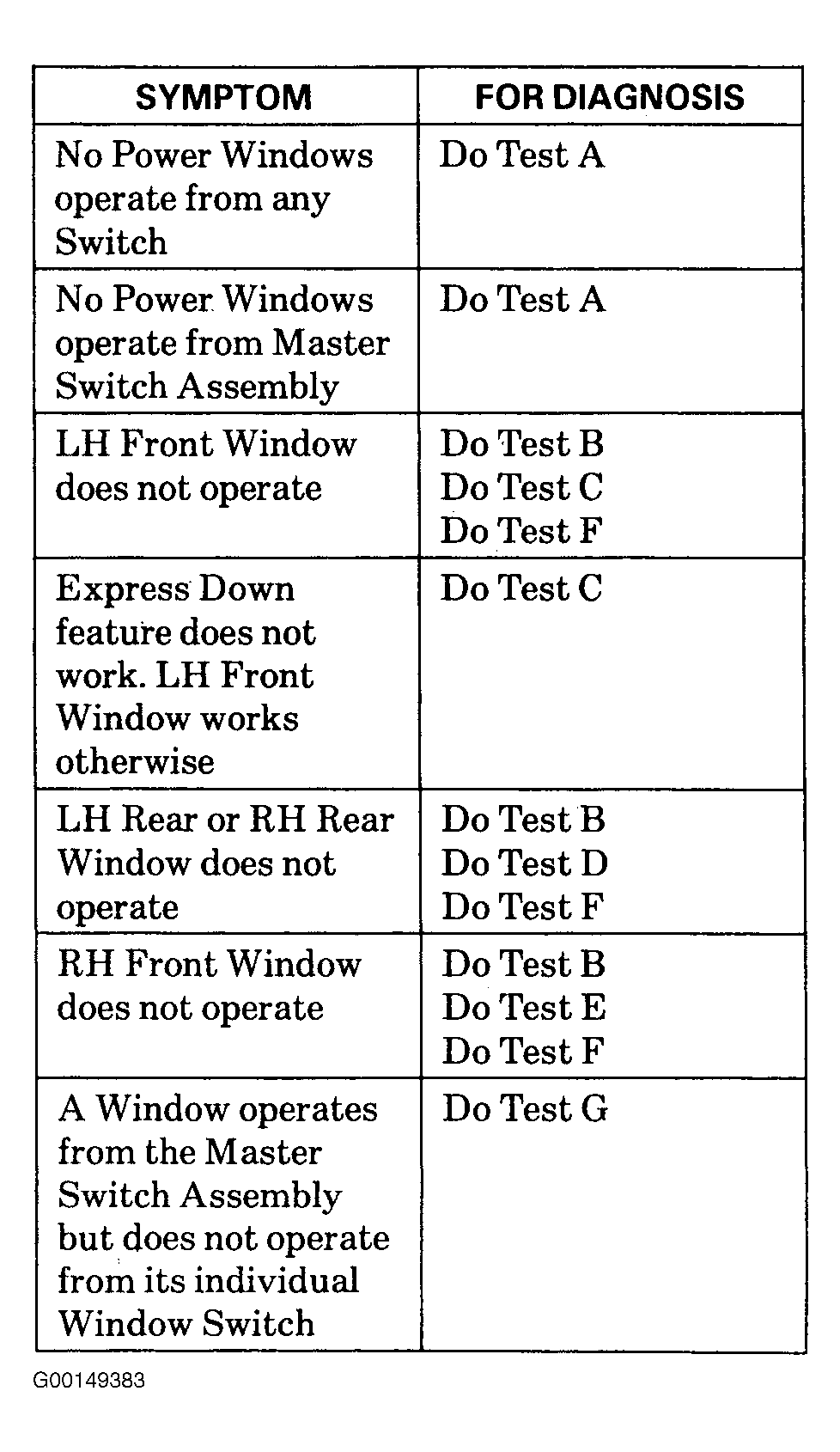

Match problem with power window system with choices in Symptom Index. See Fig 1 . If symptom does not appear in the Symptom Index, perform all of the tests.
SYSTEM TEST INDEX
| Circuit | Perform Test |
|---|---|
| Window Power & Ground | A |
| Master Switch Assembly | B |
| Power Window Control Module | C |
| Rear Window Switch | D |
| Right Front Window Switch | E |
| Window Motor | F |
| Window Switch Power | G |
