Home >> Oldsmobile >> 1992 >> Cutlass Cruiser SL, 4T60/ME9 >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test C: Power Window Control Module

Test C: Power Window Control Module

For test procedure, refer to illustration. See Fig 1 .

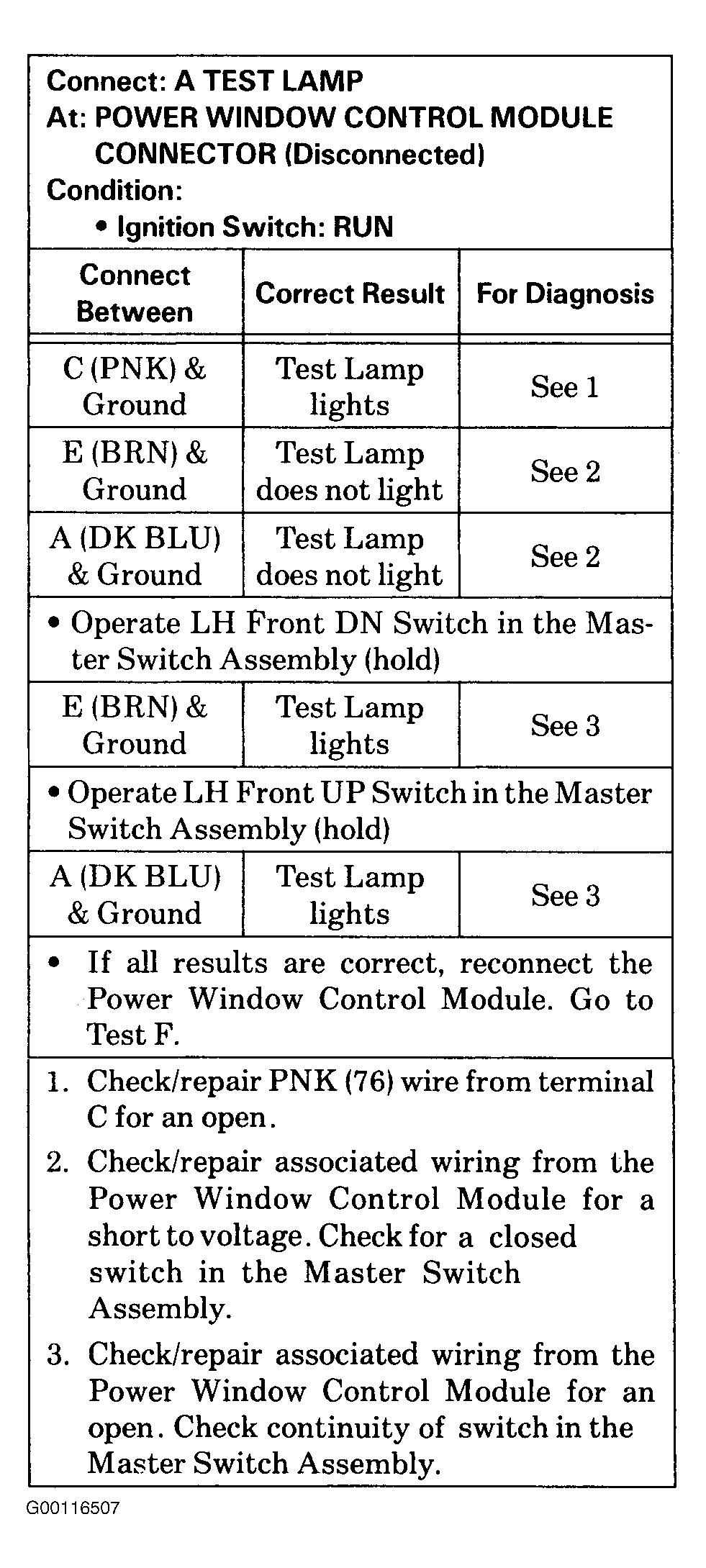

Fig 1: Test C: Power Window Control Module

G00116507

Courtesy of GENERAL MOTORS CORP.
