Component Locations

COMPONENT LOCATIONS

Component Location
Express Down Window Module Center Of Left Front Door. See Fig 1 .
I/P Fuse Block Behind Left Side Of I/P, Behind Trim Panel. See Fig 2 .
Window Motors (Front) In Lower Front Portion Of Respective Front Door. See Fig 3 .
Window Motors (Rear) In Lower Portion Of Respective Rear Door. See Fig 4 .
C201 Taped In Dash Harness, Left Front Door Sill. See Fig 5 .
C700 In Lower Portion Of Left Center Pillar. See Fig 6 .
C800 In Lower Portion Of Right Center Pillar. See Fig 6 .
G202 Behind Left Side Of I/P, Top Of Shroud. See Fig 7 .
P500 Front Of Left Front Door. See Fig 3 .
P600 Front Of Right Front Door. See Fig 3 .
P700 Front Of Left Rear Door. See Fig 4 .
P800 Front Of Right Rear Door. See Fig 4 .
S225 Composite Harness, Behind Left Side Of I/P, Left Of Steering Column. See Fig 2 .
S247 Composite Harness, Behind Left Side Of I/P, Top Of Shroud. See Fig 2 .
S500 Composite Harness, Center Of Left Front Door. See Fig 3 .

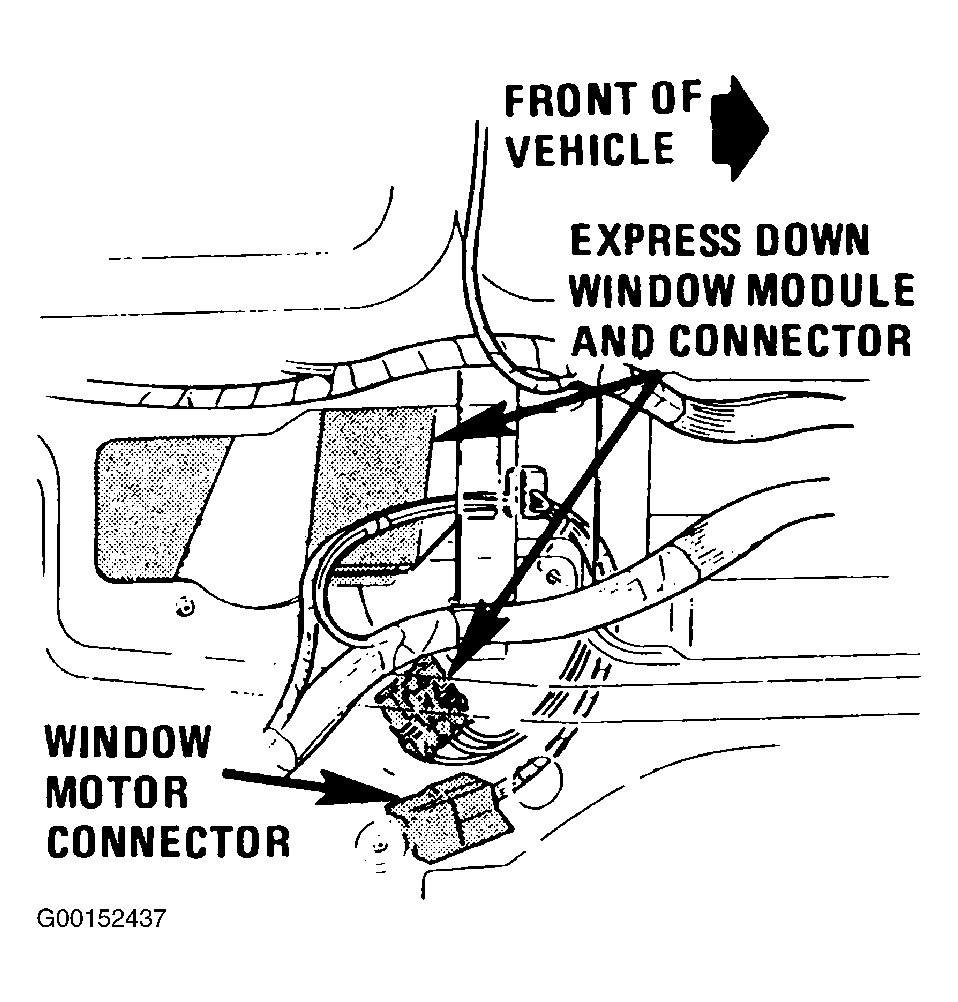

Fig 1: Locating Express Down Window Module & Connector Components
G00152437Courtesy of GENERAL MOTORS CORP.

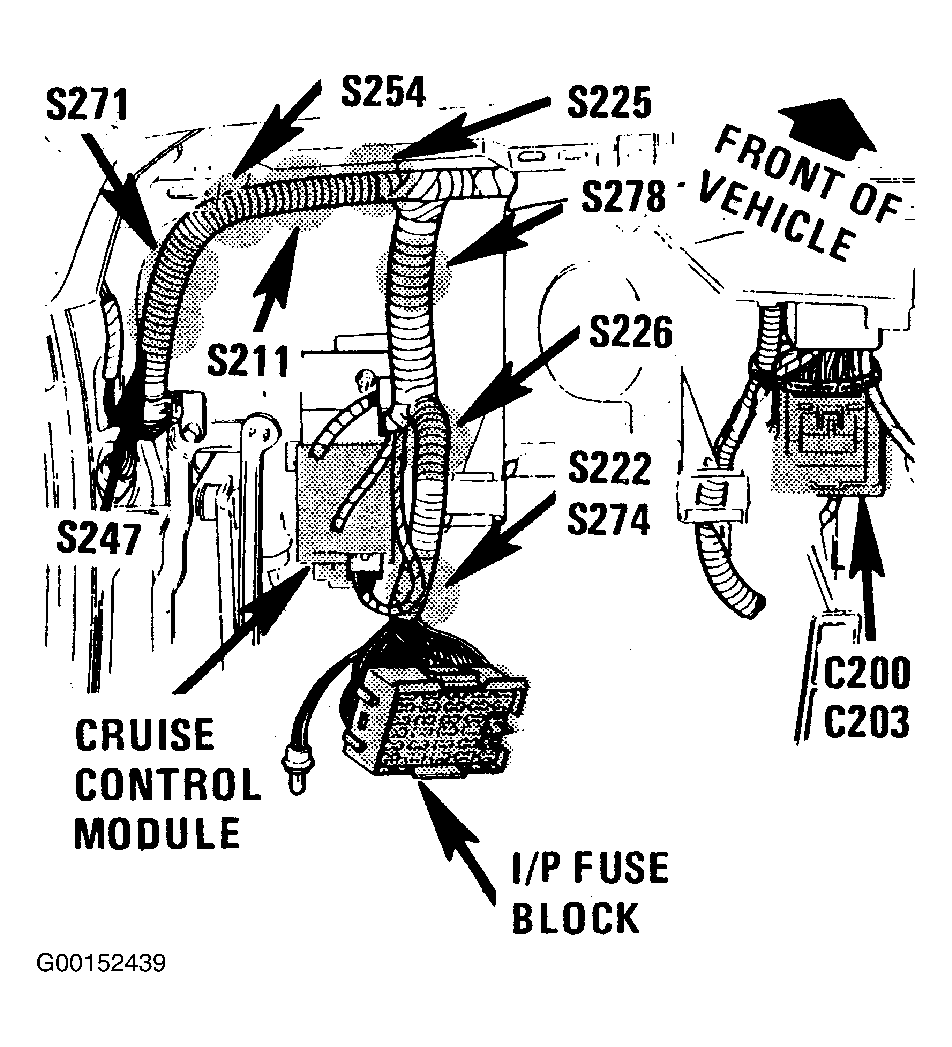

Fig 2: Locating I/P Fuse Block, & Splices S225 & S247
G00152439Courtesy of GENERAL MOTORS CORP.

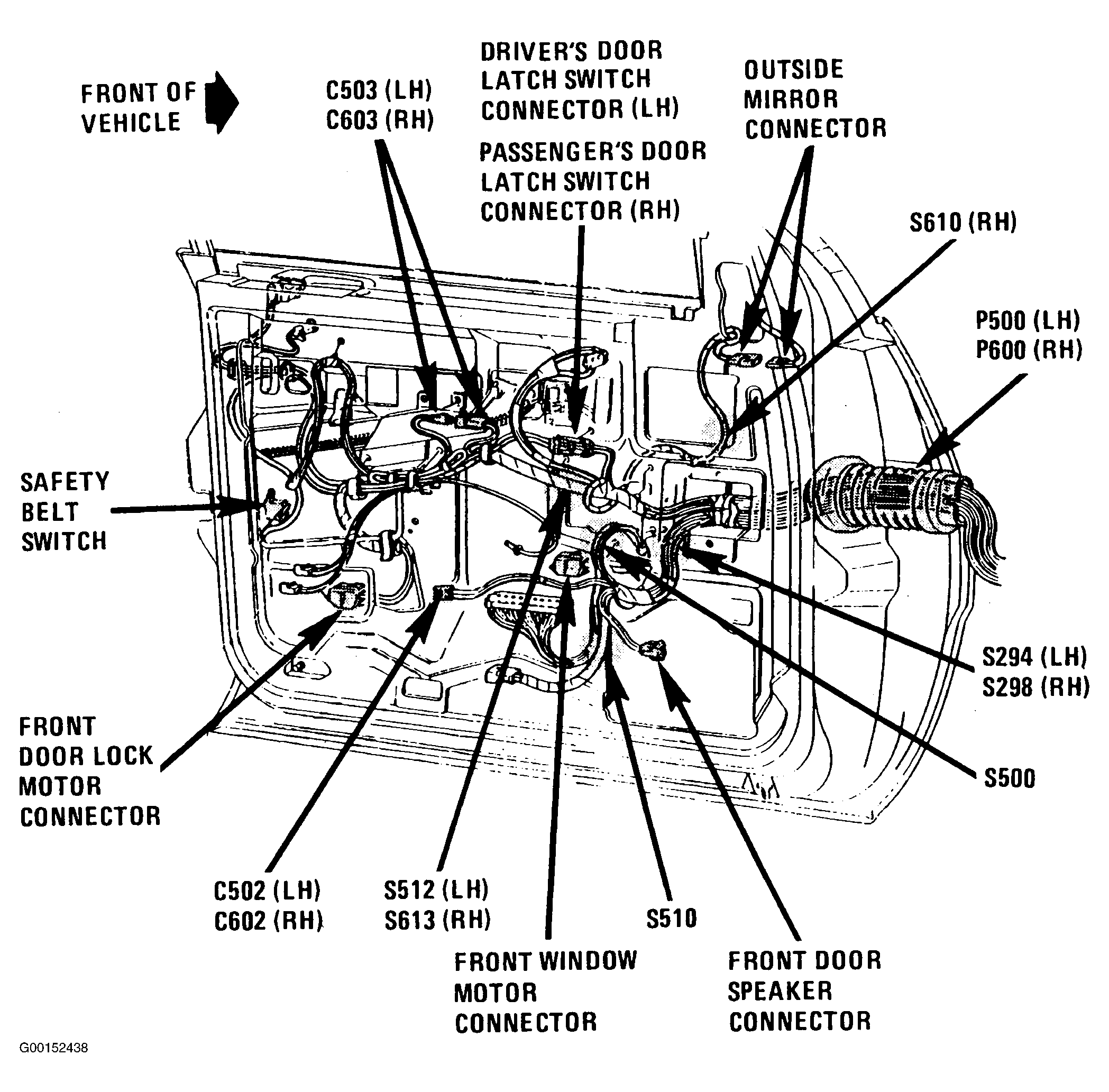

Fig 3: Locating Front Window Motors, Body Grommets P500 & 600 & Splice S500
G00152438Courtesy of GENERAL MOTORS CORP.

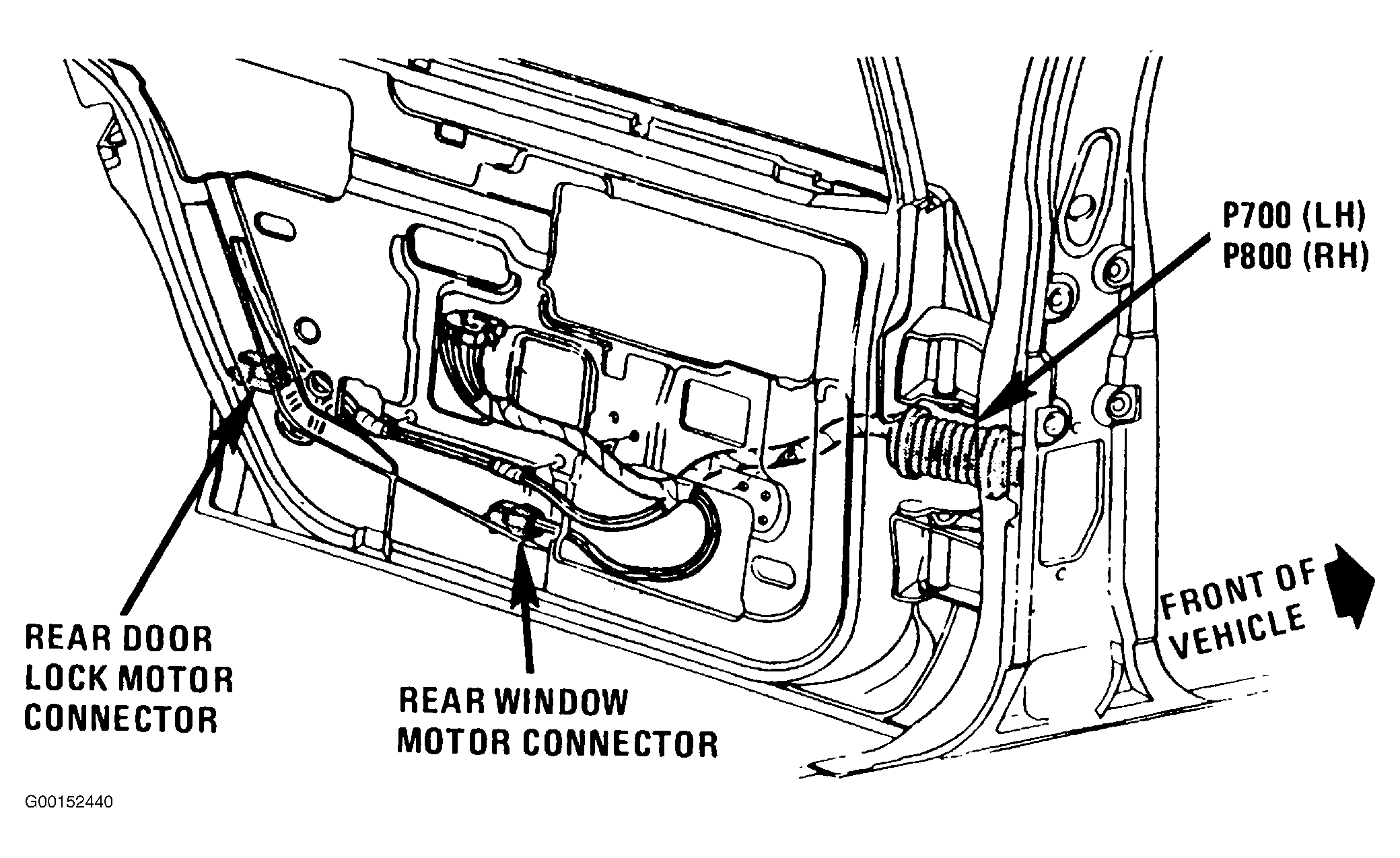

Fig 4: Locating Rear Window Motors, & Body Grommets P700 & P800
G00152440Courtesy of GENERAL MOTORS CORP.

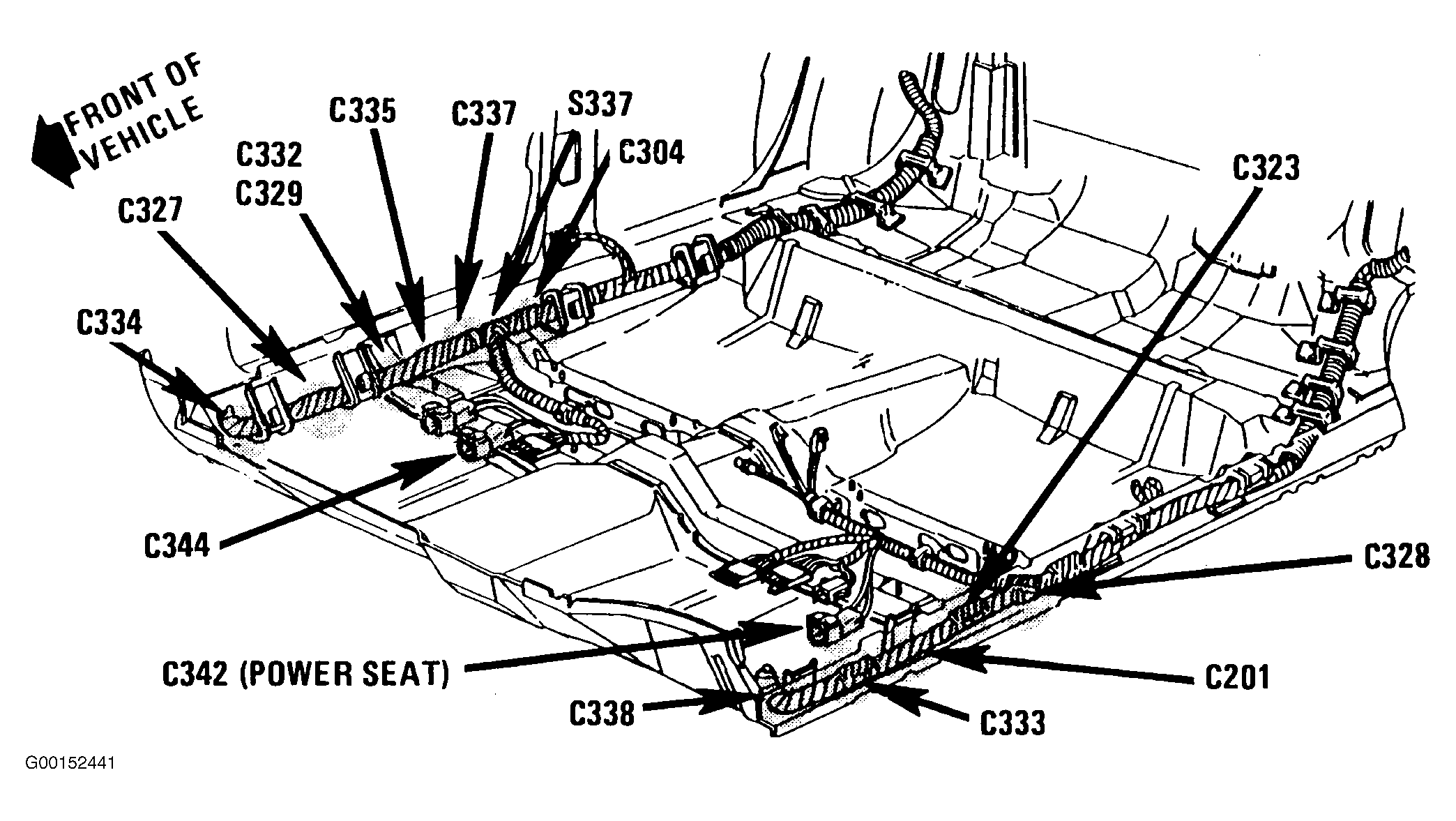

Fig 5: Locating Connector C201
G00152441Courtesy of GENERAL MOTORS CORP.

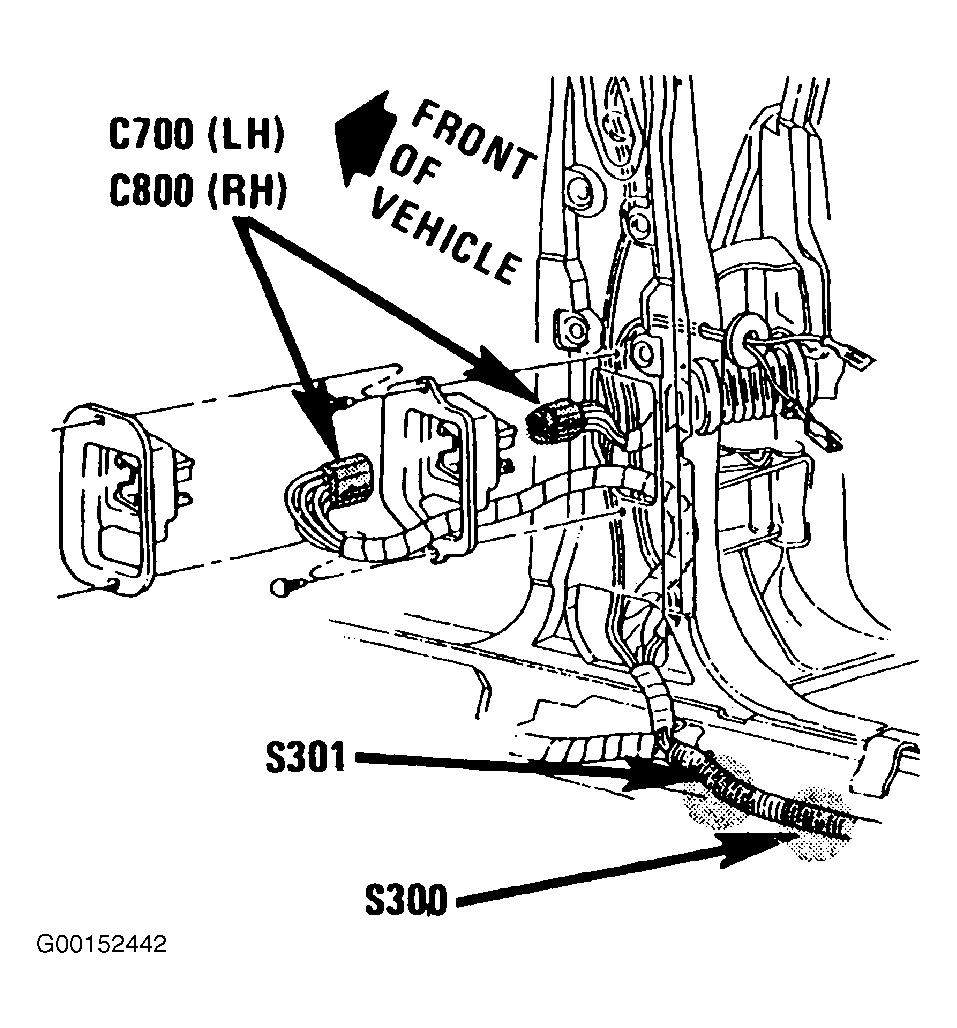

Fig 6: Locating Connectors C700 & C800
G00152442Courtesy of GENERAL MOTORS CORP.

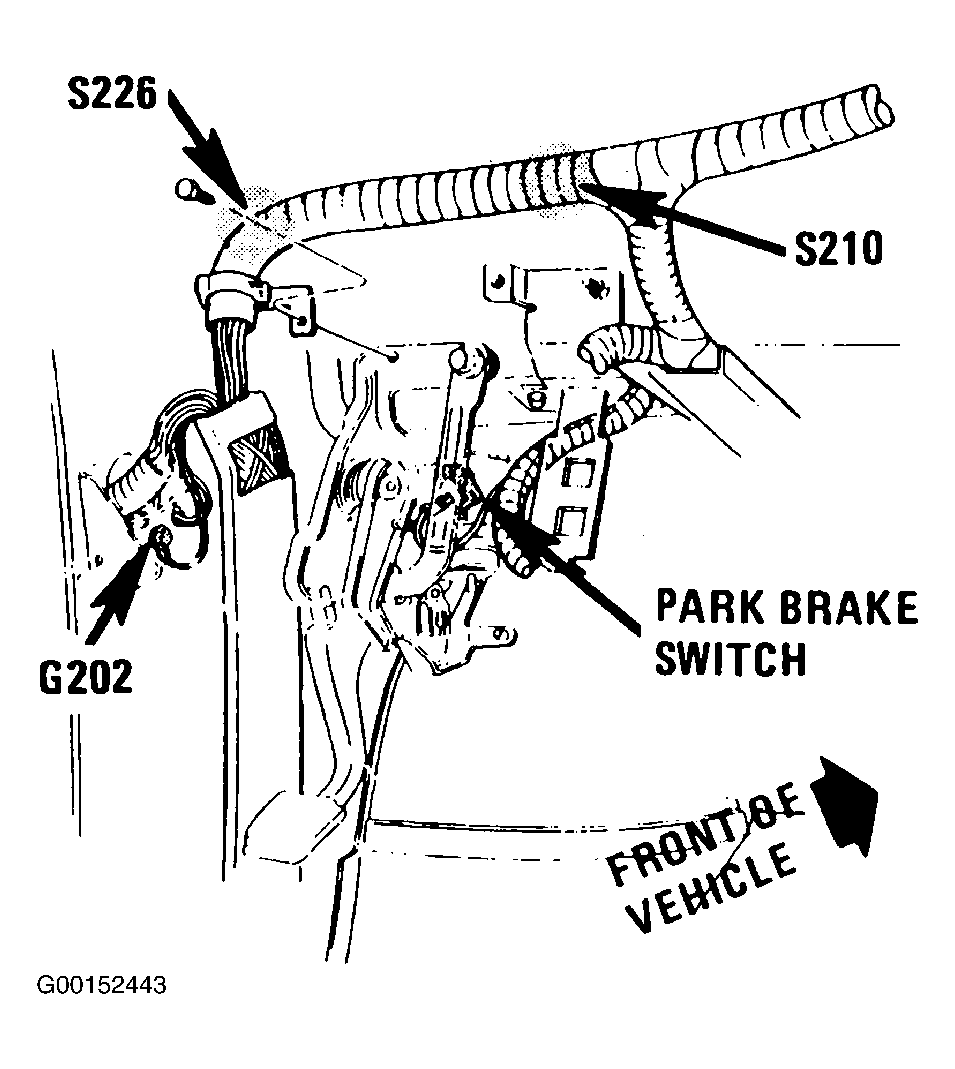

Fig 7: Locating Ground G202
G00152443Courtesy of GENERAL MOTORS CORP.
