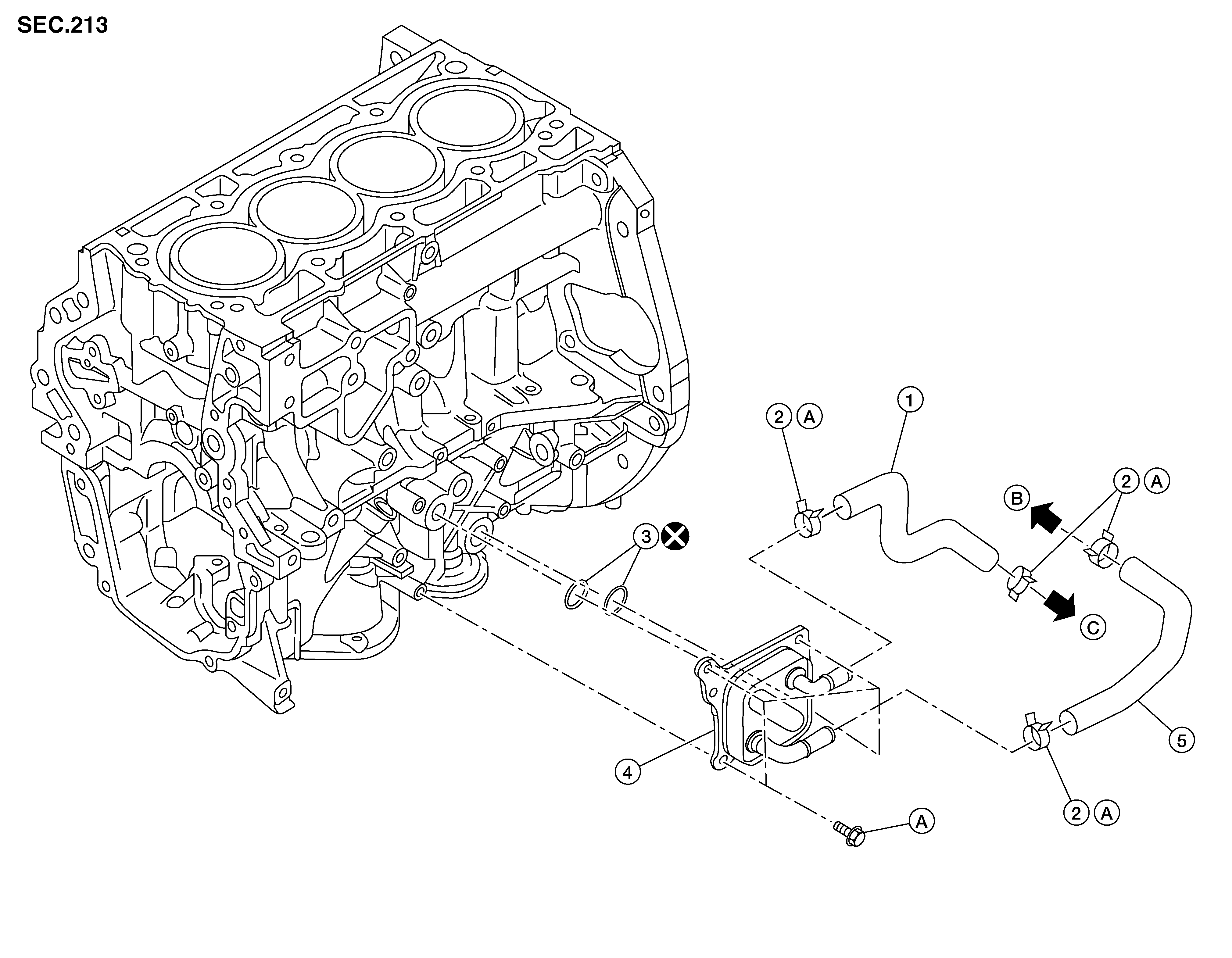

Exploded View
| 1. | Water supply hose | 2. | Clamp | 3. | O-ring |
| 4. | Oil cooler | 5. | Water return hose | A. | Refer to Removal and Installation . |
| B. | To radiator hose lower. Refer to Exploded View . | C. | To radiator hose upper. Refer to Exploded View . | ||
| 1. | Water supply hose | 2. | Clamp | 3. | O-ring |
| 4. | Oil cooler | 5. | Water return hose | A. | Refer to Removal and Installation . |
| B. | To radiator hose lower. Refer to Exploded View . | C. | To radiator hose upper. Refer to Exploded View . | ||
