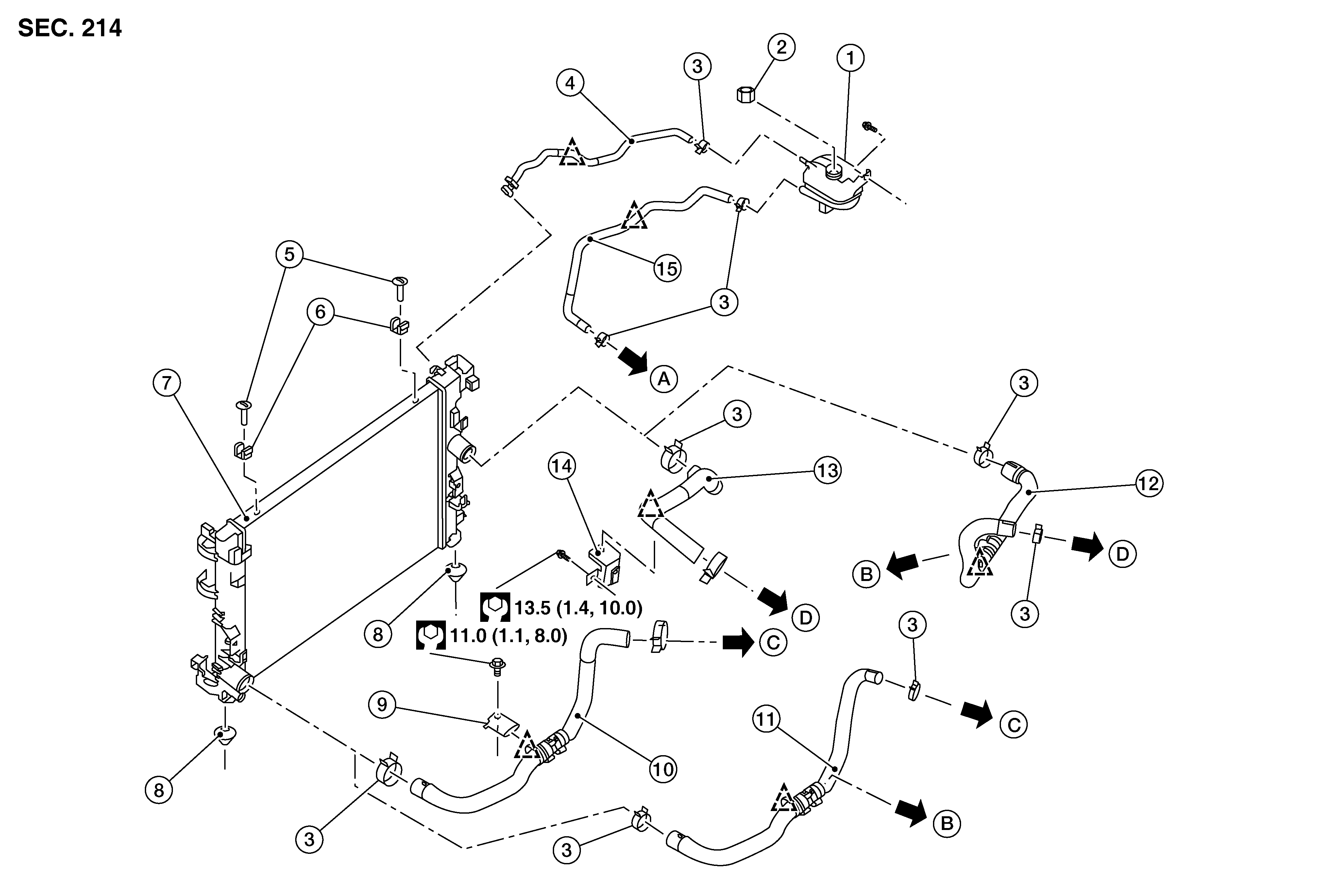

| 1. |
Reservoir tank |
2. |
Reservoir tank cap |
3. |
Clamp |
| 4. |
Reservoir hose (to radiator) |
5. |
Pin locator |
6. |
Mounting rubber (upper) |
| 7. |
Radiator |
8. |
Mounting rubber (lower) |
9. |
Bracket |
| 10. |
Radiator hose (lower) (M/T models only) |
11. |
Radiator hose (lower) (CVT models only) |
12. |
Radiator hose (upper) (CVT models only) |
| 13. |
Radiator hose (upper) (M/T models only) |
14. |
Bracket |
15. |
Reservoir hose (to water inlet) |
| A. |
To water pump housing. Refer to Exploded View . |
B. |
To oil cooler (CVT models only). Refer to Exploded View
. |
C. |
To water inlet. Refer to Exploded View . |
| D. |
To water outlet. Refer to Exploded View . |
 |
Clip |
