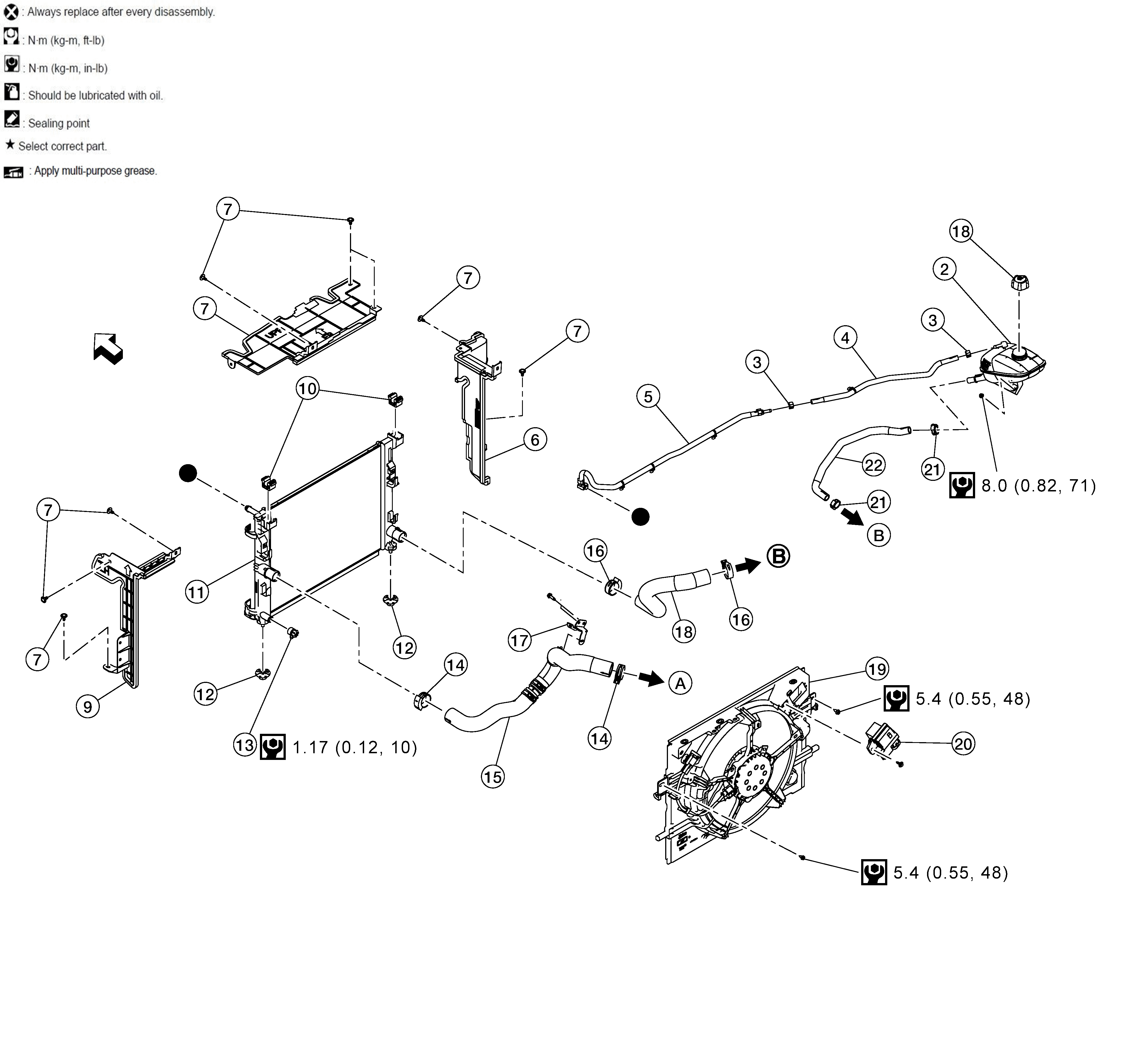

Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Reservoir tank cap | 2. | Reservoir tank | 3. | Clamp |
| 4. | Reservoir tank hose A | 5. | Reservoir tank hose B | 6. | Air guide (RH) |
| 7. | Clip | 8. | Air guide (upper) | 9. | Air guide (LH) |
| 10. | Mounting rubber (upper) | 11. | Radiator assembly | 12. | Mounting rubber (lower) |
| 13. | Drain cock | 14. | Clamp | 15. | Radiator hose (upper) |
| 16. | Clamp | 17. | Bracket | 18. | Radiator hose (lower) |
| 19. | Cooling fan assembly | 20. | Cooling fan control module | 21. | Clamp |
| 22. | Water hose | A. | To water outlet. Refer to Exploded View . | B. | To water inlet. Refer to Exploded View . |
| : Front | |||||
: Indicates that the part is connected at points with the same symbol in the actual vehicle.
