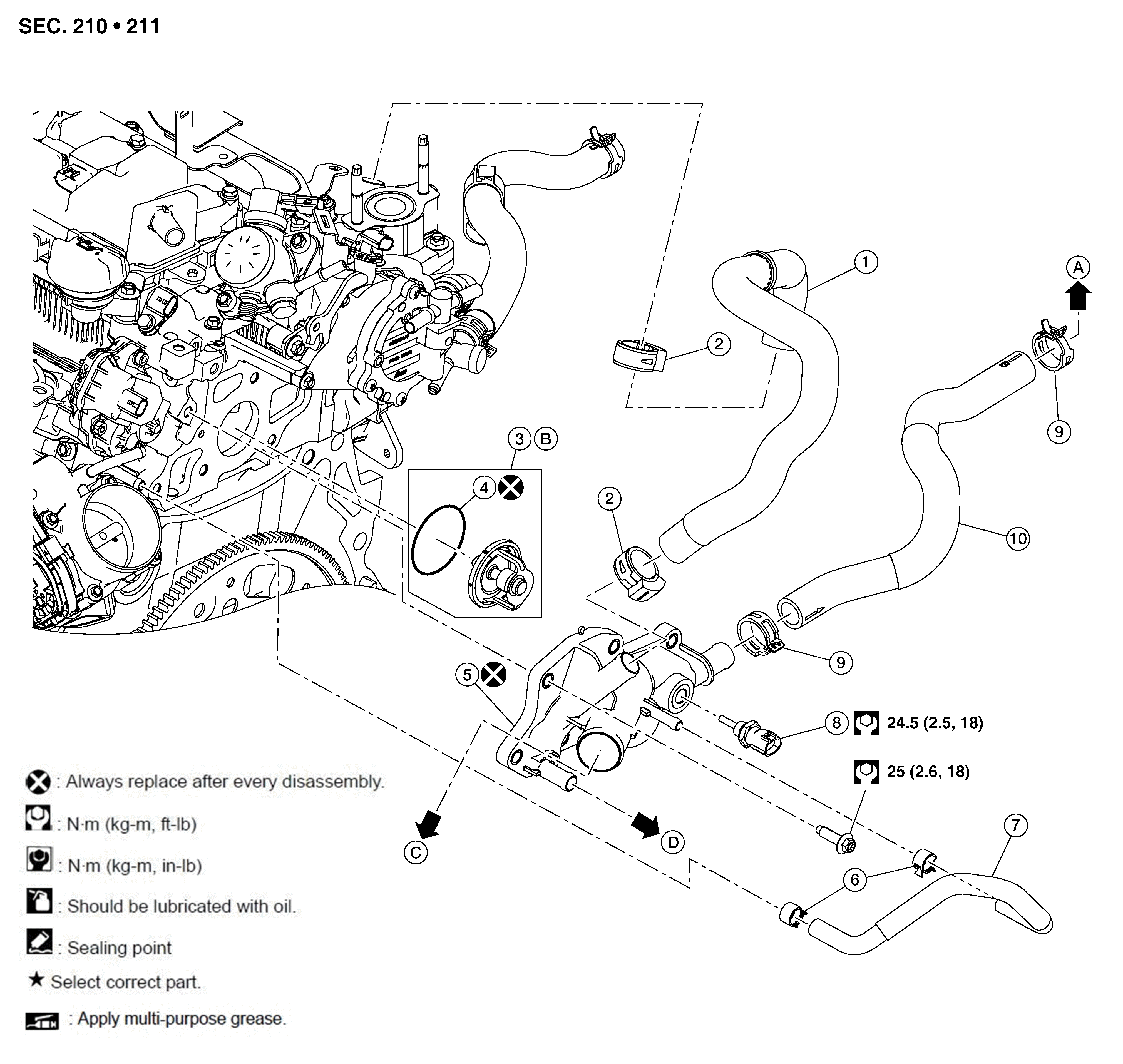

Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Water hose | 2. | Clamp | 3. | Water control valve |
| 4. | O-ring | 5. | Water outlet | 6. | Clamp |
| 7. | Water hose | 8. | Engine coolant temperature sensor | 9. | Clamp |
| 10. | Heater hose | A. | To heater core. Refer to Exploded View . | B. | Refer to Removal and Installation . |
| C. | To radiator hose (upper). Refer to Exploded View . | D. | To CVT oil warmer (CVT models only). Refer to Exploded View . | ||
