Front Camera

Component Function Within The System

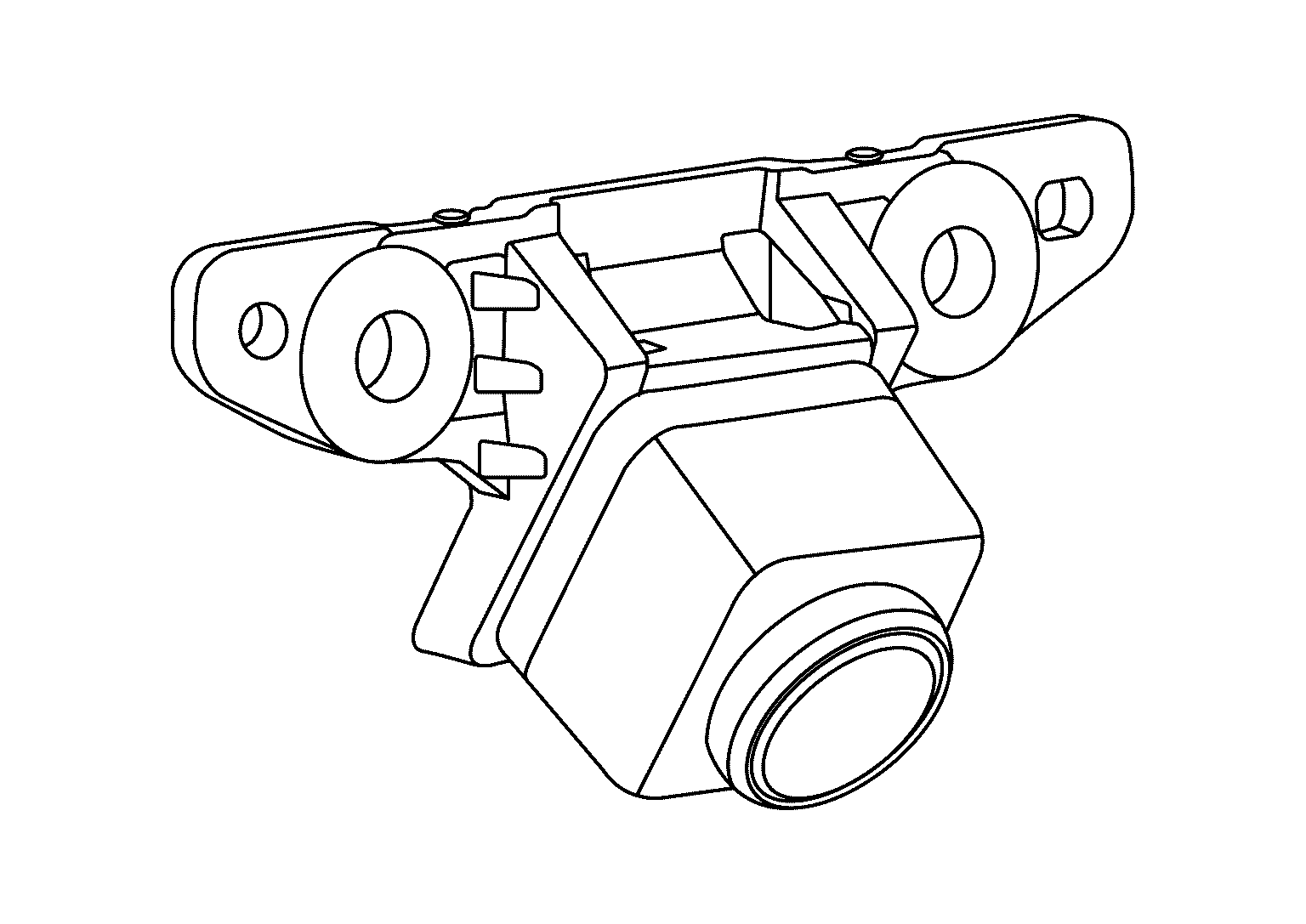

The front camera converts the vehicle front image into a digital code, and outputs it to around view monitor control unit.

Courtesy of NISSAN NORTH AMERICA, INC.

Individual Component Function

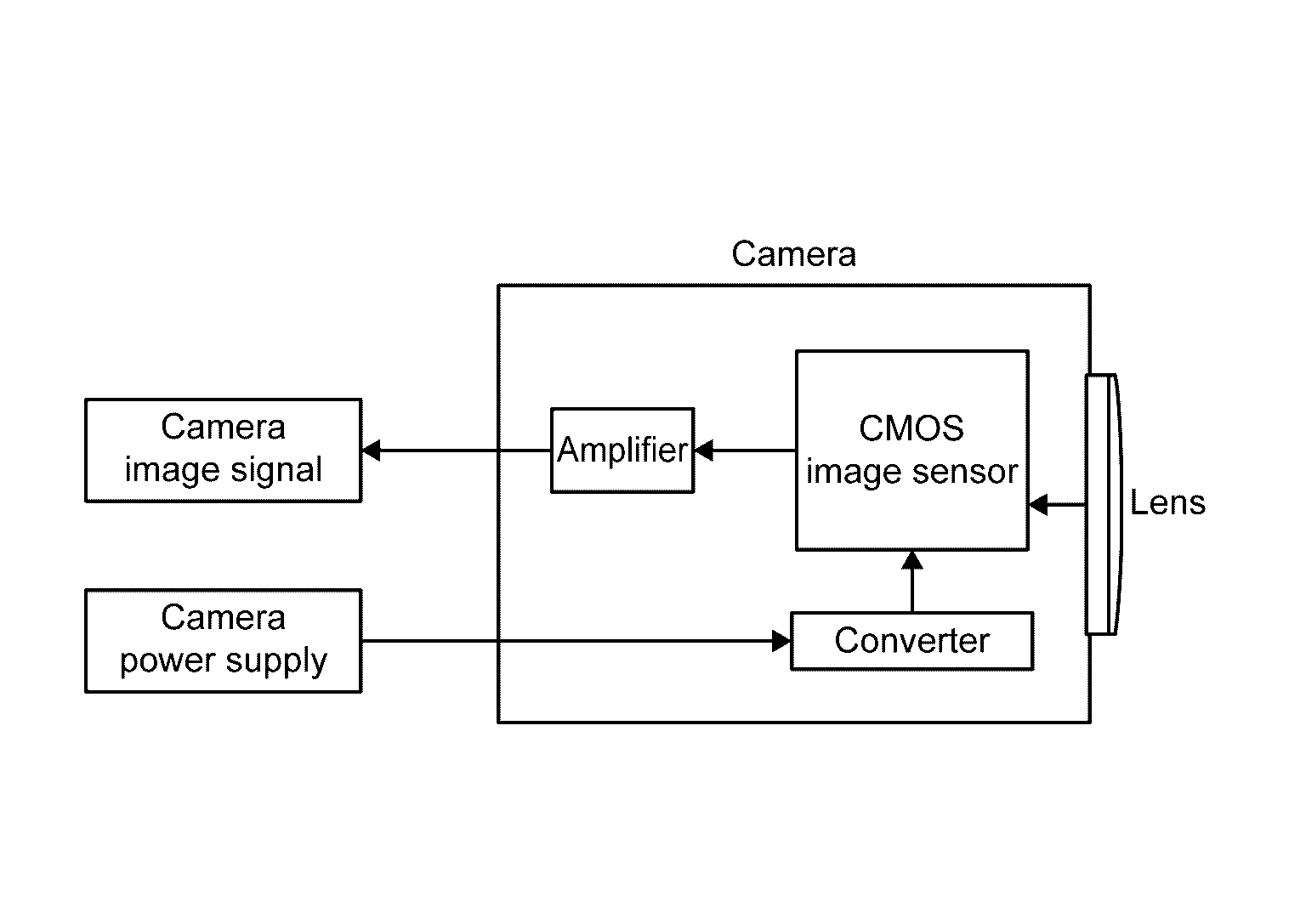

The front camera converts analog image information photographed through a lens into a digital code and outputs it.

Courtesy of NISSAN NORTH AMERICA, INC.

Specification

Image pickup element	1/4-inch CMOS image sensor
Image output signal	LVDS
Effective number of pixels	Approx. 1, 260, 000 pixels (1280 x 960)
Minimum brightness	1 lx
Angle of view	Horizontal view angle: Approx. 213.0° Vertical view angle: Approx. 151.0°

Component Operation

A power supply is supplied from around view monitor control unit in ignition switch ON position, and outputs the vehicle front image signal to the around view monitor control unit.

NOTE: When a image is not displayed, the camera outputs a image signal to regular around view monitor control unit.

Component Location

Front camera is installed to the front grille. Refer to Component Location .
