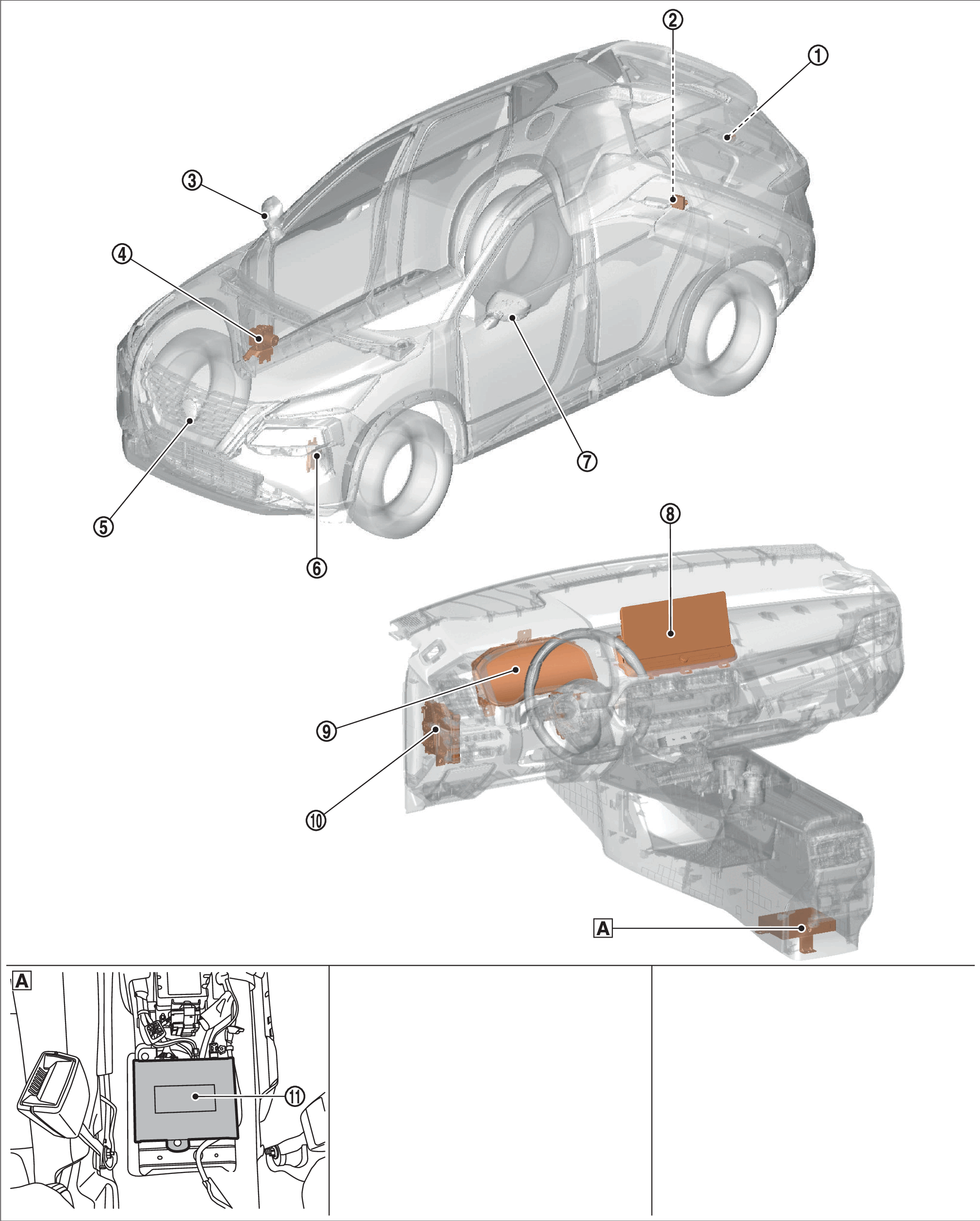

Component Location
| A | In the center console box |
| 1. | Rear camera | 2. | Sonar control unit. Refer to Component Location for detailed installation location. | 3. | Side camera RH |
| 4. | ABS actuator and electric unit (control unit). Refer to Component Location for detailed installation location. | 5. | Front camera | 6. | TCM. Refer to Component Location for detailed installation location. |
| 7. | Side camera LH | 8. | AV control unit | 9. | Combination meter |
| 10. | BCM. Refer to Component Location for detailed installation location. | 11. | Around view monitor control unit | ||
