Hood Switch

COMPONENT FUNCTION WITHIN SYSTEM

• Hood switch detects that hood is open, and then transmits hood switch signal to IPDM E/R.
• IPDM E/R transmits hood switch signal to BCM via CAN communication.
• If any door or hood is opened without using Intelligent Key, vehicle security system switches to the ALARM phase. Refer to System Description .

Courtesy of NISSAN NORTH AMERICA, INC.

INDIVIDUAL COMPONENT FUNCTION

Hood switch detects that hood is open/close condition.

COMPONENT OPERATION

Hood switch is transmits hood switch signal to IPDM E/R.

Courtesy of NISSAN NORTH AMERICA, INC.

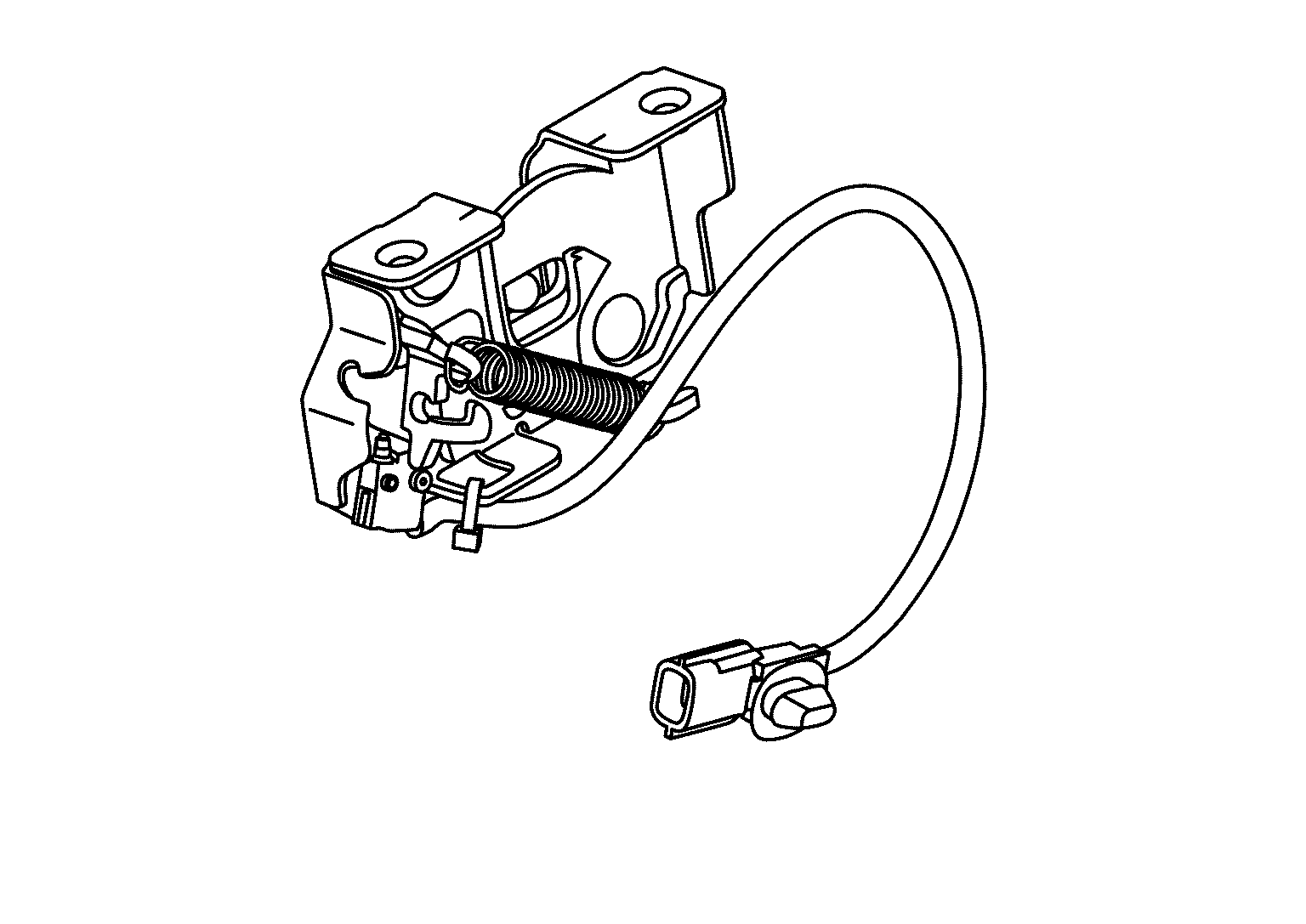

COMPONENT LOCATION

Hood switch is integrated in hood lock assembly. Refer to Component Location .
