Component Location

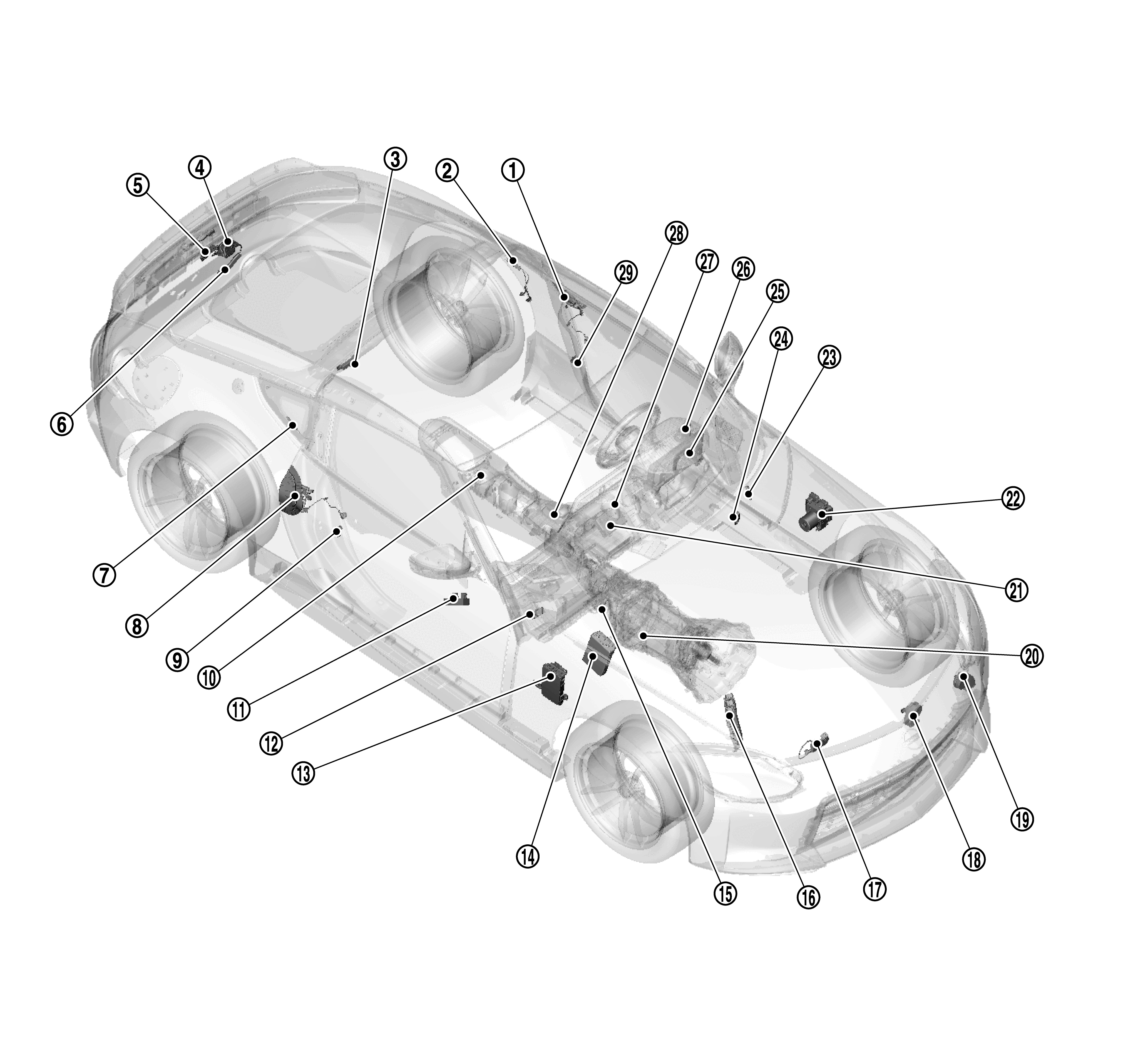

GNSDB154868Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Door request switch (driver side) SYMBOL Outside key antenna (rear LH) SYMBOL Inside key antenna (luggage room)
SYMBOL Back door lock (back door switch) SYMBOL Back door opener switch (back door) SYMBOL Outside key antenna (rear bumper)
SYMBOL Outside key antenna (rear RH) SYMBOL Door request switch (passenger side) SYMBOL Door switch (passenger side)
SYMBOL Inside key antenna (console) SYMBOL Power window switch (passenger side) (door lock and unlock switch) SYMBOL Remote keyless entry receiver
SYMBOL BCM Refer to Component Location for detailed installation location. SYMBOL IPDM E/R. Refer to Component Location for detailed installation location. SYMBOL Park/neutral position switch *2
SYMBOL ECM Refer to Component Location for detailed installation location. SYMBOL Hood switch SYMBOL Horn high
SYMBOL Horn low SYMBOL A/T assembly (TCM) *1. Refer to Component Location for detailed installation location. SYMBOL TCU. Refer to Component Location for detailed installation location.
SYMBOL ABS actuator and electric unit (control unit) Refer to Component Location for detailed installation location. SYMBOL Clutch interlock switch *2 SYMBOL Stop lamp switch
SYMBOL Combination meter SYMBOL Power window main switch (door lock and unlock switch) SYMBOL Push-button ignition switch
SYMBOL Electric shift control module *1 SYMBOL Door switch (driver side)

*1: A/T models

*2: M/T models
