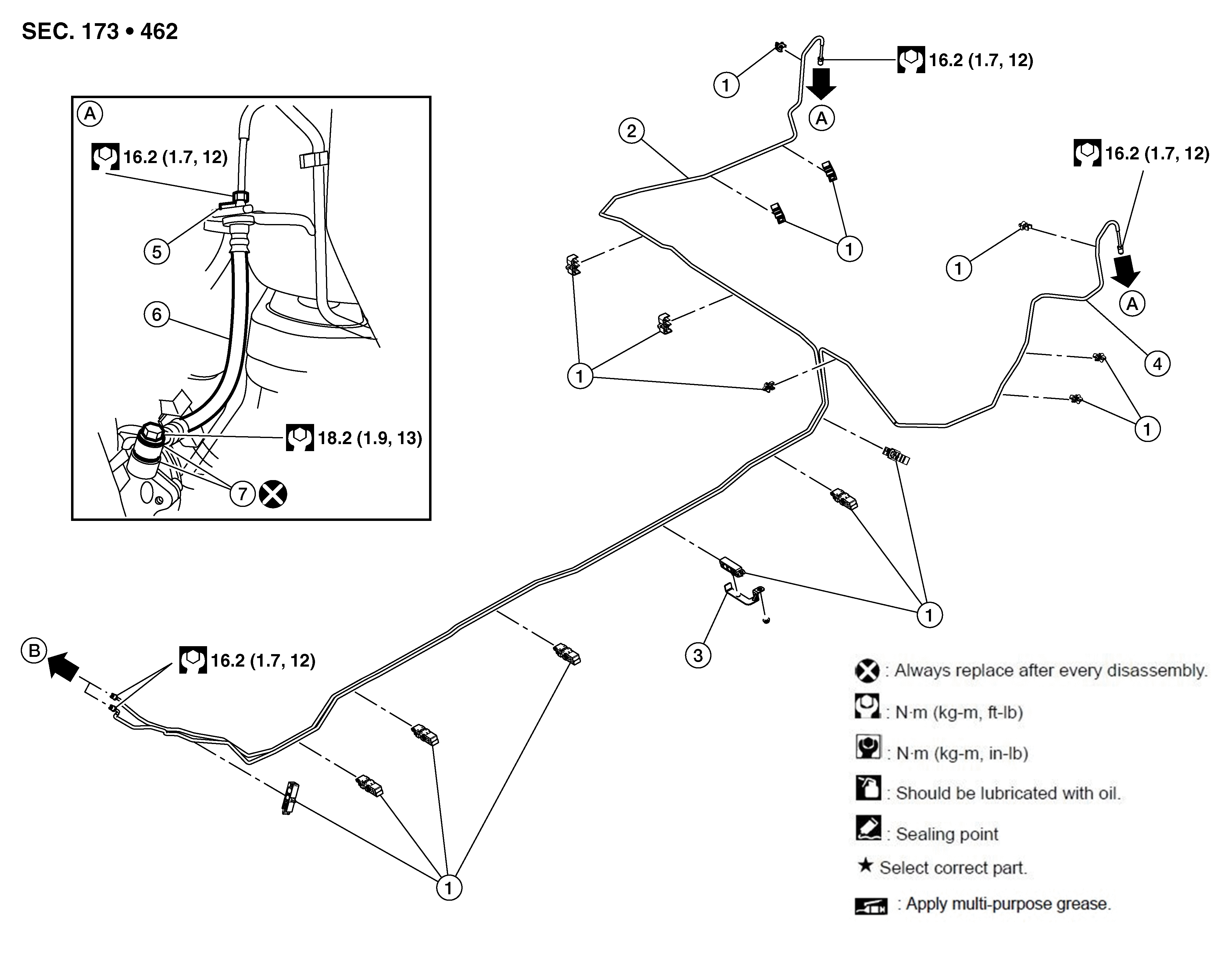

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Clamp |
2. |
Rear brake tube (RH) |
3. |
Bracket |
|
4. |
Rear brake tube (LH) |
5. |
Lock plate |
6. |
Rear brake hose |
|
7. |
Copper sealing washers |
A. |
To rear brake hose |
B. |
To front brake tube. Refer to Exploded View . |
