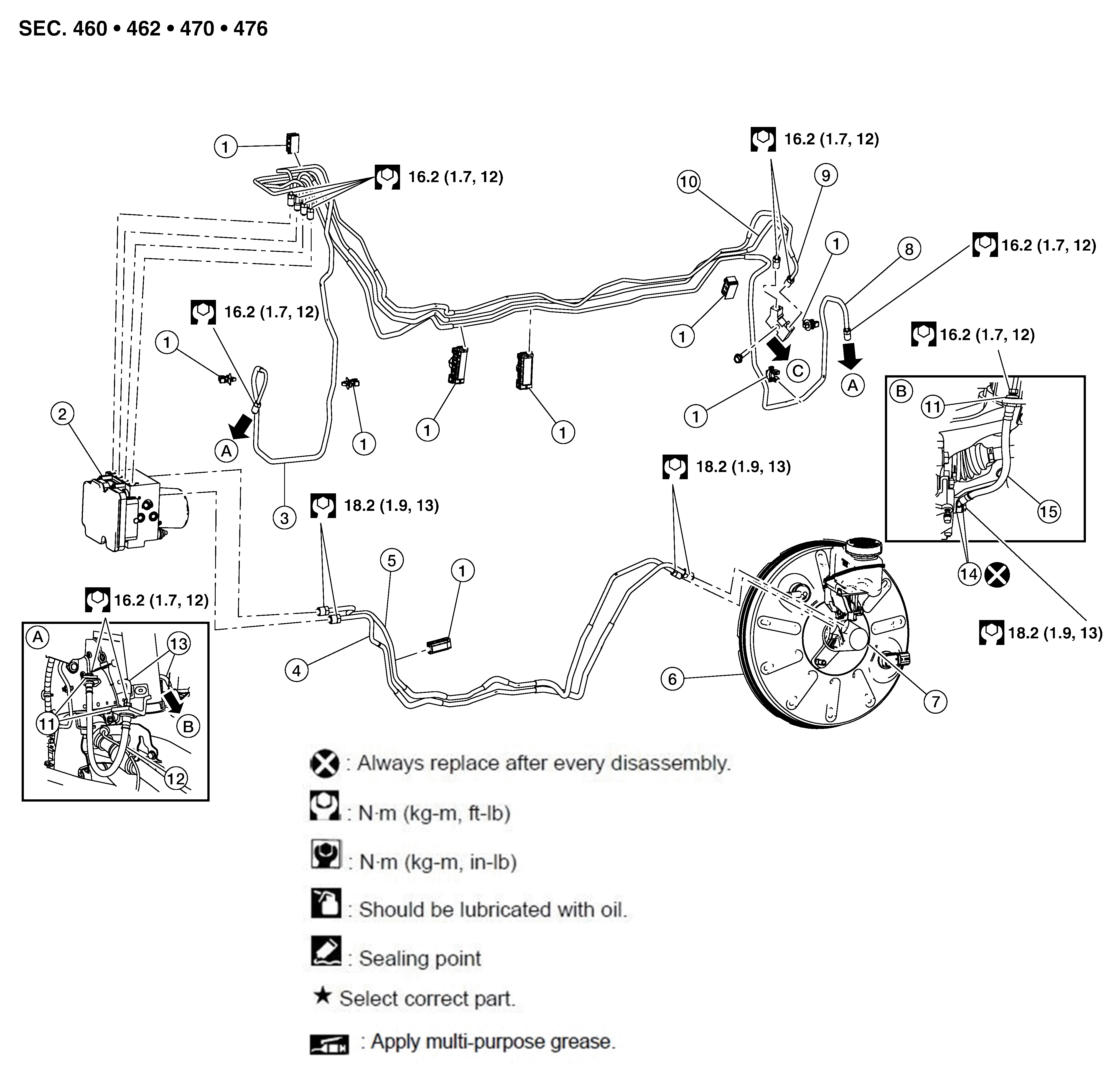

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Clamp |
2. |
ABS actuator and electric unit (control unit) |
3. |
Brake tube (RH) |
|
4. |
Master cylinder secondary to ABS actuator brake tube |
5. |
Master cylinder primary to ABS actuator brake tube |
6. |
Brake booster |
|
7. |
Master cylinder assembly |
8. |
Brake tube (LH) |
9. |
Brake tube to connector rear (LH) |
|
10. |
Brake tube to connector rear (RH) |
11. |
Lock plates |
12. |
Front brake rear hose |
|
13. |
Front brake crossover tube |
14. |
Copper sealing washers |
15. |
Front brake front hose |
|
A. |
To front brake rear hose |
B. |
To front brake front hose |
C. |
To rear brake tube. Refer to Exploded View . |
