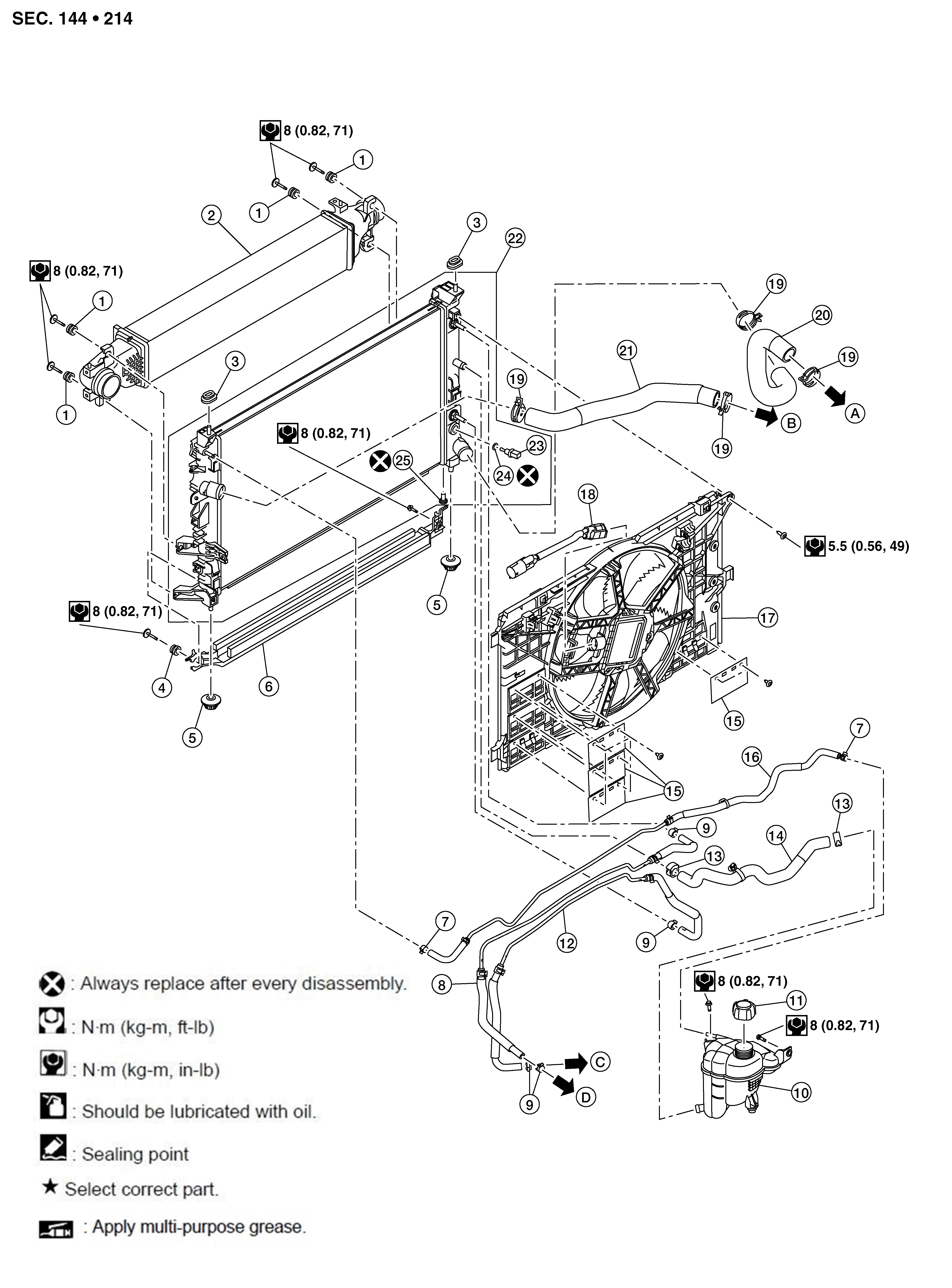

Without Tow Package
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Mounting rubber |
2. |
Charge air cooler |
3. |
Mounting rubber (upper) |
|
4. |
Mounting rubber |
5. |
Mounting rubber (lower) |
6. |
Radiator air guide (lower) |
|
7. |
Clamp |
8. |
CVT fluid warmer hose A |
9. |
Clamp |
|
10. |
Reservoir tank |
11. |
Reservoir tank cap |
12. |
CVT fluid warmer hose B |
|
13. |
Clamp |
14. |
Reservoir tank hose |
15. |
Cooling fan assembly cover |
|
16. |
Radiator overflow hose |
17. |
Cooling fan assembly |
18. |
Cooling fan assembly harness |
|
19. |
Clamp |
20. |
Radiator hose (lower) |
21. |
Radiator hose (upper) |
|
22. |
Radiator assembly |
23. |
Engine coolant temperature sensor 2 |
24. |
O-ring |
|
25. |
Radiator drain plug |
A. |
To water pump housing. Refer to Exploded View . |
B. |
To multi-way control valve. Refer to Exploded View . |
|
C. |
To CVT fluid cooler pipe A. Refer to Exploded View - Without Tow Package . |
D. |
To CVT oil warmer. Refer to Exploded View . |
