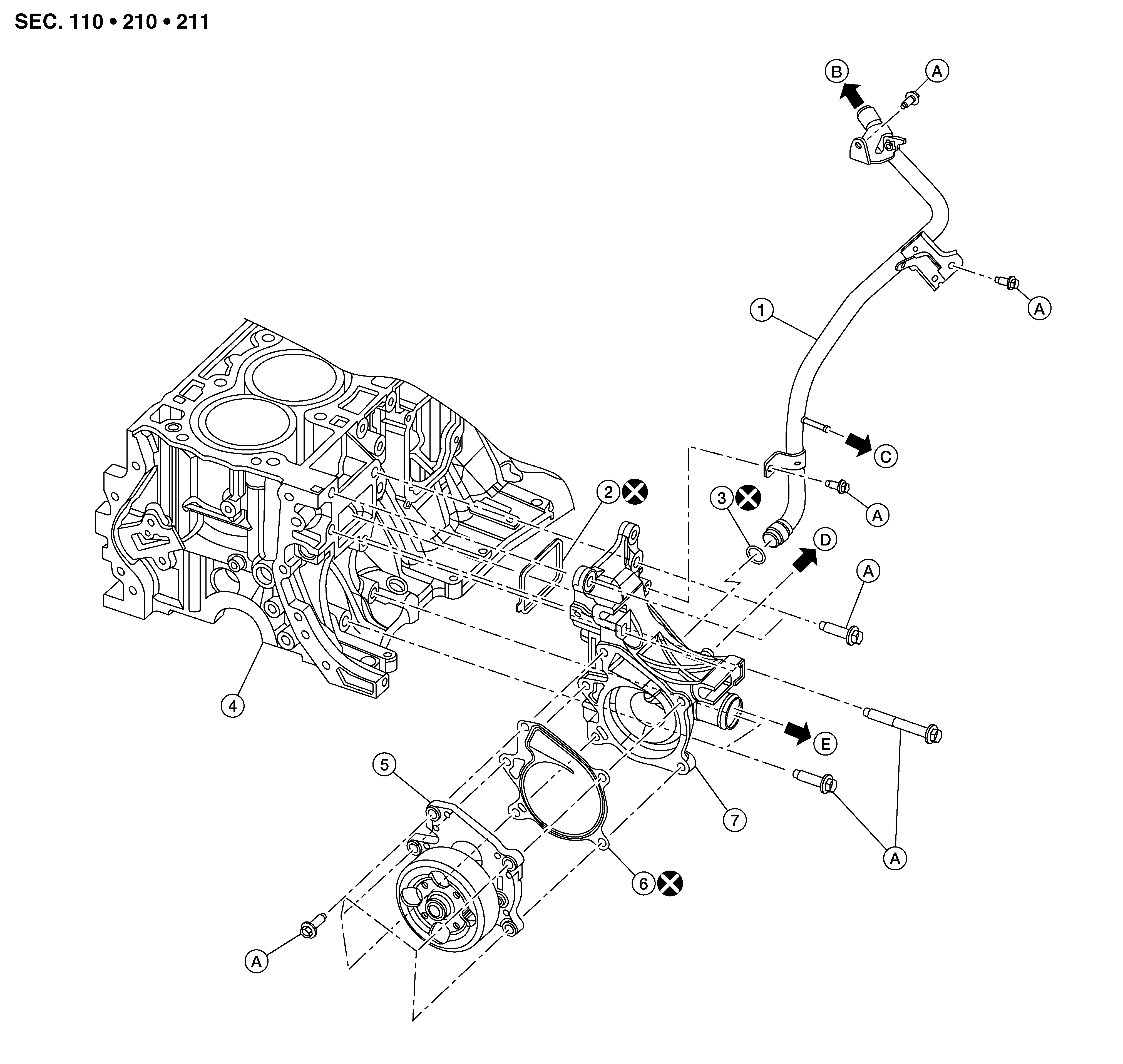

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Water inlet pipe |
2. |
Water pump housing gasket |
3. |
O-ring |
|
4. |
Cylinder block |
5. |
Water pump |
6. |
Water pump gasket |
|
7. |
Water pump housing |
A. |
B. |
To heater core. Refer to Exploded View . |
|
|
C. |
To turbocharger water outlet hose B. Refer to Exploded View . |
D. |
To water hose. Refer to Exploded View . |
E. |
To radiator hose (lower). Refer to Exploded View . |
