With Tow Package

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

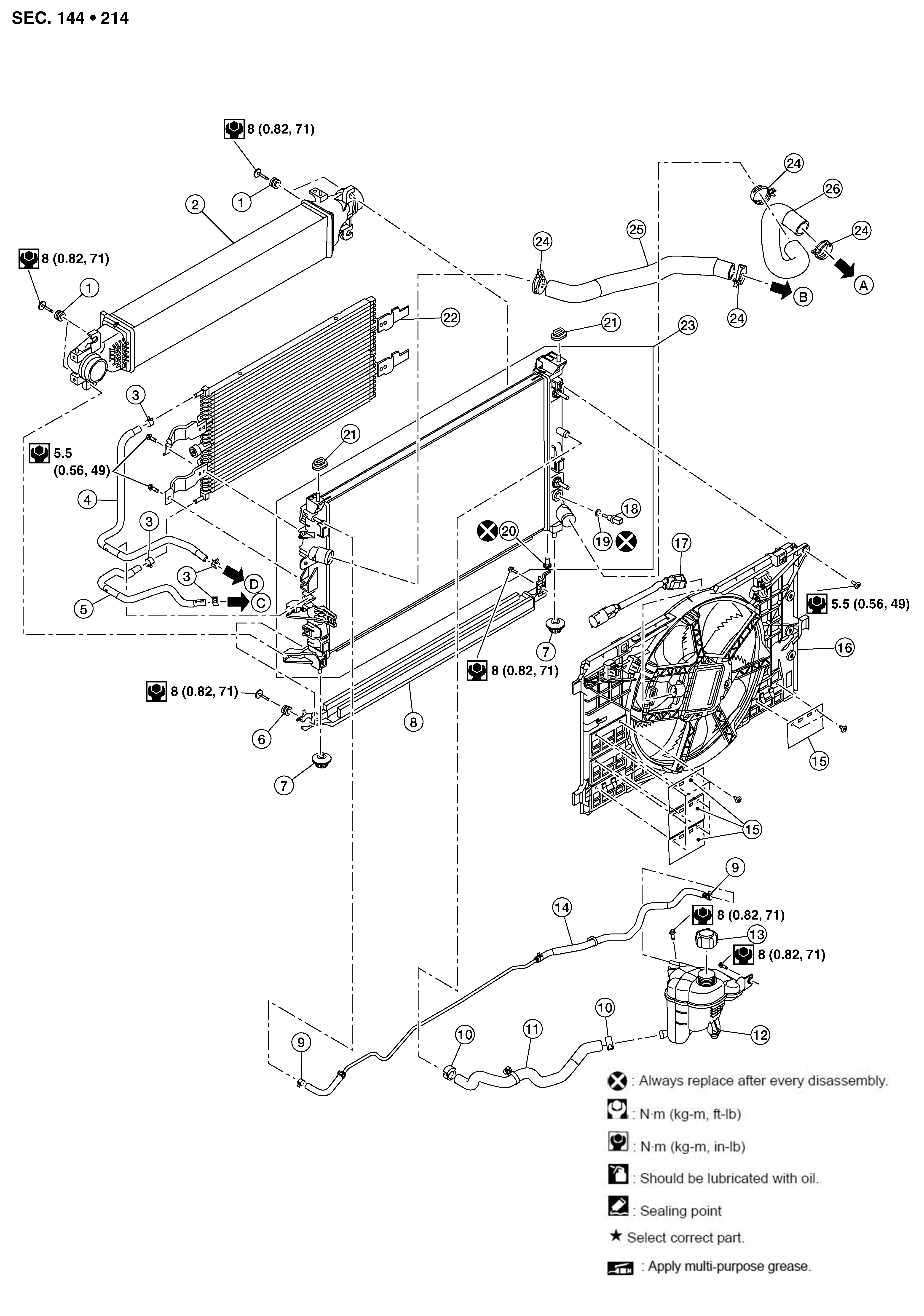

Fig 1: Radiator W/Tow Package With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mounting rubber	2.	Charge air cooler	3.	Clamp
4.	CVT fluid cooler hose A	5.	CVT fluid cooler hose B	6.	Mounting rubber
7.	Mounting rubber (lower)	8.	Radiator air guide (lower)	9.	Clamp
10.	Clamp	11.	Reservoir tank hose	12.	Reservoir tank
13.	Reservoir tank cap	14.	Radiator overflow hose	15.	Cooling fan assembly cover
16.	Cooling fan assembly	17.	Cooling fan assembly harness	18.	Engine coolant temperature sensor 2
19.	O-ring	20.	Radiator drain plug	21.	Mounting rubber (upper)
22.	CVT fluid cooler	23.	Radiator assembly	24.	Clamp
25.	Radiator hose (upper)	26.	Radiator hose (lower)	A.	To water pump housing. Refer to Exploded View .
B.	To multi-way control valve. Refer to Exploded View .	C.	To CVT fluid cooler pipe A. Refer to Exploded View - With Tow Package .	D.	To CVT oil warmer. Refer to Exploded View .
