Work Procedure

WARNING: Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION: Fully understand the following items well before the road test;

LDW SYSTEM ACTION TEST
Perform the LDW system action test. Refer to Inspection Procedure .

GO TO 2.
CHECK BSW SYSTEM SETTING
1. Start the engine.
2. Check that the BSW system setting can be enabled/disabled on the combination meter.
3. Turn OFF the ignition switch and wait for 5 seconds or more.
4. Check that the previous setting is saved when the engine starts again.
GO TO 3.

BSW SYSTEM ACTION TEST

Check BSW operation according to the following table.

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.)	Turn signal condition	Status of vehicle detection within detection area	Indication on the BSW indicator	Indication on the combination meter		Buzzer
Vehicle speed (Approx.)	Turn signal condition	Status of vehicle detection within detection area	Indication on the BSW indicator	Left part	Right part	Buzzer

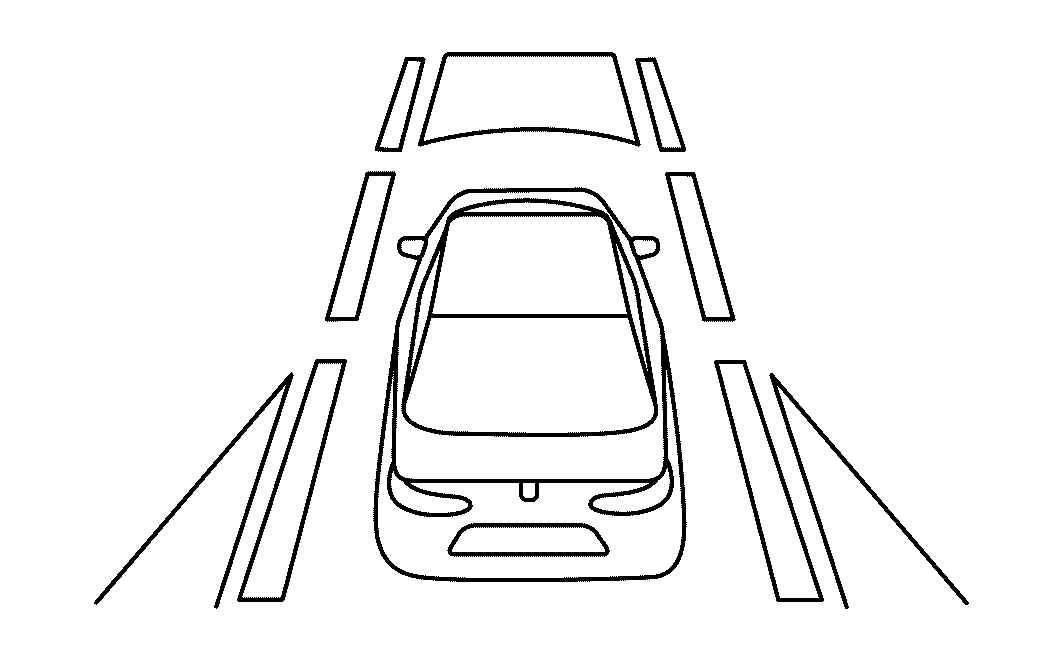

Less than 29 km/h (18 MPH)	--	--	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF
32 km/h (20 MPH) or more	--	Vehicle is not detected	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF
	OFF	Vehicle is detected	ON	White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF

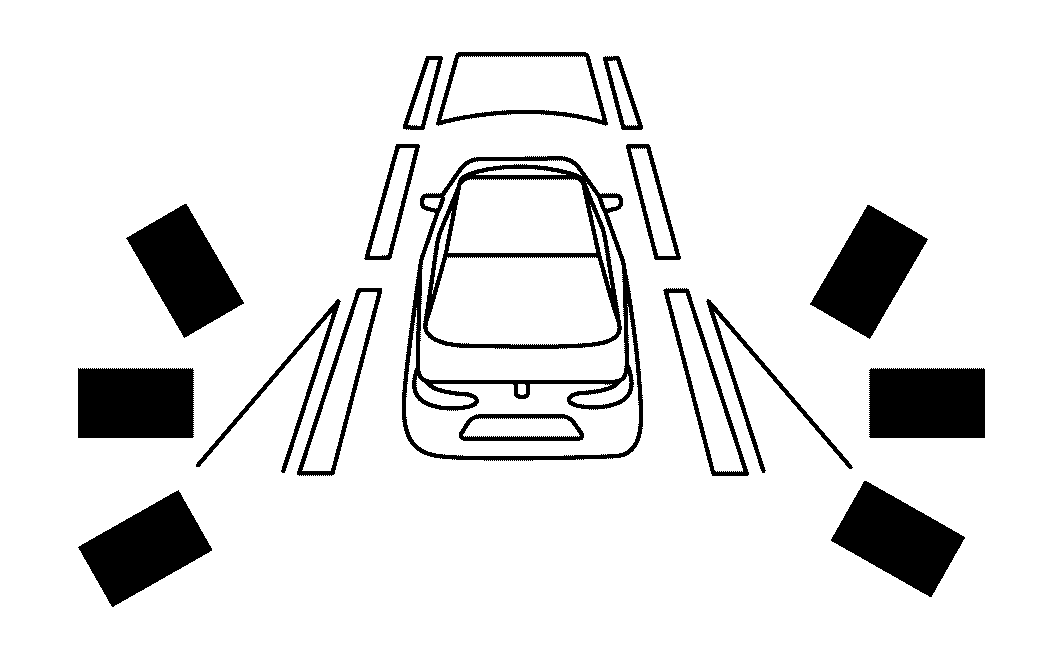

	ON (vehicle detected direction)	Before turn signal operates Vehicle is detected	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	--	Short continuous beeps
	ON (vehicle detected direction)	Vehicle is detected after turn signal operates	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF

INSPECTION END
