Inspection Procedure
WARNING:
Be careful of traffic conditions and safety around the vehicle when performing road test.
CAUTION:
- Fully understand the following items well before the road test;
- Precautions: Refer to Precautions for LDW System Service .
- System description for LDW: Refer to System Description .
- Handling precaution: Refer to Precautions for Lane Departure Warning .
- CHECK LDW SYSTEM SETTING
- Start the engine.
- Check that the LDW system setting can be enabled/disabled on the combination meter.
- Turn OFF the ignition switch and wait for 30 seconds or more.
- Check that the previous setting is saved when the engine starts again.
GO TO 2.
- ACTION TEST FOR LDW
- Enable the setting of the LDW system on the combination meter.
- Turn LDW system display ON.
- Check the LDW operation according to the following table.
Vehicle condition/ Driver's operation
Action
Vehicle speed
(Approx.)
Turn signal condition
Status of vehicle close to lane marker

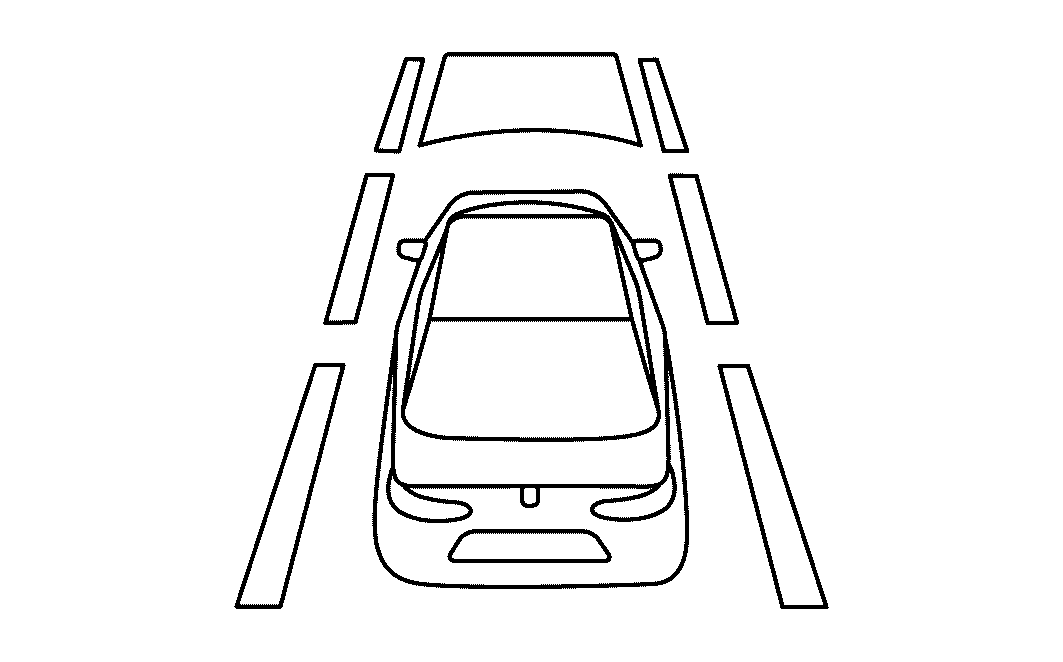

Indication on the combination meter
Buzzer
Left part
Right part
Less than 50 km/h (31 MPH)
--
Close to lane marker
White
--
OFF
60 km/h (37 MPH) or more
- OFF
- ON (Opposite to the deviate side)
Close to lane marker
Yellow (Blink)
--
Short continuous beeps
ON (Deviate side)
Close to lane marker
White
--
OFF
NOTE: After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 50 km/h (31 MPH). Refer to System Description .
INSPECTION END
