Exploded View

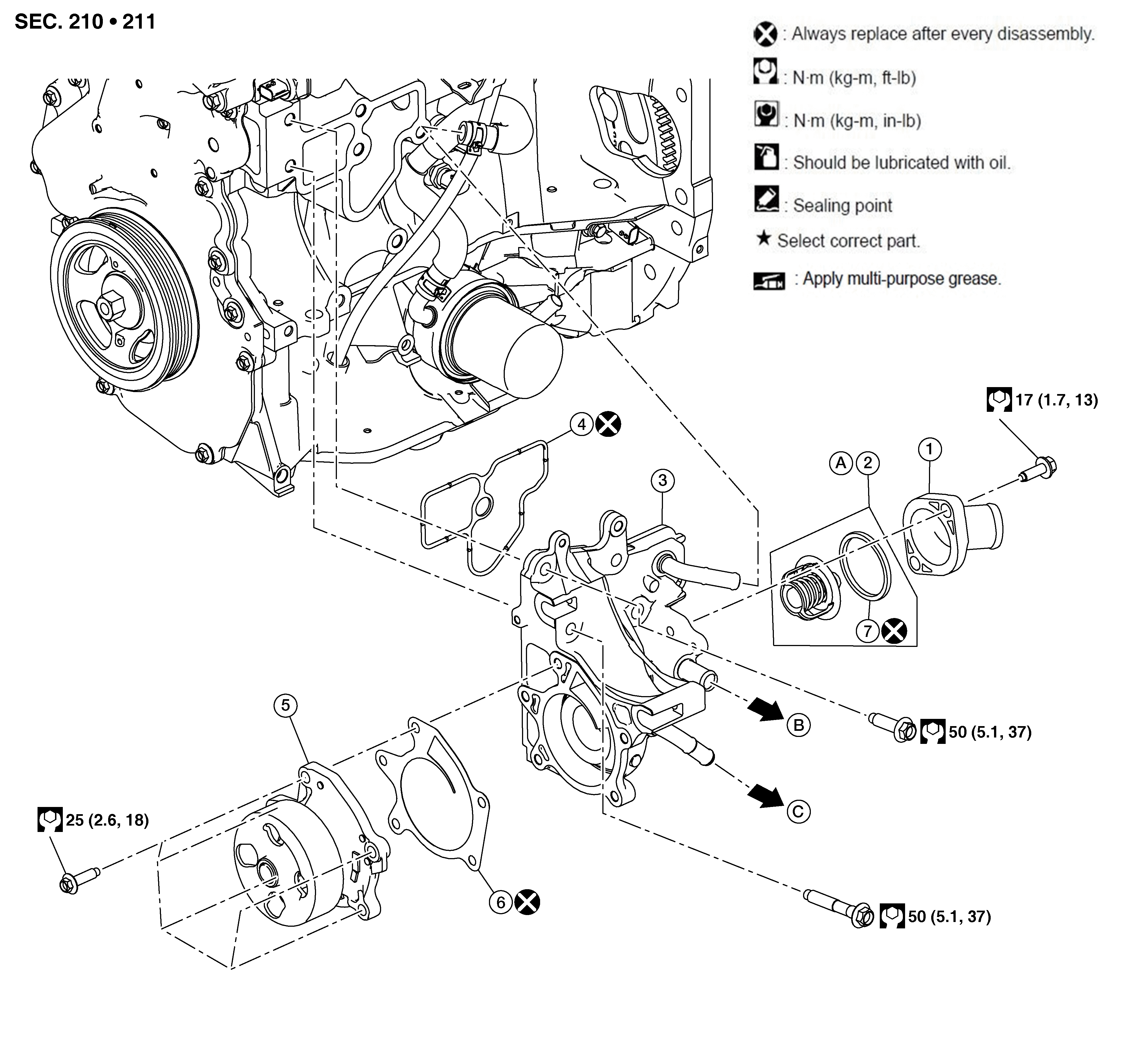

Fig 1: Water Pump Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Water inlet	2.	Thermostat assembly	3.	Water pump housing
4.	Water pump housing gasket	5.	Water pump	6.	Water pump gasket
7.	O-ring	A.	Refer to Removal and Installation .	B.	To reservoir tank. Refer to Exploded View .
C.	To CVT oil warmer (CVT models only). Refer to Exploded View . To oil cooler (M/T models only). Refer to Exploded View .
