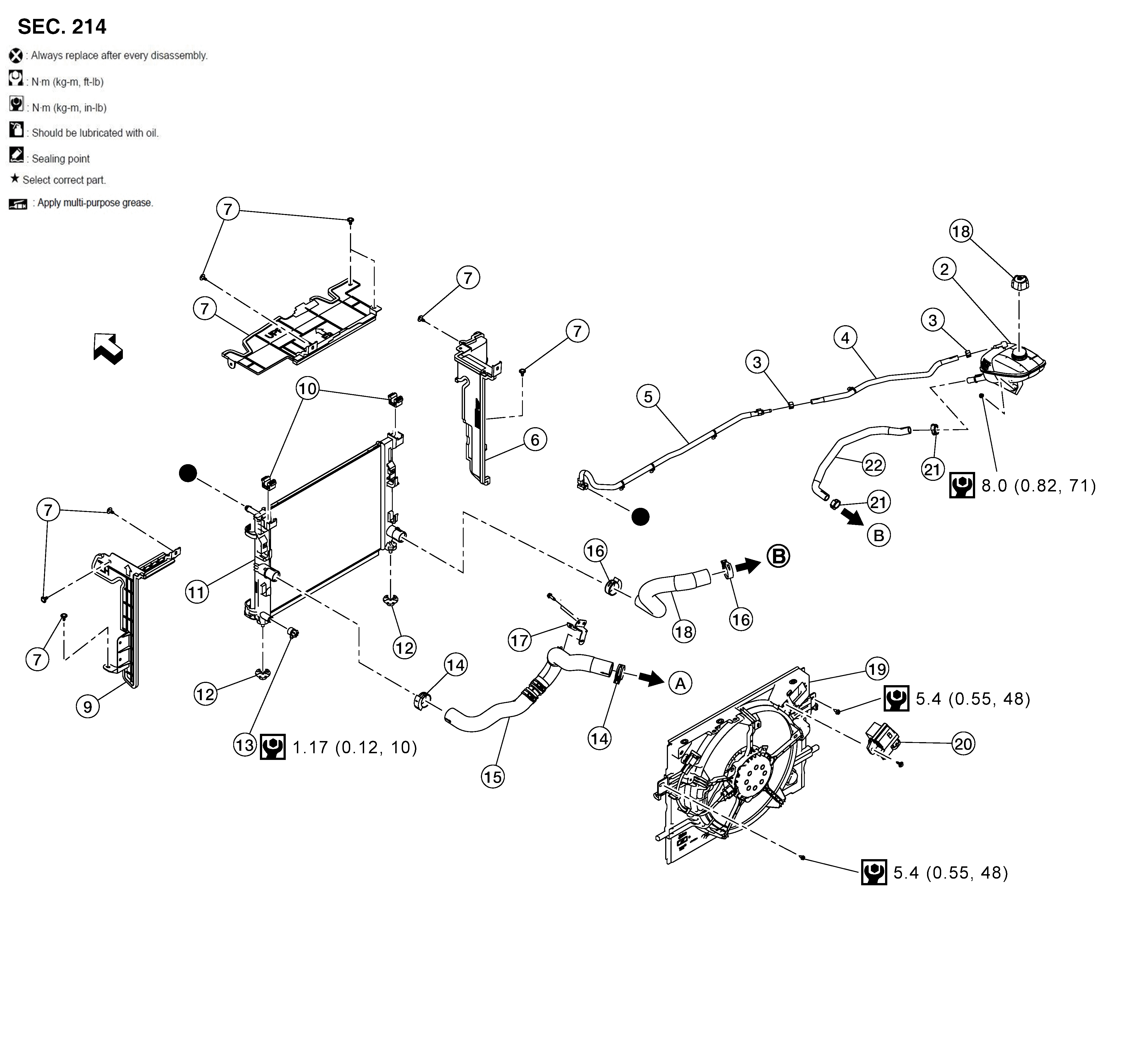

Exploded View
|
1. |
Reservoir tank cap |
2. |
Reservoir tank |
3. |
Clamp |
|
4. |
Reservoir tank hose A |
5. |
Reservoir tank hose B |
6. |
Air guide (RH) |
|
7. |
Clip |
8. |
Air guide (upper) |
9. |
Air guide (LH) |
|
10. |
Mounting rubber (upper) |
11. |
Radiator assembly |
12. |
Mounting rubber (lower) |
|
13. |
Radiator drain plug |
14. |
Clamp |
15. |
Radiator hose (upper) |
|
16. |
Clamp |
17. |
Bracket |
18. |
Radiator hose (lower) |
|
19. |
Cooling fan assembly |
20. |
Cooling fan control module |
21. |
Clamp |
|
22. |
Water hose |
A. |
To water outlet. Refer to Exploded View . |
B. |
To water inlet. Refer to Exploded View . |
|
|
: Front |
: Indicates that the part is connected at points with the same symbol in the actual vehicle.
