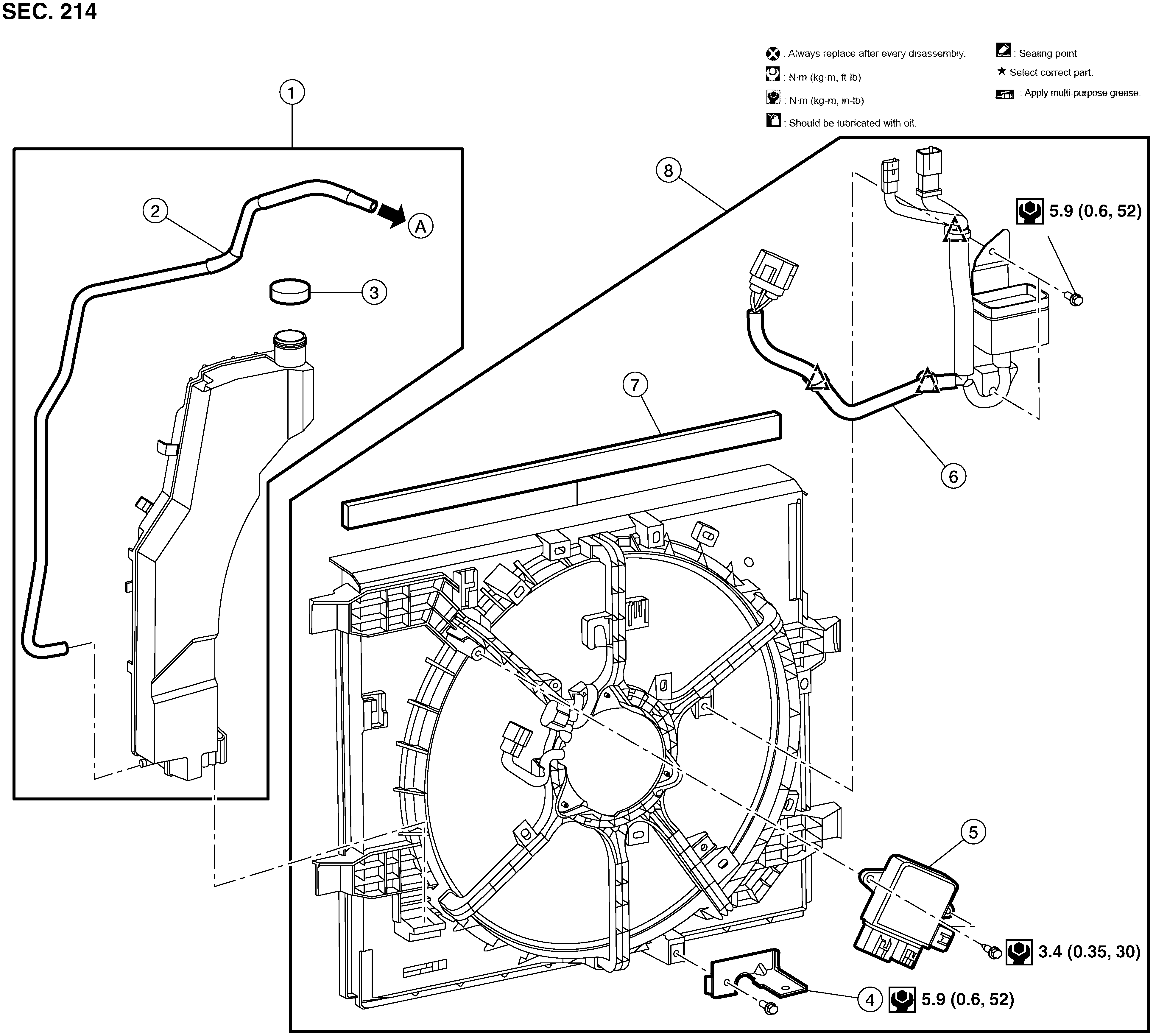

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Reservoir tank assembly |
2. |
Reservoir tank hose |
3. |
Reservoir tank cap |
|
4. |
Bracket |
5. |
Cooling fan control module |
6. |
Cooling fan relay |
|
7. |
Cooling fan assembly seal |
8. |
Cooling fan assembly |
A. |
To water outlet adapter. Refer to Exploded View. |
