Removal and Installation: Removal

  1. Remove the shift selector finisher. Refer to Exploded View .

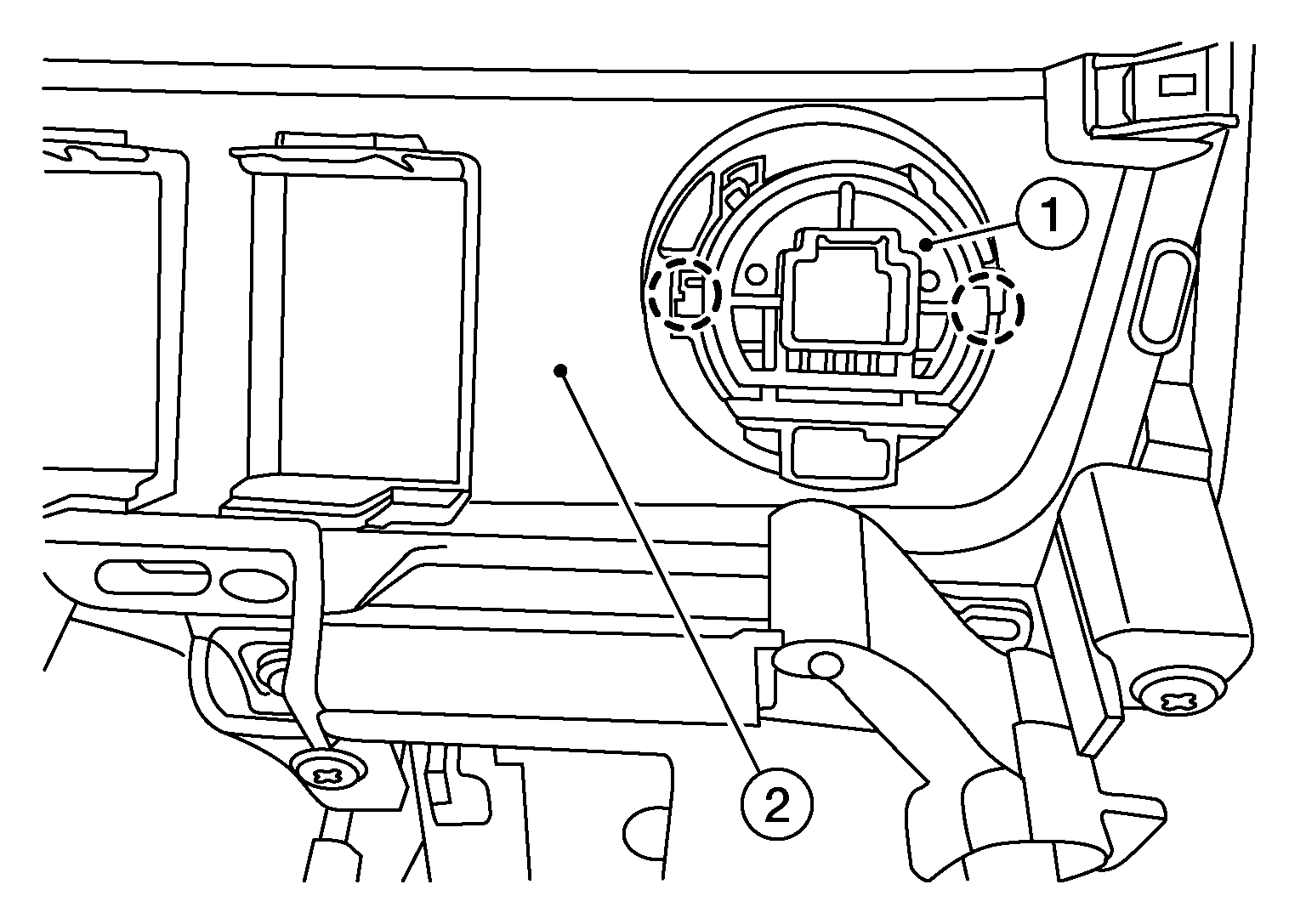

  2. Release the pawls on each side of NATS antenna amp (1) using suitable tool and remove from the shift selector finisher (2).
    GNSAWMIA1792Z-792Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

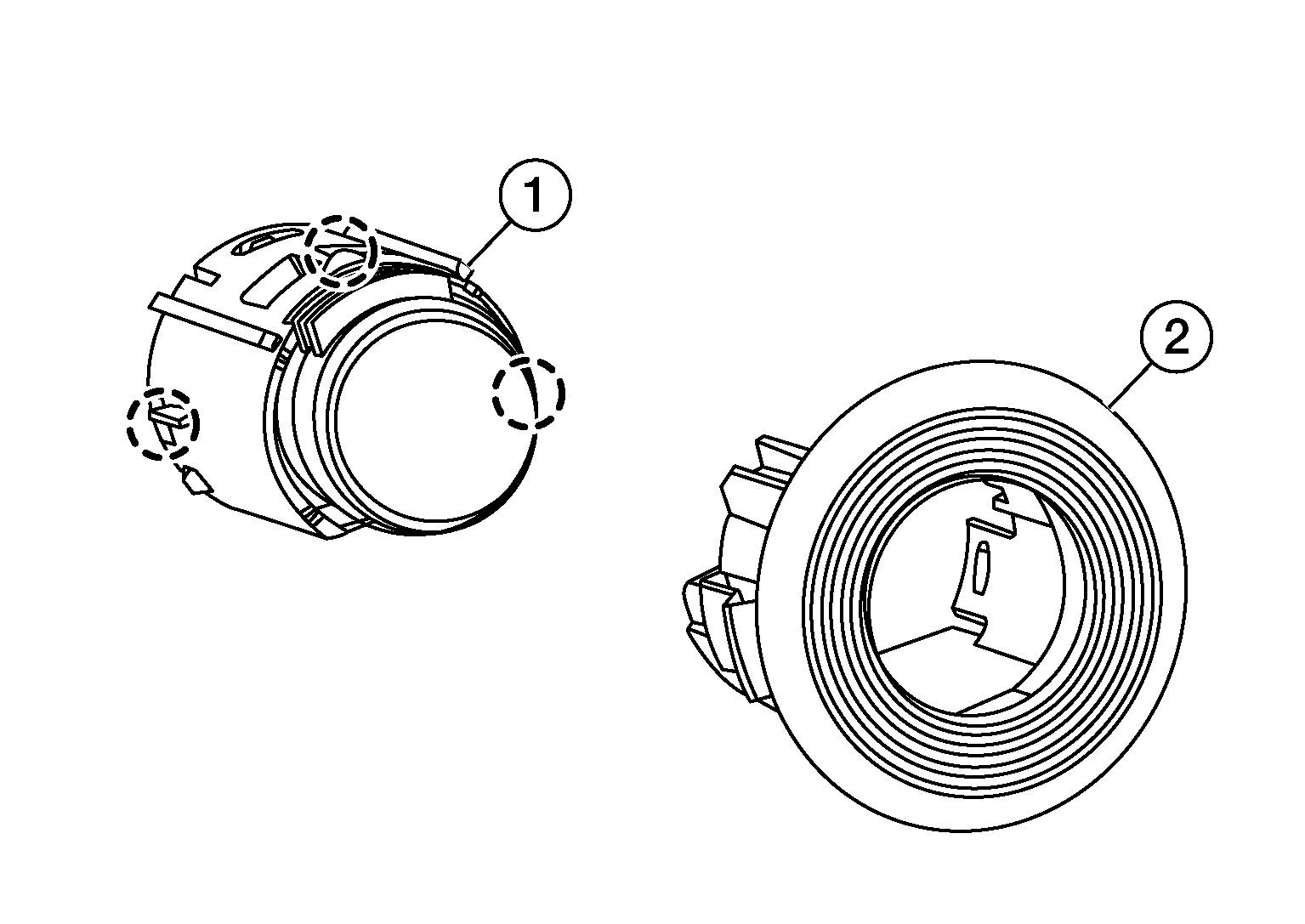

  3. Release the pawl on each side using suitable tool and remove the push-button ignition switch (1) from the NATS antenna amp (2).
    GNSAWKIA2911Z-911Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
