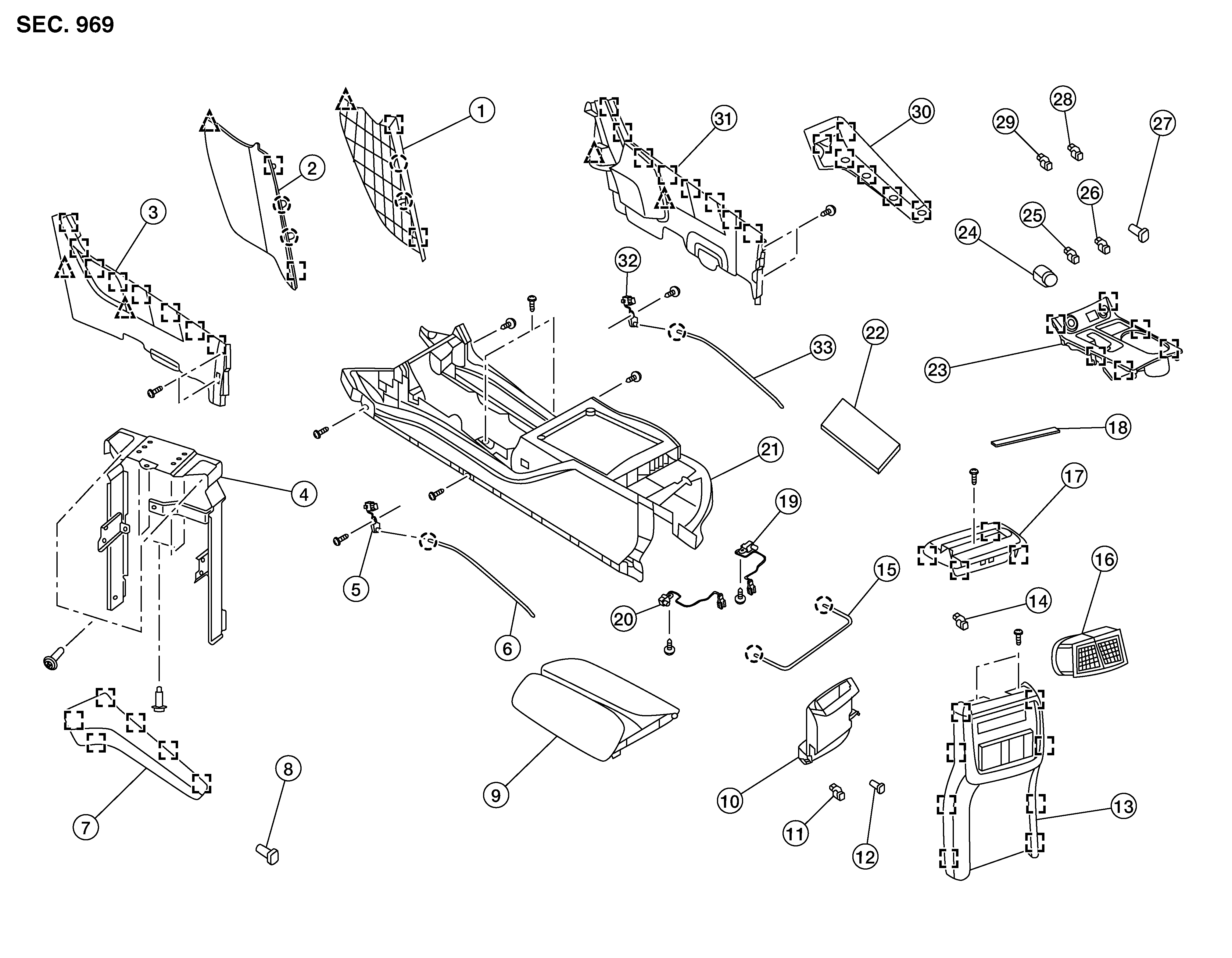

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center console side finisher (RH)	2.	Center console side finisher (LH)	3.	Center console lower side finisher (LH)
4.	Center console reinforcement bracket	5.	Mood lamp [front console LH (if equipped)]	6.	Mood lamp lens [front console LH (if equipped)]
7.	Center console upper side finisher (LH)	8.	Rear center ventilator duct	9.	Center console lid
10.	Rear center ventilator duct	11.	2nd row heated seat switch [LH (if equipped)]	12.	Rear USB interface
13.	Center console rear finisher	14.	2nd row heated seat switch [RH (if equipped)]	15.	Mood lamp lens [rear console (if equipped)]
16.	Rear ventilator grille assembly	17.	Center console tray	18.	Center console rear tray mat
19.	Mood lamp [rear console RH (if equipped)]	20.	Mood lamp [rear console LH (if equipped)]	21.	Center console assembly
22.	Center console front tray mat	23.	Shift selector finisher	24.	Push-button ignition switch
25.	Front heated seat switch [LH (if equipped)]	26.	Front heated seat switch [RH (if equipped)]	27.	Front power socket
28.	Front climate controlled seat switch [RH (if equipped)]	29.	Front climate controlled seat switch [LH (if equipped)]	30.	Center console upper side finisher (RH)
31.	Center console lower side finisher (RH)	32.	Mood lamp [front console RH (if equipped)]	33.	Mood lamp lens [front console RH (if equipped)]
	Pawl		Metal clip		Clip
