Removal and Installation: Removal

  1. Remove instrument pad (LH). Refer to Exploded View .

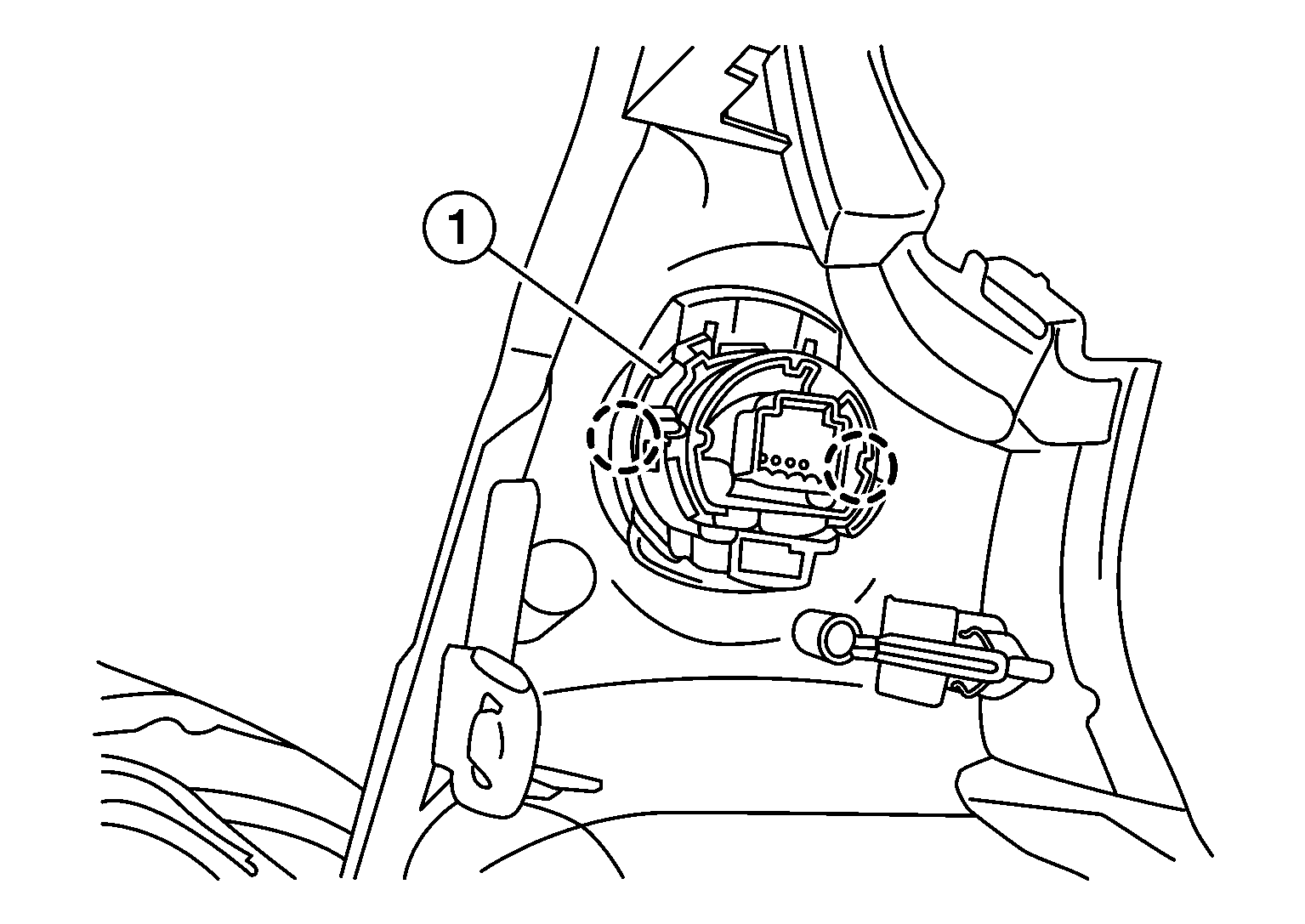

  2. Release the pawl on each side of NATS antenna amp. (1) using a suitable tool and remove from the instrument pad (LH).
    GNSALMIA0583Z-583Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  3. Release the pawl on each side using a suitable tool and remove the push-button ignition switch from the NATS antenna amp.
