Removal And Installation: Removal

  1. Remove the shift selector finisher. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
  2. Release the pawls on each side of NATS antenna amp (1) using suitable tool and remove from the shift selector finisher (2).
    GNSAWMIA1792ZZ-792Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

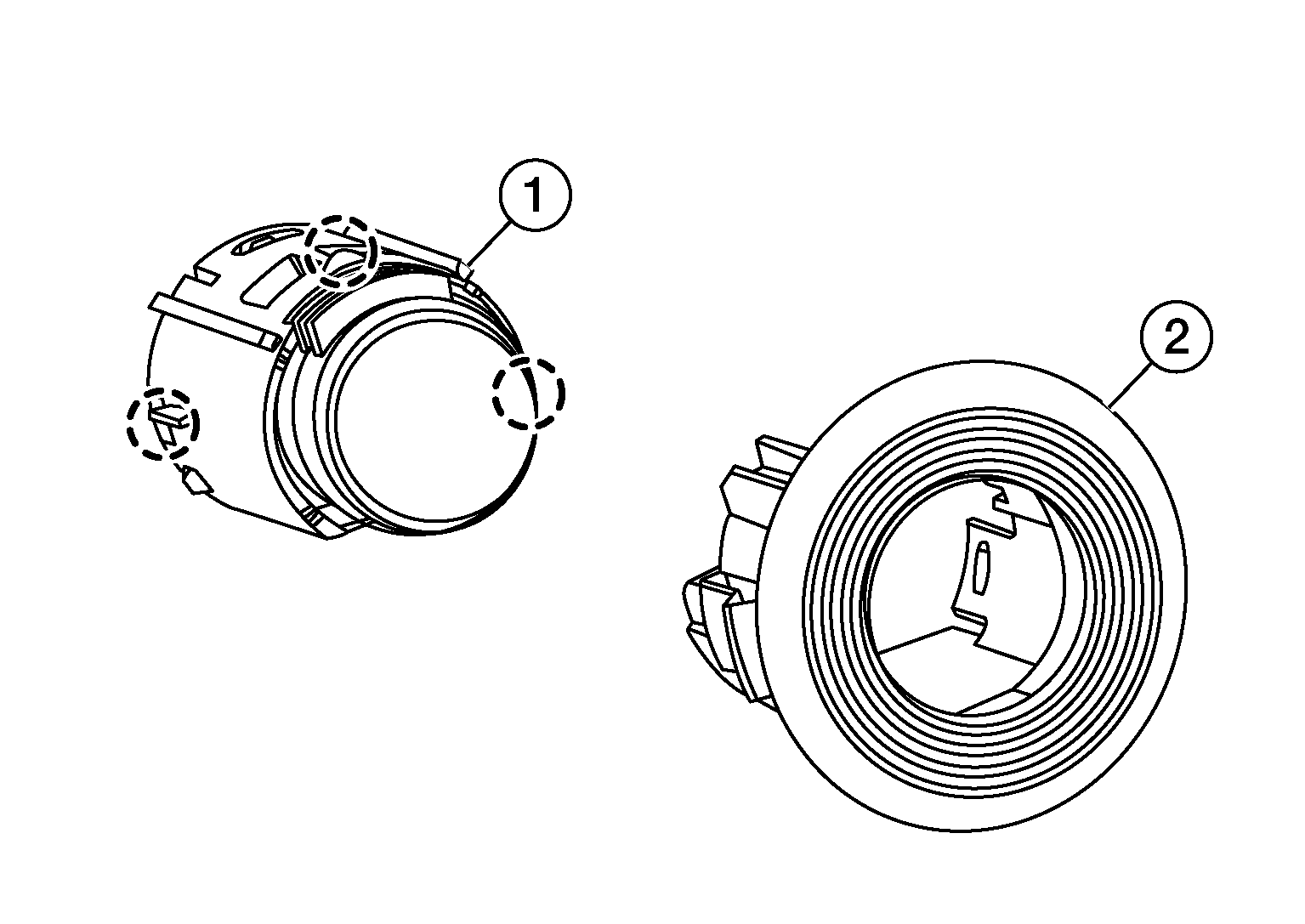

  3. Release the pawl on each side using suitable tool and remove the push-button ignition switch (1) from the NATS antenna amp (2).
    GNSAWKIA2911ZZ-911Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl
