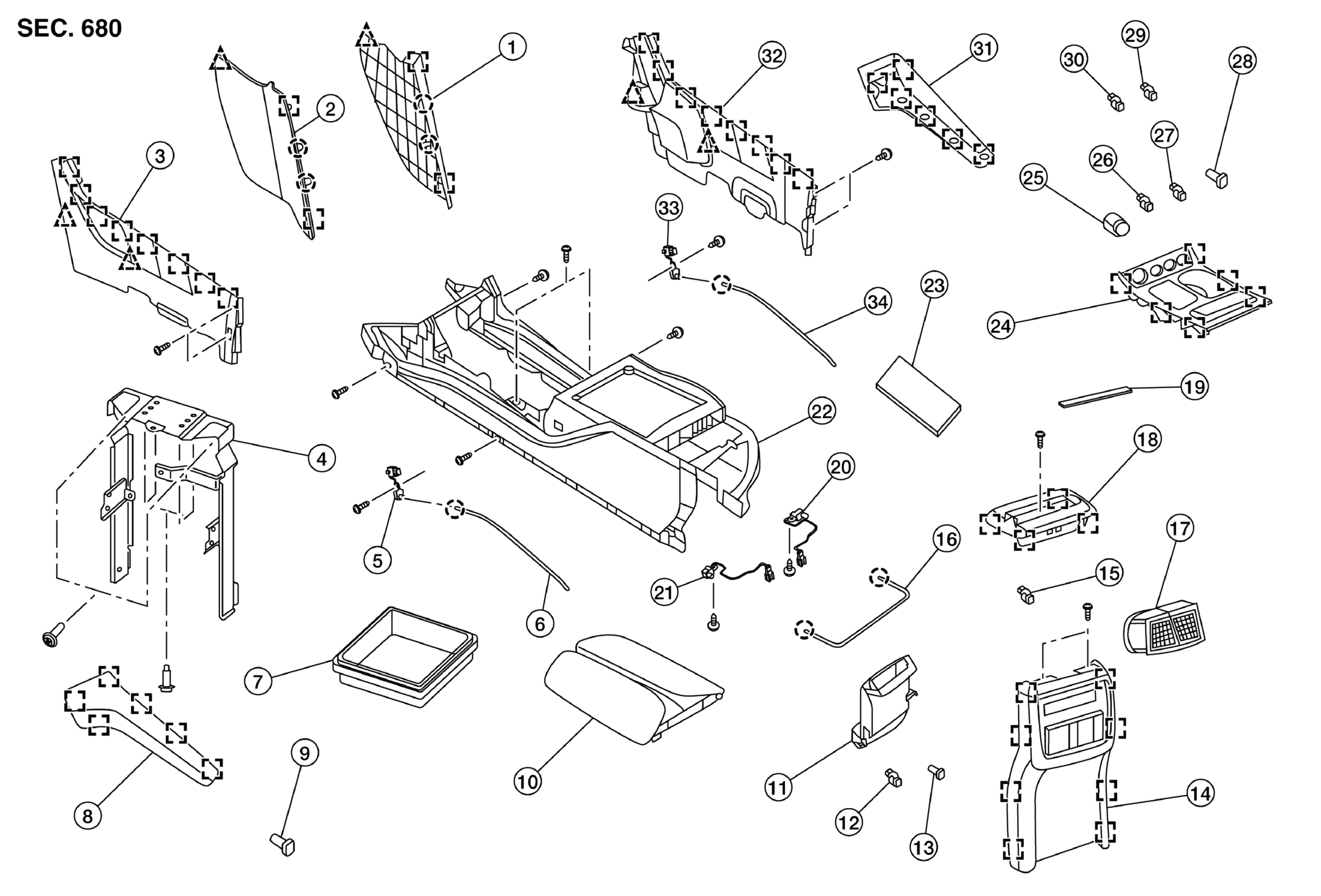

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center console side finisher (RH)	2.	Center console side finisher (LH)	3.	Center console lower side finisher (LH)
4.	Center console reinforcement bracket	5.	Mood lamp [front console LH (if equipped) ]	6.	Mood lamp lens [front console LH (if equipped) ]
7.	Center console bin	8.	Center console upper side finisher (LH)	9.	Rear center ventilator duct
10.	Center console lid	11.	Rear center ventilator duct	12.	2nd row heated seat switch [LH (if equipped) ]
13.	Rear USB interface	14.	Center console rear finisher	15.	2nd row heated seat switch [RH (if equipped) ]
16.	Mood lamp lens [rear console (if equipped) ]	17.	Rear ventilator grille assembly	18.	Center console tray
19.	Center console rear tray mat	20.	Mood lamp [rear console RH (if equipped) ]	21.	Mood lamp [rear console LH (if equipped) ]
22.	Center console assembly	23.	Center console front tray mat	24.	Shift selector finisher
25.	Push-button ignition switch	26.	Front heated seat switch [LH (if equipped) ]	27.	Front heated seat switch [RH (if equipped) ]
28.	Front power socket	29.	Front climate controlled seat switch [RH (if equipped) ]	30.	Front climate controlled seat switch [LH (if equipped) ]
31.	Center console upper side finisher (RH)	32.	Center console lower side finisher (RH)	33.	Mood lamp [front console RH (if equipped) ]
34.	Mood lamp lens [front console RH (if equipped) ]		Pawl		Metal clip
	Clip
