Component Location

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

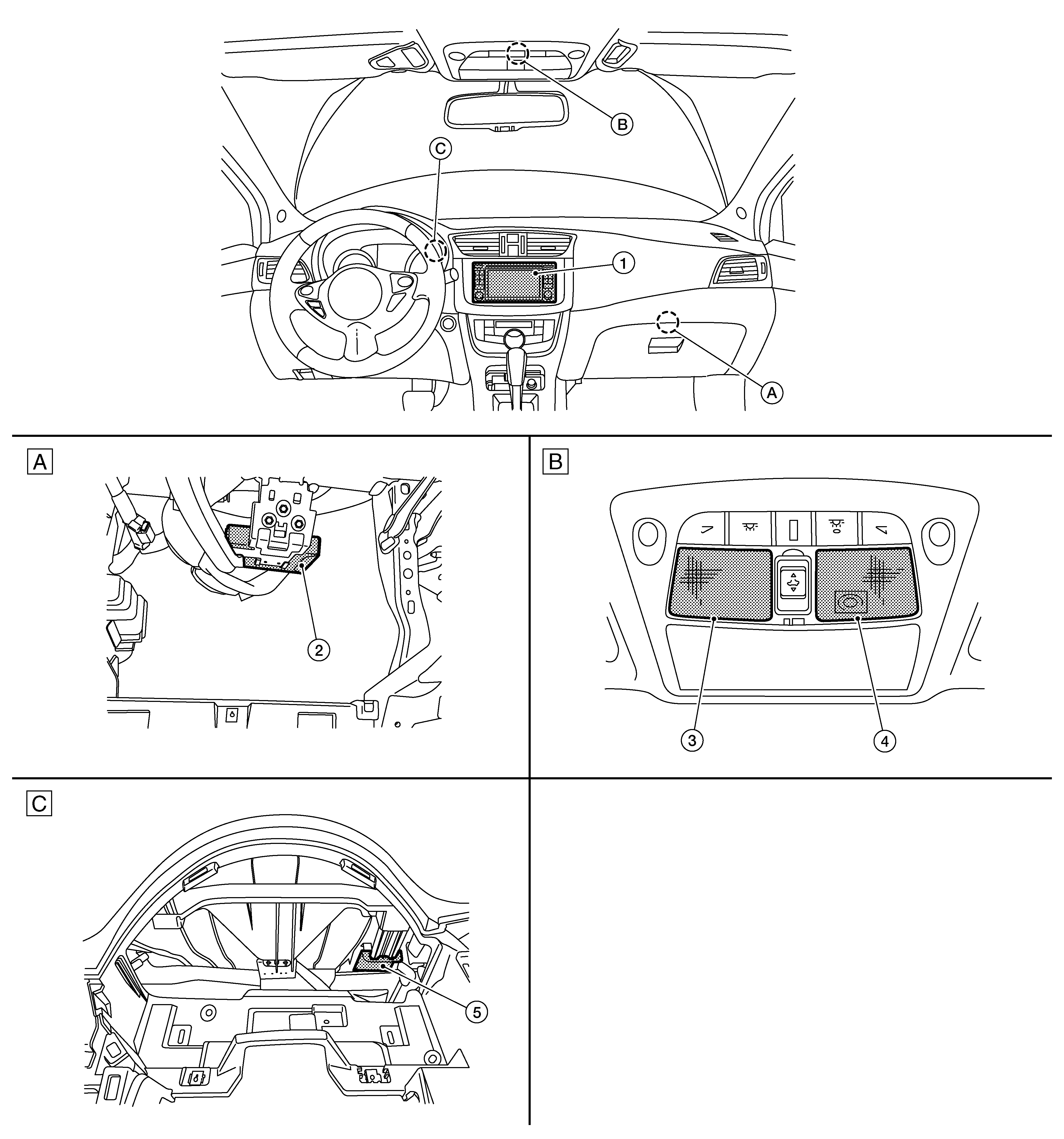

GNSAWNIA4595ZZ-595Courtesy of NISSAN NORTH AMERICA, INC.
A. View with the glove box removed B. Overhead console C. View with the combination meter removed
No. Component Function
1. AV control unit TCU with the signals necessary for telematics is sent and received.
Refer to AV CONTROL UNIT  for detailed installation location.
2. TCU Refer to TCU .
3. Microphone Refer to MICROPHONE .
4. Telematics switch Refer to TELEMATICS SWITCH .
5. TCU antenna
  • Amplifies radio waves received from the GPS satellite and transmits GPS signal to telematics control unit (TCU).
  • Transmits and receives data communication and voice signals for TCU.
  • Power is supplied with TCU activated.
